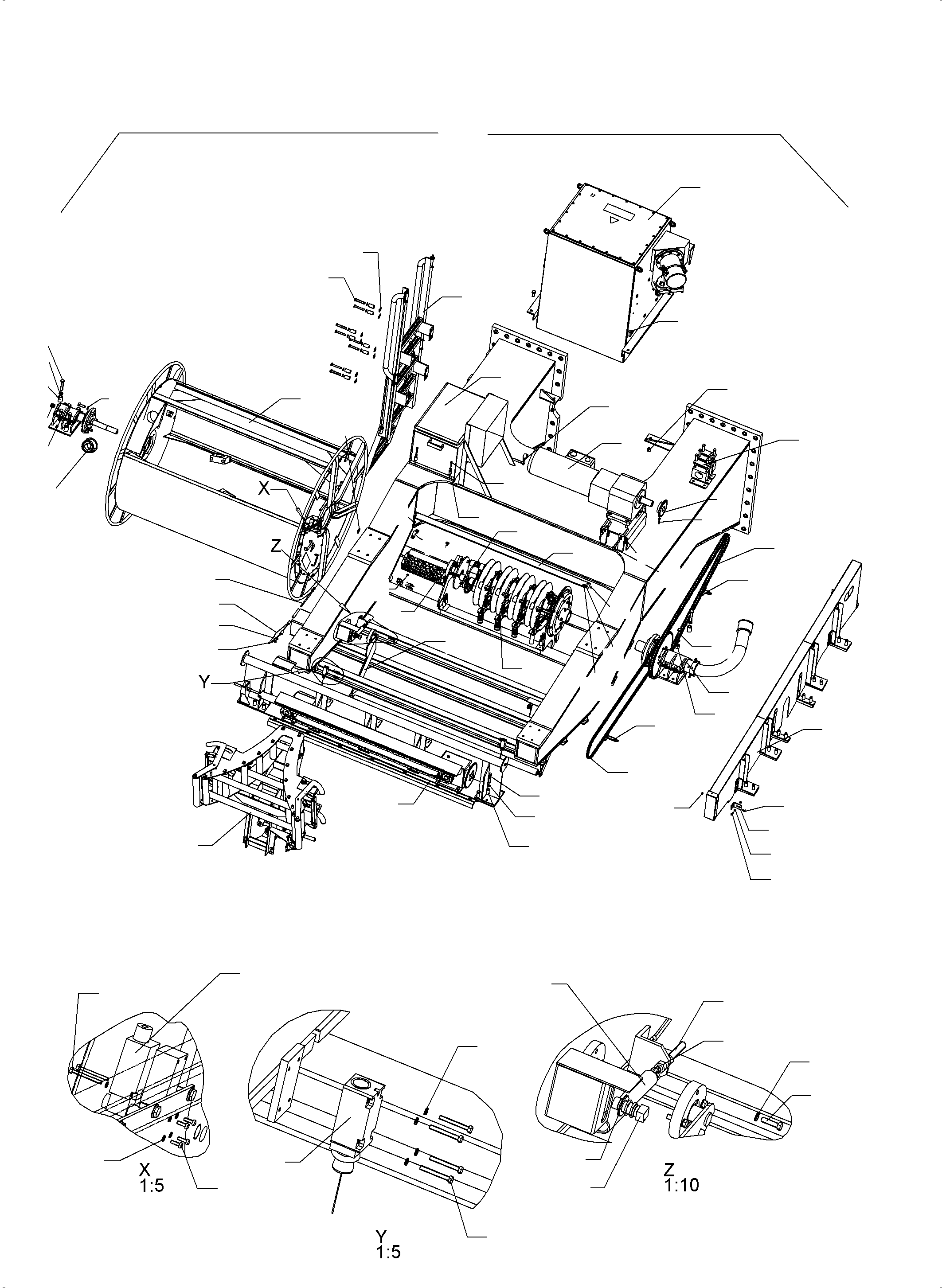

Diagram image 1 of 3

PC5500-6E S/N 15060

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73

PC5500-6E S/N 15060

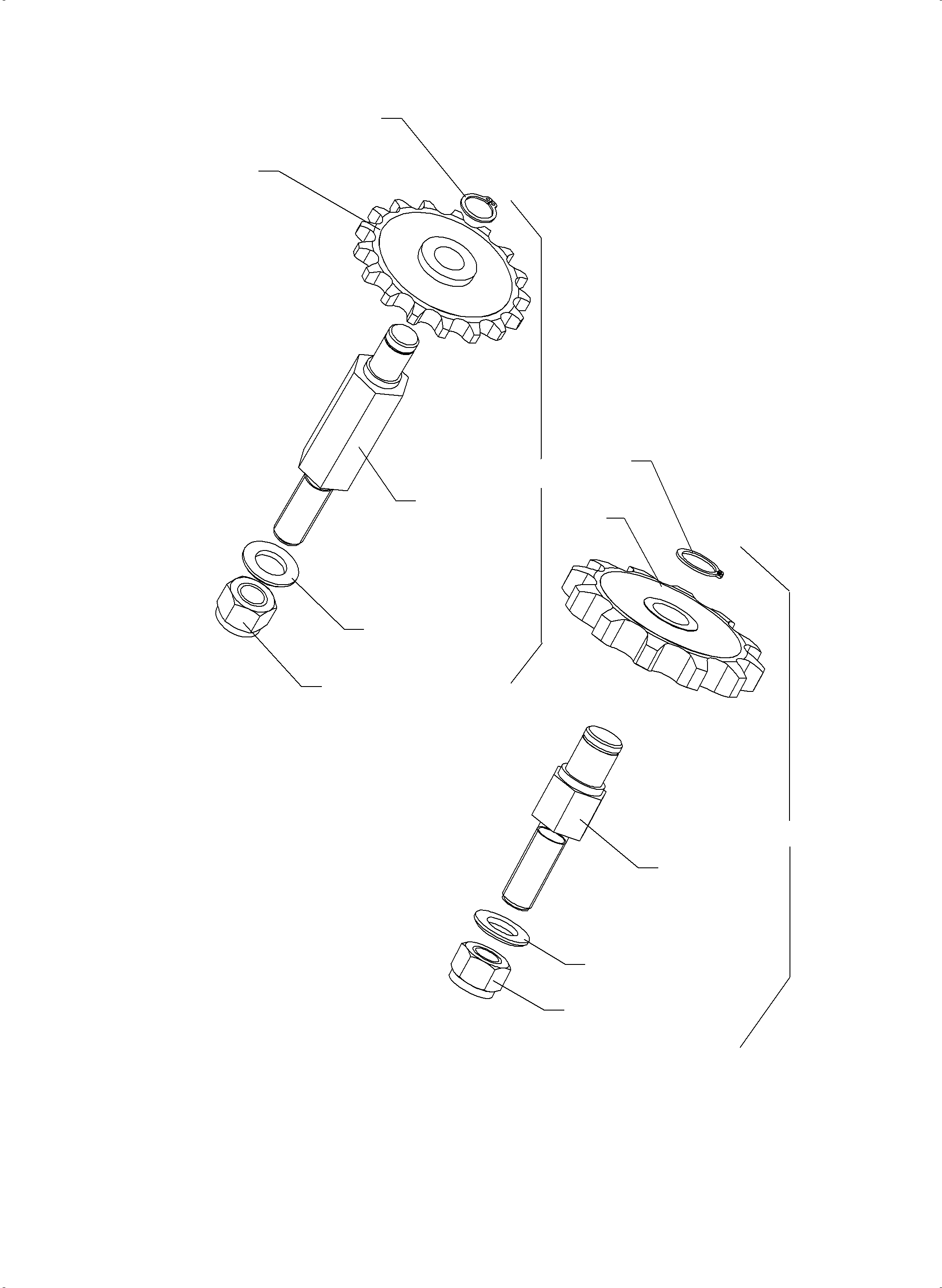

12 13 27 27 74 75 76 76 77 78 79 80

PC5500-6E S/N 15060

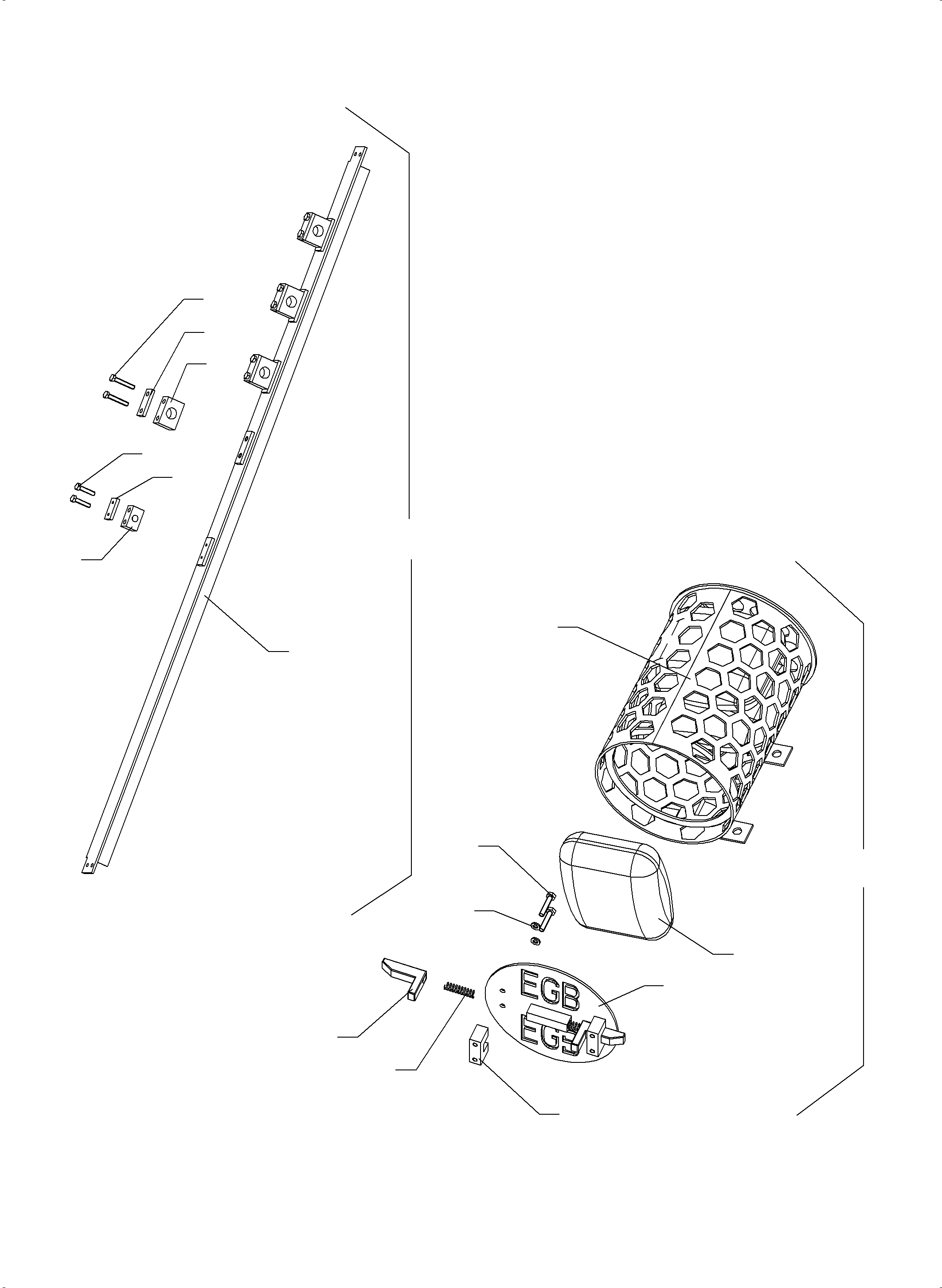

11 14 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95

#	Part Number	Partname	Quantity	Options	Reference
01	943 284 40	Cable drum	1	InternBDB: 70.209/455/5-0000:00 \| InternKon: E70209_455_6_0000_00 / 1
02	943 285 40	Connection box	1	InternBDB: 70.453/1-0000:00 \| InternKon: E70209_455_6_0000_00 / 2	991-0690a
03	796 486 73	Drum assy.	1	InternBDB: 70.209/455/5-1000:00 \| InternKon: E70209_455_6_0000_00 / 3	991-0540c
04	796 516 73	Drum bearing - pinion end assy.	1	InternBDB: 70.209/455/5-2000:00 \| InternKon: E70209_455_6_0000_00 / 4	991-0754a
05	796 517 73	Drum bearing	1	InternBDB: 70.209/455/5-3000:00 \| InternKon: E70209_455_6_0000_00 / 5	991-0686
06	797 518 73	Ring body	1	InternBDB: 70.209/455/5-4100:00 \| InternKon: E70209_455_6_0000_00 / 6	991-0687
07	796 519 73	Collector	1	InternBDB: 70.209/455/4-4300:00 \| InternKon: E70209_455_6_0000_00 / 7	991-0627
08	796 520 73	Guide tube assy.	1	InternBDB: 70.209/455/5-5000:00 \| InternKon: E70209_455_6_0000_00 / 8	991-0757a
09	796 521 73	Chain cover	1	InternBDB: 70.209/455/5-6000:00 \| InternKon: E70209_455_6_0000_00 / 9	991-0758a
10	796 522 73	Reel arr. assy.	1	InternBDB: 70.209/455/5-8000:00 \| InternKon: E70209_455_6_0000_00 / 10	991-0759a
11	793 836 73	Cables for HST	1	InternBDB: 70.209/455/3-1400:00 \| InternKon: E70209_455_6_0000_00 / 11
12	769 332 73	Track adjuster drive assy. 381-501-013	1	InternBDB: 70.209/655/1-0020:00 \| InternKon: E70209_455_6_0000_00 / 12
13	769 331 73	Track adjuster output assy. 381-301-017	1	InternBDB: 70.209/655/5-0010:00 \| InternKon: E70209_455_6_0000_00 / 13
14	794 663 73	Cage	1	InternBDB: 70.209/455/6-0700:00 \| InternKon: E70209_455_6_0000_00 / 14
15	938 774 73	Ladder assy.	1	InternBDB: 70.209/455/4-9000:00 \| InternKon: E70209_455_6_0000_00 / 15	991-0692
16	796 115 73	Cut-off device - cable drum	1	InternBDB: 70.209/455/6-0800:00 \| InternKon: E70209_455_6_0000_00 / 16	991-0762
17	796 515 73	Drive motor with gearbox	1	InternBDB: 70.209/455/6-SBS-160- mit DGV 70 \| InternKon: E70209_455_6_0000_00 / 17
18	796 523 73	Rotor resistor assy. D17	1	InternBDB: 70.209/455/6-Widerstand D17 \| InternKon: E70209_455_6_0000_00 / 18
19	796 554 73	Clamp set	3	InternBDB: RCP1-470 /DIN 3015 T.2 \| InternKon: E70209_455_6_0000_00 / 19
20	794 664 73	Cover assy.	1	InternBDB: 70.209/655/6-0600:00 \| InternKon: E70209_455_6_0000_00 / 20
21	769 095 73	Manual breather	1	InternKon: E70209_455_6_0000_00 / 21
22	607 492 40	Resilient sleeve	4	InternBDB: 10,5 x 25 x 40 WN 341 948 40 \| InternKon: E70209_455_6_0000_00 / 22
23	796 180 73	Position switch	4	InternBDB: Moeller Typ: AT4/11-S/I/F \| InternKon: E70209_455_6_0000_00 / 23
24	518 257 98	Hexagon head bolt	16	InternBDB: M 5 X 40 / ISO 4017 \| InternKon: E70209_455_6_0000_00 / 24
25	907 479 40	Cable union	1	InternBDB: BVNV-M329 M 32 x 1,5 \| InternKon: E70209_455_6_0000_00 / 25
26	510 730 98	Resilient sleeve	16	InternBDB: 17x30x55 \| InternKon: E70209_455_6_0000_00 / 26
27	340 469 99	Washer	16	InternBDB: B 17 / DIN 125 \| InternKon: E70209_455_6_0000_00 / 27
28	308 639 99	Hexagon head bolt	12	InternBDB: M 16 X 110 \| InternKon: E70209_455_6_0000_00 / 28
29	761 390 73	Eyebolt with right-hand thread	2	InternBDB: 70.209/655/1-0400:03 / DIN 444-AM 16x180 \| InternKon: E70209_455_6_0000_00 / 29
30	332 336 99	Nut	10	InternBDB: M16 / I SO 4032 \| InternKon: E70209_455_6_0000_00 / 30
31	307 754 99	Hexagon head bolt	4	InternBDB: M 8 X 25 / ISO 4017 \| InternKon: E70209_455_6_0000_00 / 31
32	794 665 73	Hinge bolt	1	InternBDB: 70.209/655/6-0000:02 \| InternKon: E70209_455_6_0000_00 / 32
33	340 652 99	Washer	2	InternBDB: B 13 / DIN 125 \| InternKon: E70209_455_6_0000_00 / 33
34	512 467 98	Nut	2	InternBDB: M 12 / DIN 980 \| InternKon: E70209_455_6_0000_00 / 34
35	794 666 73	Angle	1	InternBDB: 70.209/655/1-6000:06 \| InternKon: E70209_455_6_0000_00 / 35
36	340 465 99	Washer	5	InternBDB: B 10.5 / DIN 125 \| InternKon: E70209_455_6_0000_00 / 36
37	307 779 99	Hexagon head bolt	1	InternBDB: M 10 X 30 / ISO 4017 \| InternKon: E70209_455_6_0000_00 / 37
38	307 775 99	Hexagon head bolt	1	InternBDB: M 10 X 20 / ISO 4017 \| InternKon: E70209_455_6_0000_00 / 38
39	512 476 98	Nut	2	InternBDB: M 10 / DIN 982 \| InternKon: E70209_455_6_0000_00 / 39
40	794 291 73	Draw spring	2	InternBDB: 70.209/655/9-0800:03 \| InternKon: E70209_455_6_0000_00 / 40
41	796 179 73	Switch	2	InternBDB: Ni20U-EG30SK-VP4X \| InternKon: E70209_455_6_0000_00 / 41
42	796 098 73	Cable union	1	InternBDB: RS125 RS00001251023 \| InternKon: E70209_455_6_0000_00 / 42
43	518 255 98	Resilient sleeve	2	InternBDB: 21x40x30 /WN34194840 \| InternKon: E70209_455_6_0000_00 / 43
44	307 853 99	Hexagon head bolt	6	InternBDB: M 20 X 100 \| InternKon: E70209_455_6_0000_00 / 44
45	510 732 98	Resilient sleeve	6	InternBDB: 21x40x60 \| InternKon: E70209_455_6_0000_00 / 45
46	340 470 99	Washer	8	InternBDB: B 21 / DIN 125 \| InternKon: E70209_455_6_0000_00 / 46
47	308 672 99	Hexagon head bolt	6	InternBDB: M 20 X 120 \| InternKon: E70209_455_6_0000_00 / 47
48	307 665 99	Hexagon head bolt	16	InternBDB: M 20 X 60 \| InternKon: E70209_455_6_0000_00 / 48
49	343 120 99	Lock washer	12	InternBDB: B 20 / DIN 127 \| InternKon: E70209_455_6_0000_00 / 49
50	340 472 99	Washer	4	InternBDB: B 31 / DIN 125 \| InternKon: E70209_455_6_0000_00 / 50
51	764 584 73	Safety switch assy.	2	InternBDB: GC-U1 VT \| InternKon: E70209_455_6_0000_00 / 51
52	308 246 99	Hexagon head bolt	4	InternBDB: M 4 X 40 / ISO 4017 \| InternKon: E70209_455_6_0000_00 / 52
53	318 044 99	Cylinder head screw	8	InternBDB: M 4 X 12 / ISO 1207 \| InternKon: E70209_455_6_0000_00 / 53
54	543 092 99	Washer	12	InternBDB: B 4 / DIN 127 \| InternKon: E70209_455_6_0000_00 / 54
55	500 853 98	Hexagon head bolt	4	InternBDB: M 10 X 30 / ISO 4017 -A2 \| InternKon: E70209_455_6_0000_00 / 55
56	332 197 99	Nut	4	InternBDB: M 10 / ISO 4032 -A2 \| InternKon: E70209_455_6_0000_00 / 56
57	342 548 99	Circlip	1	InternBDB: 48 X 1.75 / DIN 471 \| InternKon: E70209_455_6_0000_00 / 57
58	308 579 99	Hexagon head bolt	4	InternBDB: M 10 X 60 / ISO 4017 \| InternKon: E70209_455_6_0000_00 / 58
59	512 477 98	Nut	8	InternBDB: M 20 \| InternKon: E70209_455_6_0000_00 / 59
60	307 807 99	Hexagon head bolt	8	InternBDB: M 12 X 45 / ISO 4017 \| InternKon: E70209_455_6_0000_00 / 60
61	343 113 99	Lock washer	8	InternBDB: B12 / DIN 127 \| InternKon: E70209_455_6_0000_00 / 61
62	340 486 99	Washer	4	InternBDB: B 8.4 / DIN 125 \| InternKon: E70209_455_6_0000_00 / 62
63	512 557 98	Nut	4	InternBDB: M 8 / DIN 982 \| InternKon: E70209_455_6_0000_00 / 63
64	511 313 98	Washer	4	InternBDB: ST 21 / DIN 7349 \| InternKon: E70209_455_6_0000_00 / 64
65	341 211 99	Wedge washer	8	InternBDB: 18 / DIN 434 \| InternKon: E70209_455_6_0000_00 / 65
66	502 390 98	Hexagon head bolt	8	InternBDB: M 16 X 100 \| InternKon: E70209_455_6_0000_00 / 66
67	794 667 73	Clamp set	2	InternBDB: 70.209/655/6-0710:04 \| InternKon: E70209_455_6_0000_00 / 67
68	343 105 99	Lock washer	16	InternBDB: A5 /Din127 \| InternKon: E70209_455_6_0000_00 / 68
69	765 180 73	Pinion WMH 201-501-021	1	InternBDB: 70.209/655/1-0120:03 \| InternKon: E70209_455_6_0000_00 / 69
70	516 097 98	Threaded pin	1	InternBDB: M 10 X 40 / DIN 916 \| InternKon: E70209_455_6_0000_00 / 70
71	795 526 73	Chain WMH 300-501-000	1	InternBDB: 70.209/455/4-0120:01 \| InternKon: E70209_455_6_0000_00 / 71
72	795 525 73	Chain WMH 300-301-000	1	InternBDB: 70.209/455/4-0110:01 \| InternKon: E70209_455_6_0000_00 / 72
73	307 865 99	Hexagon head bolt	4	InternBDB: M 16 X 120 \| InternKon: E70209_455_6_0000_00 / 73
74	765 183 73	Take-up gear WMH 381-301-017	1	InternBDB: 70.209/655/1-0010:02 \| InternKon: E70209_455_6_0000_00 / 74
75	342 516 99	Circlip	1	InternBDB: 16 X 1 / DIN 471 A 2 \| InternKon: E70209_455_6_0000_00 / 75
76	512 465 98	Nut	2	InternBDB: M 16 / DIN 980 \| InternKon: E70209_455_6_0000_00 / 76
77	794 668 73	Track adjuster SW 27	1	InternBDB: 70.209/655/5-0010:01 \| InternKon: E70209_455_6_0000_00 / 77
78	765 176 73	Track adjuster SW 27	1	InternBDB: 70.209/655/1-0020:01 \| InternKon: E70209_455_6_0000_00 / 78
79	342 520 99	Take-up gear WMH 381-501-012	1	InternBDB: 70.209/655/1-0020:02 \| InternKon: E70209_455_6_0000_00 / 79
80	342 520 99	Circlip	1	InternBDB: 20 X 1.2 / DIN 471 \| InternKon: E70209_455_6_0000_00 / 80
81	769 244 73	Angle	1	InternBDB: 70.209/655/1-1400:01 \| InternKon: E70209_455_6_0000_00 / 81
82	504 780 98	Clamp set	3	InternBDB: RCP-228 \| InternKon: E70209_455_6_0000_00 / 82
83	534 004 99	Cover plate	4	InternBDB: DP-C2 \| InternKon: E70209_455_6_0000_00 / 83
84	308 579 99	Hexagon head bolt	6	InternBDB: M 10 X 60 / ISO 4017 \| InternKon: E70209_455_6_0000_00 / 84
85	504 817 98	Clamp set	1	InternBDB: RCP-116 \| InternKon: E70209_455_6_0000_00 / 85
86	534 001 99	Cover plate	1	InternBDB: DP-C1 \| InternKon: E70209_455_6_0000_00 / 86
87	307 782 99	Hexagon head bolt	2	InternBDB: M 10 X 45 / ISO 4017 \| InternKon: E70209_455_6_0000_00 / 87
88	794 671 73	Case	1	InternBDB: 70.209/455/6-0710:00 \| InternKon: E70209_455_6_0000_00 / 88
89	794 672 73	Cover assy.	1	InternBDB: 70.209/655/5-0720:00 \| InternKon: E70209_455_6_0000_00 / 89
90	794 673 73	Slider	2	InternBDB: 70.209/655/6-0700:01 \| InternKon: E70209_455_6_0000_00 / 90
91	794 679 73	Locking wedge	2	InternBDB: 70.209/655/6-0700:04 \| InternKon: E70209_455_6_0000_00 / 91
92	794 675 73	Desiccant	3	InternBDB: 16 DIN \| InternKon: E70209_455_6_0000_00 / 92
93	794 676 73	Compression spring	2	InternBDB: VD-207K-06 \| InternKon: E70209_455_6_0000_00 / 93
94	343 106 99	Lock washer	4	InternBDB: DIN 127 A2 - 6 \| InternKon: E70209_455_6_0000_00 / 94
95	307 410 99	Hexagon head bolt	4	InternBDB: ISO 4017 - A2 - M 6 X 30 \| InternKon: E70209_455_6_0000_00 / 95
\|$96			-2
\|$97			-2
\|$98			-2
\|$99			-2
\|$100			-2
\|$101			-2
\|$102			-2
\|$103			-2
\|$104			-2
\|$105			-2

Komatsu PC5500-6E S/N 15060 parts catalog PDF

CABLE DRUM (991-0751a) in PC5500-6E S/N 15060. Diagram image and parts list.
