#	Part Number	Partname	Quantity	Options
01	796 140 73	Reel arr.	1	InternBDB: 70.209/455/5-8100:00 \| InternKon: E70209_455_6_8000_00 / 1
02	769 296 73	Retainer for roller, lower	1	InternBDB: 70.209/655/1-8150:00 \| InternKon: E70209_455_6_8000_00 / 2
03	796 159 73	Cam assy.	1	InternBDB: 70.209/655/9/1-8400:00 \| InternKon: E70209_455_6_8000_00 / 3
04	765 186 73	Guide roller assy.	4	InternBDB: 70.209/655/1-8110:00 \| InternKon: E70209_455_6_8000_00 / 4
05	765 187 73	Guide roller adjustable assy.	5	InternBDB: 70.209/655/8-8120:00 \| InternKon: E70209_455_6_8000_00 / 5
06	796 157 73	Swivel arm	2	InternBDB: 70.209/655/9/1-8200:00 \| InternKon: E70209_455_6_8000_00 / 6
07	796 158 73	Swivel arm	2	InternBDB: 70.209/655/9/1-8300:00 \| InternKon: E70209_455_6_8000_00 / 7
08	796 170 73	Top roller 63,5 x 220	2	InternKon: E70209_455_6_8000_00 / 8
09	796 171 73	Top roller 63,5 x 265	2	InternKon: E70209_455_6_8000_00 / 9
10	796 172 73	Top roller 63,5 x 275	2	InternKon: E70209_455_6_8000_00 / 10
11	805 329 73	Top roller 63,5 x 330	2	InternKon: E70209_455_6_8000_00 / 11
12	796 173 73	Top roller 63,5 x 380	2	InternKon: E70209_455_6_8000_00 / 12
13	796 174 73	Top roller 63,5 x 430	2	InternKon: E70209_455_6_8000_00 / 13
14	796 175 73	Top roller 63,5 x 475	2	InternKon: E70209_455_6_8000_00 / 14
15	796 176 73	Top roller 63,5 x 525	2	InternKon: E70209_455_6_8000_00 / 15
16	796 177 73	Top roller 63,5 x 560	1	InternKon: E70209_455_6_8000_00 / 16
17	796 178 73	Top roller SPK 63,5 x 1070	2	InternKon: E70209_455_6_8000_00 / 17
18	765 192 73	Pin SW 30	2	InternBDB: 70.209/655/1-8100:18 \| InternKon: E70209_455_6_8000_00 / 18
19	796 179 73	Inductive sensor	4	InternBDB: Ni20U-EG30SK-VP4X (Wechsler) \| InternKon: E70209_455_6_8000_00 / 19
20	796 156 73	Sensor plate, adjustable	1	InternBDB: 70.209/655/9/1-8000:03 \| InternKon: E70209_455_6_8000_00 / 20
21	796 155 73	Adjusting plate	2	InternBDB: 70.209/655/9/1-8000:01 \| InternKon: E70209_455_6_8000_00 / 21
22	340 469 99	Washer	4	InternBDB: B 17 / DIN 125 \| InternKon: E70209_455_6_8000_00 / 22
23	342 520 99	Circlip	4	InternBDB: 20 X 1.2 / DIN 471 \| InternKon: E70209_455_6_8000_00 / 23
24	368 164 99	Roller bearing	4	InternBDB: 6004-2RS / DIN 625 \| InternKon: E70209_455_6_8000_00 / 24
25	342 642 99	Circlip	4	InternBDB: 42 X 1.75 / DIN 472 \| InternKon: E70209_455_6_8000_00 / 25
26	207 593 40	Bolt	4	InternBDB: M 8 X 25 / ISO 4017 \| InternKon: E70209_455_6_8000_00 / 26
27	343 094 99	Lock washer	4	InternBDB: B 8 / DIN 127 \| InternKon: E70209_455_6_8000_00 / 27
28	340 464 99	Washer	2	InternBDB: B 8.4 / DIN 125 \| InternKon: E70209_455_6_8000_00 / 28
29	307 762 99	Bolt	4	InternBDB: M 8 X 60 / ISO 4017 \| InternKon: E70209_455_6_8000_00 / 29
30	332 332 99	Nut	8	InternBDB: M 8 / ISO 4032 \| InternKon: E70209_455_6_8000_00 / 30
31	343 113 99	Lock washer	38	InternBDB: B 12 / DIN 127 \| InternKon: E70209_455_6_8000_00 / 31
32	307 802 99	Bolt	4	InternBDB: M 12 X 25 / ISO 4017 \| InternKon: E70209_455_6_8000_00 / 32
33	307 804 99	Bolt	34	InternBDB: M 12 X 30 / ISO 4017 \| InternKon: E70209_455_6_8000_00 / 33
34	340 470 99	Washer	2	InternBDB: B 21 / DIN 125 \| InternKon: E70209_455_6_8000_00 / 34
35	343 117 99	Lock washer	11	InternBDB: B 20 / DIN 127 \| InternKon: E70209_455_6_8000_00 / 35
36	332 338 99	Nut	11	InternBDB: M 20 / ISO 4032 \| InternKon: E70209_455_6_8000_00 / 36
37	512 466 98	Nut	5	InternBDB: M 16 / DIN 980 \| InternKon: E70209_455_6_8000_00 / 37
38	304 467 99	Washer	4	InternBDB: B 13 / DIN 125 \| InternKon: E70209_455_6_8000_00 / 38
39	307 808 99	Bolt	4	InternBDB: M12 X 50 / ISO 4017 \| InternKon: E70209_455_6_8000_00 / 39
40	512 467 98	Nut	4	InternBDB: M 12 / DIN 980 \| InternKon: E70209_455_6_8000_00 / 40
41	307 824 99	Bolt	4	InternBDB: M16 X 40 / ISO 4017 \| InternKon: E70209_455_6_8000_00 / 41
42	340 472 99	Washer	8	InternBDB: B 31 / DIN 125 \| InternKon: E70209_455_6_8000_00 / 42
43	341 309 99	I-washer	24	InternBDB: 14 / DIN 435 \| InternKon: E70209_455_6_8000_00 / 43
44	796 181 73	Draw spring	8	InternBDB: Z-155I \| InternKon: E70209_455_6_8000_00 / 44
45	769 302 73	Draw bar	1	InternBDB: 70.209/655/1-8320:00 \| InternKon: E70209_455_6_8000_00 / 45
46	769 309 73	Pin	1	InternBDB: 70.209/655/1-8330:00 \| InternKon: E70209_455_6_8000_00 / 46
47	796 160 73	Chain joining piece	1	InternBDB: 70.209/655/9/1-8410:00 \| InternKon: E70209_455_6_8000_00 / 47
48	796 163 73	Angle	1	InternBDB: 70.222/4-4310:02 \| InternKon: E70209_455_6_8000_00 / 48
49	796 164 73	Chain pin	2	InternBDB: 70.222/4-4310:03 \| InternKon: E70209_455_6_8000_00 / 49
50	796 161 73	Sensor plate	1	InternBDB: 70.209/655/9/1-8410:04 \| InternKon: E70209_455_6_8000_00 / 50
51	769 304 73	Bushing	1	InternBDB: 70.209/655/1-8300:01 \| InternKon: E70209_455_6_8000_00 / 51
52	341 404 99	Supporting disc	11	InternBDB: S 25 X 35 / DIN 988 \| InternKon: E70209_455_6_8000_00 / 52
53	769 308 73	Bottom roller	1	InternBDB: LR 209 NPPU \| InternKon: E70209_455_6_8000_00 / 53
54	769 307 73	Bushing	2	InternBDB: PAP 25 25 P10 Ia \| InternKon: E70209_455_6_8000_00 / 54
55	342 525 99	Circlip	10	InternBDB: 25 X 1.2 / DIN 471 \| InternKon: E70209_455_6_8000_00 / 55
56	769 306 73	Trestle	2	InternBDB: SAO 08/GNE 40 KRRB \| InternKon: E70209_455_6_8000_00 / 56
57	769 305 73	Tension bearing	2	InternBDB: GRAE 40 NPPB \| InternKon: E70209_455_6_8000_00 / 57
58	307 828 99	Bolt	1	InternBDB: M 16 X 60 / ISO 4017 \| InternKon: E70209_455_6_8000_00 / 58
59	350 567 99	Grease nipple	2	InternBDB: DIN 71412 - A 1/8 \| InternKon: E70209_455_6_8000_00 / 59
60	769 297 73	Axle pin SW 30	4	InternBDB: 70.209/655/1-8110:02 \| InternKon: E70209_455_6_8000_00 / 60
61	769 298 73	Axle pin SW 30	5	InternBDB: 70.209/655/1-8120:01 \| InternKon: E70209_455_6_8000_00 / 61
62	368 236 99	Roller bearing	18	InternBDB: 6205 - 2 RS /625 \| InternKon: E70209_455_6_8000_00 / 62
63	769 299 73	Spacer	9	InternBDB: 70.209/655/1-8110:03 \| InternKon: E70209_455_6_8000_00 / 63
64	342 651 99	Circlip	9	InternBDB: 52x2 /472 \| InternKon: E70209_455_6_8000_00 / 64
65	769 300 73	Sheave body	9	InternBDB: 70.209/655/1-8110:01 \| InternKon: E70209_455_6_8000_00 / 65
100	796 522 73	Reel arrangement assy.	-2	InternBDB: 70.209/455/6-8000:00 \| InternKon: 70.209/455/6-0000:00 / 10

Komatsu PC5500-6E S/N 15060 parts catalog PDF

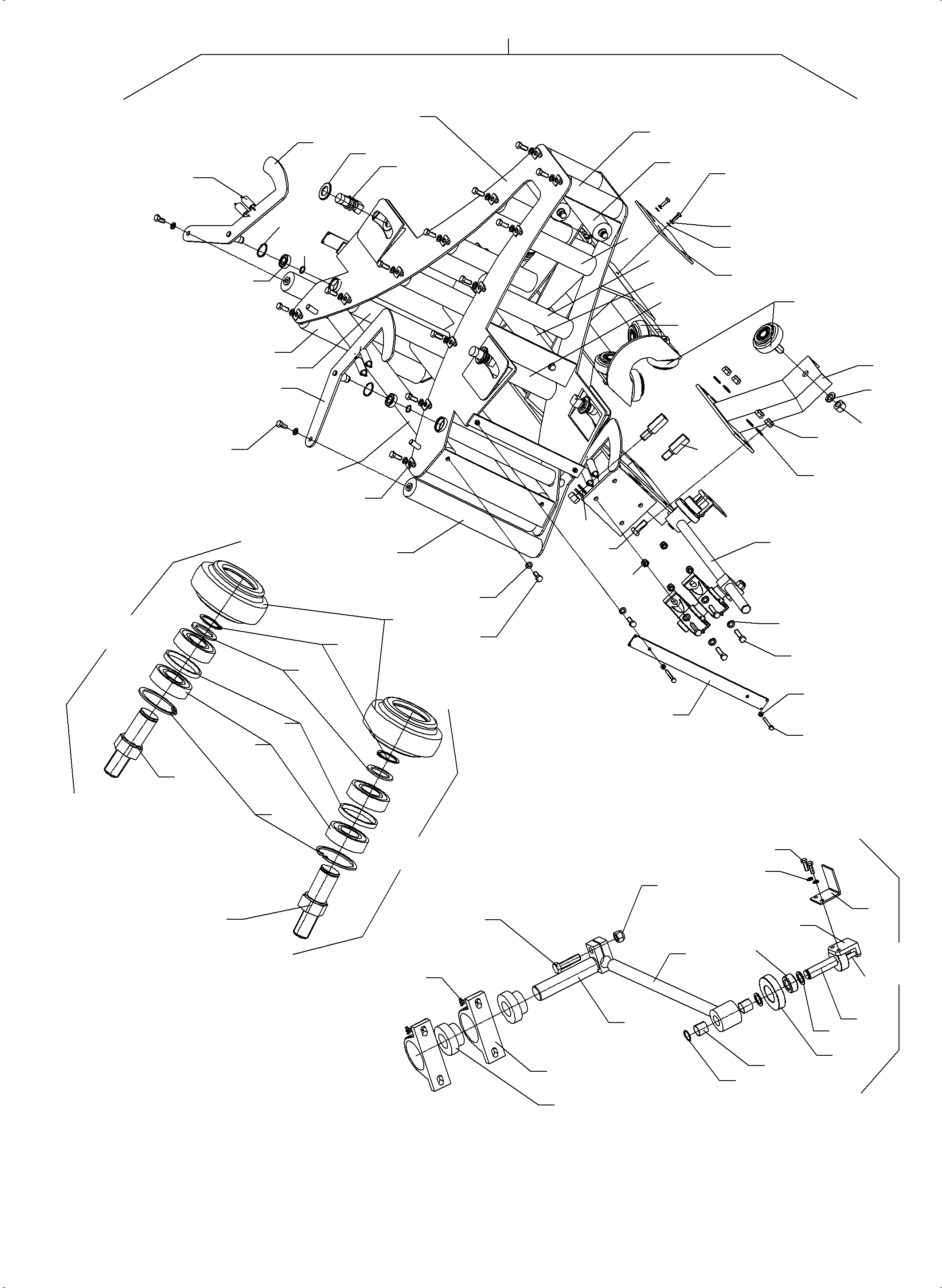

REEL ARR. (991-0759a) in PC5500-6E S/N 15060. Diagram image and parts list.
