PC3000-6E S/N 06262

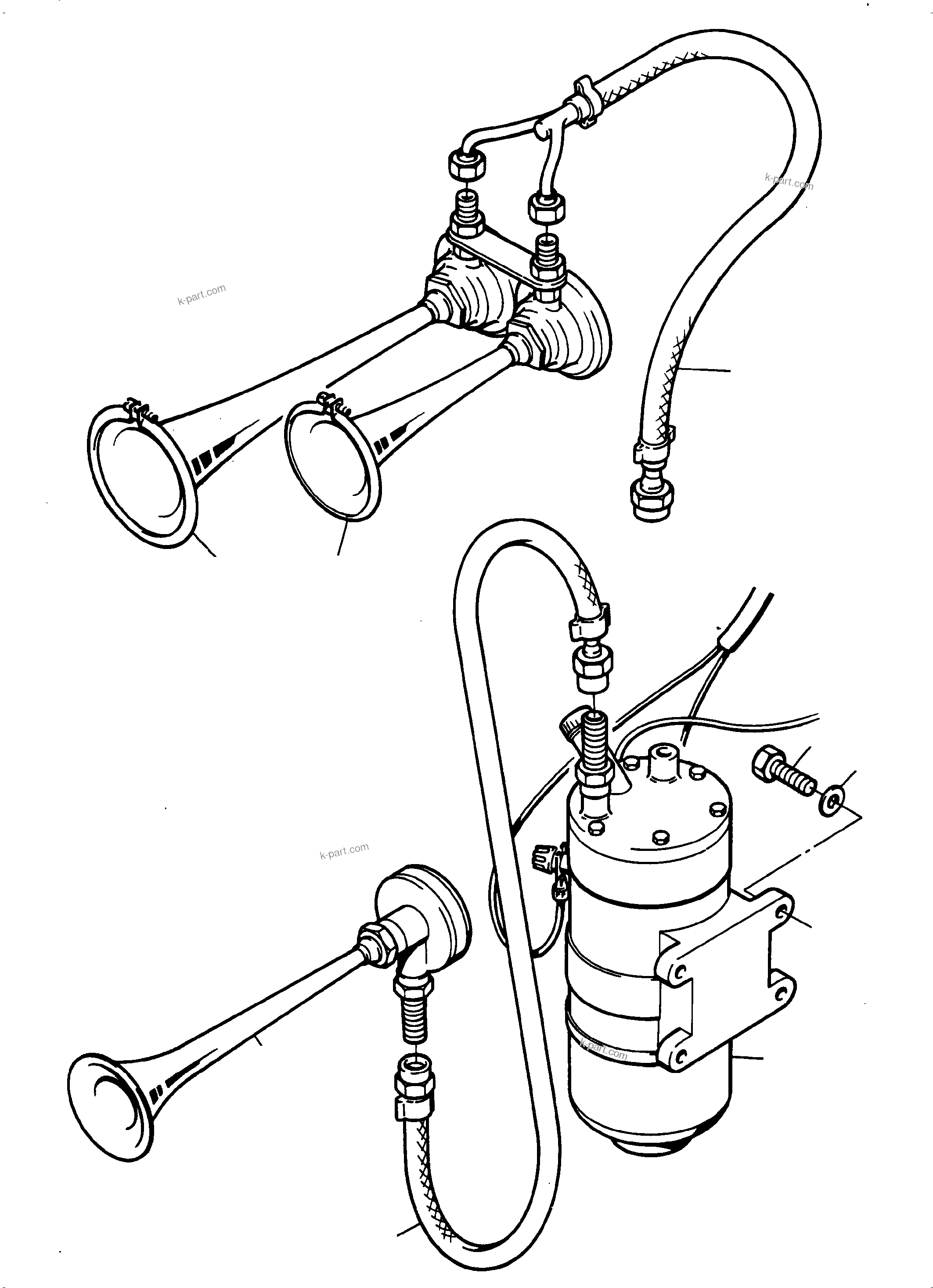

Komatsu parts book diagram for PC3000-6E S/N 06262: HORN, ILLUMINATION

? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	256 886 40	Compressor-single ton-horn consist. of fig.-no: 03-05 440Hz	1	InternBDB: Fa.Martin 2090 GM 440 Hz/24 V \| InternKon: 894 087 40 / 28
	?	270 960 40	Compressor-two ton-horn consist. of fig.-no: 05-08 466/587Hz	1	InternBDB: Fa.Martin 2092 GM 466/587 Hz 24 V
	?	966 953	Acoustic funnel 440Hz	1	InternBDB: 2510.04
	?	966 954	Hose 1000 lg.	1	InternBDB: 2561.03
	?	966 955	Compressor	1	InternBDB: fьr 2090 GM
	?	966 956	Acoustic funnel 466Hz	1	InternBDB: 2503.04
	?	966 957	Acoustic funnel 587Hz	1	InternBDB: 2502.04
	?	966 958	Hose 1000 lg.	1	InternBDB: 2566.03
	?	604 289 40	Compressor-single ton-horn consist. of fig.-no: 04,05,12 880Hz	1	InternBDB: Fa.Martin 2091 GM 880 Hz/24 V \| InternKon: 894 087 40 / 164
	?	307 752 99	Screw	4	InternBDB: M8x20 /933
	?	340 507 99	Washer	4	InternBDB: 8,4 /125
	?	766 970 73	Acoustic funnel 880Hz	1	InternBDB: 2530.04

Komatsu PC3000-6E S/N 06262 parts catalog PDF

HORN, ILLUMINATION (113-2150) in PC3000-6E S/N 06262. Diagram image and parts list.
