PC3000-6E S/N 06262

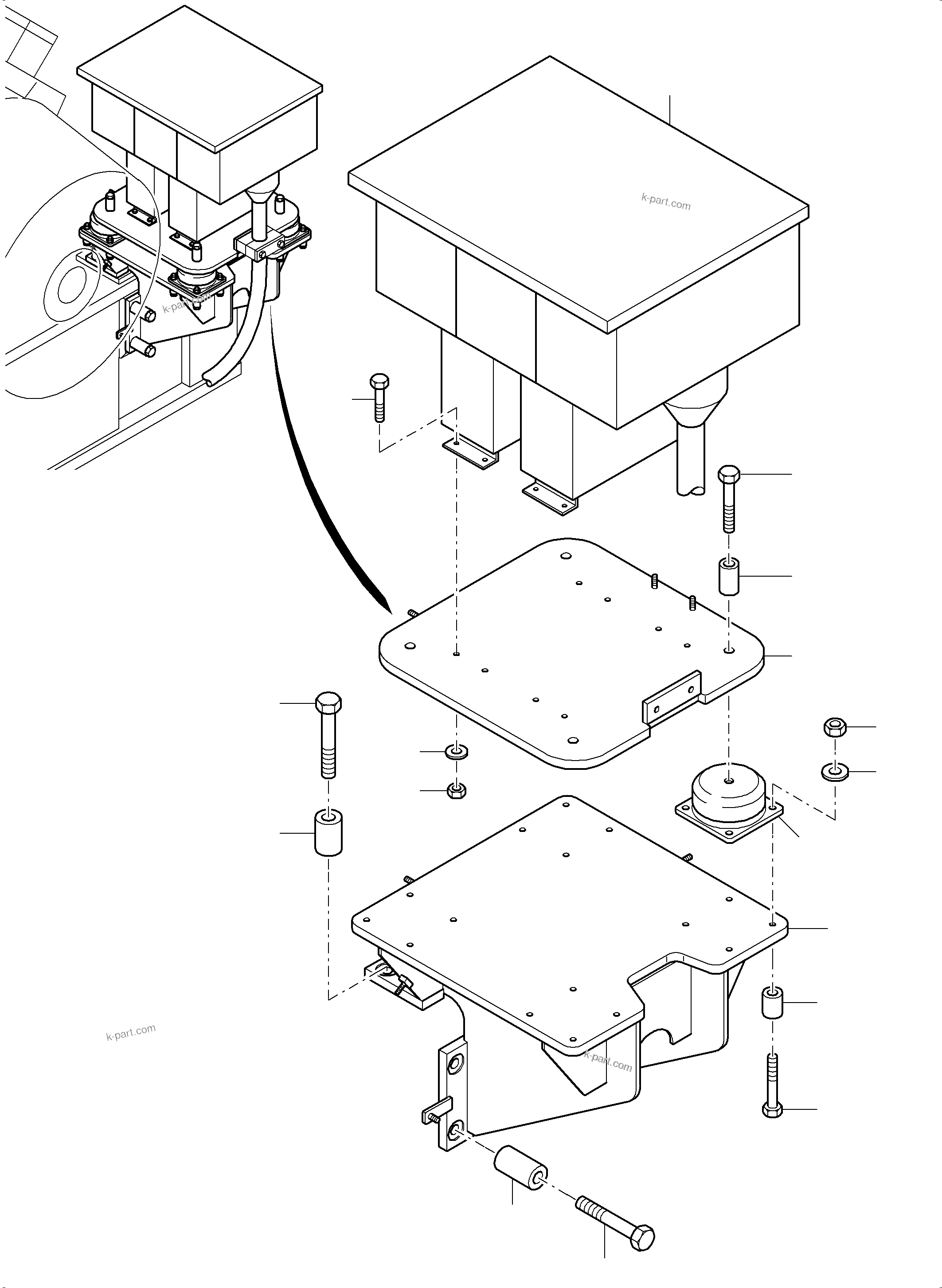

Komatsu parts book diagram for PC3000-6E S/N 06262: CAPACITOR ARR.

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	947 322 40	Capacitor	1	InternBDB: TL /Roederstein \| InternKon: 946 491 40 / 5
	?	939 243 40	Plate	1	InternKon: 946 051 40 / 2
	?	896 741 40	Shock absorber	4	InternBDB: Stop-Choc 530642-45 \| InternKon: 946 051 40 / 3
	?	308 414 99	Bolt	8	InternBDB: M20x130 /931 \| InternKon: 946 051 40 / 4
	?	510 732 98	Resilient sleeve 21/40x60	4	InternBDB: WN 341 948 40 \| InternKon: 946 051 40 / 5
	?	510 727 98	Resilient sleeve 21/40x75	4	InternBDB: WN 341 948 40 \| InternKon: 946 051 40 / 6
	?	308 638 99	Bolt	4	InternBDB: M16x100 /931 \| InternKon: 946 051 40 / 7
	?	510 733 98	Resilient sleeve 17/30x50	4	InternBDB: WN 341 948 40 \| InternKon: 946 051 40 / 8
	?	308 610 99	Bolt	16	InternBDB: M12x80 /931 \| InternKon: 946 051 40 / 9
	?	510 744 98	Resilient sleeve 13/25x32	16	InternBDB: WN 341 948 40 \| InternKon: 946 051 40 / 10
	?	316 216 99	Washer	16	InternBDB: 13 /6916 \| InternKon: 946 051 40 / 11
	?	308 554 99	Bolt	8	InternBDB: M8x40 /931 \| InternKon: 946 051 40 / 12
	?	334 599 99	Nut	8	InternBDB: M 8 /985 \| InternKon: 946 051 40 / 13
	?	913 395 40	Bracket	1	InternKon: 946 051 40 / 1
	?	340 464 99	Washer	8	InternBDB: 8,4/125 \| InternKon: 946 051 40 / 14
	?	334 600 99	Nut	16	InternBDB: M12/985 \| InternKon: 946 051 40 / 15

Komatsu PC3000-6E S/N 06262 parts catalog PDF

CAPACITOR ARR. (255-2185a) in PC3000-6E S/N 06262. Diagram image and parts list.
