Diagram image 1 of 2

PC3000-6E S/N 06262

01 01 01 01 01 02 02 03 03 04 05 06 07 08 09 10 11 12 13 14 14 15 15 16 17 17 18 18 18 19 19 19 19 30 30 30 30 30 30 38 39 39 41 41 41 42 42 42 43 43 43 43 43 47 48 49 50 51 52 53 63 63 63 64 65 66 75 76 77 77 78 79 83 86

PC3000-6E S/N 06262

20 20 20 20 20 20 21 21 21 21 21 22 22 22 22 22 22 22 22 23 24 24 25 25 25 25 25 26 27 27 27 28 28 29 30 31 31 31 32 32 33 34 34 34 34 34 35 35 35 35 35 36 36 37 40 43 43 43 44 45 46 46 54 55 56 56 56 56 58 58 59 60 61 62 68 68 68 69 70 70 71 72 73 80 81 82 84 85 87 88 88 89 90 91

#	Part Number	Partname	Quantity	Options
01	948 852 40	Harness - hydraulic tank	1	InternKon: 948 851 40 / 1
02	940 480 40	Sensor	2	InternBDB: Bedia 420355 PT 100 G 1/2 \| InternKon: 948 851 40 / 14
03	938 318 40	Level probe assy.	2	InternBDB: Bedia 425 031 3/8 NPTF mit Stecker \| InternKon: 948 851 40 / 13
04	604 732 40	Pressure switch 0,5 bar	1	InternBDB: Suco 0166 403 02 1010 \| InternKon: 919 578 40 / 1
05	907 536 40	Gasket	1	InternBDB: 12,7x19,00 DDM 200127-4N49 \| InternKon: 919 578 40 / 2
06	621 338 40	Pressure switch 2,0 bar	1	InternBDB: Suco 0166 407 01 1025 \| InternKon: 894 541 40 / 1
07	907 538 40	Gasket	1	InternBDB: 10,7x17,00 DDM 200107-4N49 \| InternKon: 894 541 40 / 2
08	654 652 40	Maintenance switch	1	InternBDB: Mann u. Hummel 3908070802 \| InternKon: 948 851 40 / 10
09	431 168 40	Temperature transmitter	1	InternBDB: Moto Meter 642.007.1006 M14y1,5 \| InternKon: 948 851 40 / 15
10	898 146 40	Floatswitch (Bull clam equipment)	1	InternBDB: TL \| InternKon: 942 501 40 / 1
11	898 147 40	Floatswitch (Backhoe equipment)	1	InternBDB: TL \| InternKon: 942 502 40 / 1
11	898 148 40	Floatswitch (Backhoe equipment) cold weather -50°	1	InternBDB: TL \| InternKon: 942 503 40 / 1
12	320 817 99	Bolt	4	InternBDB: M5x20 /84 \| InternKon: 942 503 40 / 2
13	343 852 99	Lock washer	4	InternBDB: 5 /7980 \| InternKon: 942 503 40 / 3
14	0443452711	Clip	18	InternKon: 948 851 40 / 2
15	0443451910	Clip	8	InternKon: 948 851 40 / 3
16	0443451510	Clip	12	InternKon: 948 851 40 / 4
17	308 582 99	Bolt	7	InternBDB: M10x75/931 \| InternKon: 948 851 40 / 6
18	517 122 98	Lock washer	9	InternBDB: 10 WN 655 938 40 \| InternKon: 948 851 40 / 7
19	507 037 98	Nut	22	InternBDB: M10 /985 \| InternKon: 948 851 40 / 5
20	655 650 40	Protecting hose DN 12	-2	InternBDB: PMA VCST - 12 B \| InternKon: 948 852 40 / 33
21	655 651 40	Protecting hose DN 17	-2	InternBDB: PMA VCSG - 17 B \| InternKon: 948 852 40 / 32
22	655 652 40	Protecting hose DN 23	-2	InternBDB: PMA VCSG - 23 B \| InternKon: 948 852 40 / 31
23	655 634 40	Pipe adapter DN 23/17	1	InternBDB: PMA BAVR - 23 G 17 G \| InternKon: 948 852 40 / 27
24	655 633 40	Pipe adapter DN 17/12	2	InternBDB: PMA BAVR - 17 G 12 T \| InternKon: 948 852 40 / 28
25	655 630 40	T-Distributor DN 29/23	5	InternBDB: PMA BFTL - 29 23 23 GGG \| InternKon: 948 852 40 / 24
26	655 626 40	Connector distributor DN 17/12	1	InternBDB: PMA BVYR - 17 12 12 GTT \| InternKon: 948 852 40 / 30
27	655 629 40	T-Distributor DN 17	3	InternBDB: PMA BFTL - 17 17 17 GGG \| InternKon: 948 852 40 / 23
28	907 971 40	Pipe adapter DN 23/12	2	InternBDB: PMA BAVR - 23 G 12 T \| InternKon: 948 852 40 / 29
29	655 635 40	Pipe adapter DN 29/17	1	InternBDB: PMA BAVR - 29 G 17 G \| InternKon: 948 852 40 / 25
30	515 213 40	Cable 1 qmm	-2	InternBDB: NYFAW 1,0 Kabel-Wolf \| InternKon: 948 852 40 / 34
31	515 214 40	Cable 2,5 qmm	-2	InternBDB: XYFAFW 2,5 Kabel-Wolf \| InternKon: 948 852 40 / 35
32	655 810 40	Pipe adapter DN 29/12	2	InternBDB: PMA BAVR - 29 G 12 T \| InternKon: 948 852 40 / 26
33	907 693 40	Fitting M20/DN 17	1	InternBDB: PMA BVIR - M 207 \| InternKon: 948 852 40 / 2
34	907 692 40	Fitting M16/DN 12	5	InternBDB: PMA BVIR - M 162 \| InternKon: 948 852 40 / 10
35	907 703 40	Cable union	5	InternBDB: Pflitsch 21650 YNPM 4x3 \| InternKon: 948 852 40 / 11
36	655 809 40	Pipe adapter DN 29/10	2	InternBDB: ROHRADAPTER NW 29/10 BAVR-29G10T \| InternKon: 948 852 40 / 14
37	910 029 40	Plug assy.	1	InternKon: 948 852 40 / 12
38	795 134 73	Plug assy.	2	InternBDB: KES 0819213920 \| InternKon: 948 852 40 / 22
39	795 132 73	Plug assy. 2-pole	5	InternBDB: KES 0819212920 \| InternKon: 948 852 40 / 1
40	0819212920	Plug assy.	2	InternBDB: KES 08192 \| InternKon: 948 852 40 / 15
41	906 922 40	Protection cap	3	InternBDB: Suco 1166621003 \| InternKon: 948 852 40 / 5
42	323 961 40	Sleeve 6,3x0,8	5	InternBDB: 35180 \| InternKon: 948 852 40 / 6
43	940 462 40	Insulating tube	-2	InternBDB: IS-SCHLAUCH B 6 X0,6 PUR 70 SHORE \| InternKon: 948 852 40 / 9
44	655 621 40	Cable union DN 10	1	InternBDB: VERSHR NW 10 GERADE BVNV-P090T \| InternKon: 948 852 40 / 17
45	907 708 40	Cable union	1	InternBDB: Pflitsch 22052 YNPM 6x2,5 \| InternKon: 948 852 40 / 18
46	907 480 40	Cable union DN 10-90	2	InternBDB: BVWV-M160 \| InternKon: 948 852 40 / 36
47	256 514 40	Name plate	19	InternKon: 948 852 40 / 7
48	056 292 40	Cable strap	19	InternBDB: TY 23 M \| InternKon: 948 852 40 / 8
49	651 461 40	Housing assy.	1	InternKon: 948 852 40 / 16
50	655 547 40	Housing	1	InternBDB: Amp. 282189-1 \| InternKon: 651 461 40 / 1
51	655 548 40	Contact seal	2	InternBDB: Amp. 929937-1 \| InternKon: 651 461 40 / 2
52	655 549 40	Single seal	2	InternBDB: Amp. 828905-1 \| InternKon: 651 461 40 / 3
53	655 550 40	Rubber grommet	1	InternBDB: Amp. 880810-1 \| InternKon: 651 461 40 / 4
54	795 127 73	Plug	1	InternBDB: Deutsch HD 36-24-21PE-059 (KES 0819171206) \| InternKon: 948 852 40 / 21
55	795 129 73	Plug	1	InternBDB: Deutsch HD 36-24-31PE-059 (KES 0819191206) \| InternKon: 948 852 40 / 20
56	896 520 40	Plug pin	11	InternBDB: BO 3,0x25 \| InternKon: 948 852 40 / 4
58	440 109 40	Sleeve	2	InternBDB: 1-2,5 \| InternKon: 948 852 40 / 19
59	907 947 40	Connector distributor DN 29/23	1	InternBDB: PMA BVYR - 29 23 23 GGG \| InternKon: 948 852 40 / 38
60	896 558 40	Pipe adapter DN 29/23	1	InternBDB: BAVR-29G23G \| InternKon: 948 852 40 / 39
61	634 009 40	Spotlight	2	InternBDB: ABl AB-05-03 \| InternKon: 926 550 40 / 1
62	507 383 99	Halogen lamp 24V70W	2	InternBDB: H1 24V70W \| InternKon: 926 550 40 / 2
63	507 596 98	Washer	20	InternBDB: A11 DIN07989 \| InternKon: 948 851 40 / 8
64	510 741 98	Resilent sleeve 13/25x50	7	InternKon: 948 851 40 / 9
65	0819320010	Clip	3	InternKon: 948 851 40 / 16
66	934 329 40	Cover	1	InternKon: 948 851 40 / 17
68	655 649 40	Protecting hose DN 10	-2	InternBDB: VCST-10B \| InternKon: 948 852 40 / 13
69	655 631 40	Pipe adapter DN 12/10	1	InternBDB: BAVR-12T10T \| InternKon: 948 852 40 / 44
70	907 980 40	Fitting DN 23	2	InternBDB: BVIVG-U353 \| InternKon: 948 852 40 / 40
71	795 122 73	Sealing plug	3	InternBDB: 114 017 (KES 0819100770) \| InternKon: 948 852 40 / 42
72	795 123 73	Pin	33	InternBDB: Deutsch 0460-202-16141 (KES 0819105320) \| InternKon: 948 852 40 / 43
73	795 124 73	Pin	2	InternBDB: Deutsch 0460-204-12141 (KES 0819105340) \| InternKon: 948 852 40 / 45
75	896 669 40	Level probe	1	InternBDB: Bedia 425 031 3/8 NPTF mit Kabelenden \| InternKon: 938 318 40 / 1
76	795 461 73	Receptacle assy.	1	InternBDB: Stecker KES 0819213820 \| InternKon: 938 318 40 / 2
77	340 465 99	Washer	27	InternBDB: B10,5 / 125 \| InternKon: 948 851 40 / 19
78	0443451010	Clip NW 10	2	InternBDB: 77 KES 04434 \| InternKon: 948 851 40 / 20
79	0443450612	Clip NW 6,4	3	InternBDB: KES 04434 \| InternKon: 948 851 40 / 21
80	907 709 40	Cable union PG 16	1	InternBDB: KBLVERSHR MEHRFACH 22553YNPM13X2,7 \| InternKon: 948 852 40 / 48
81	940 717 40	Fitting M17/M25	1	InternBDB: ANSCHLUSSARMATUR M17/M25 BVIR-M257 METRISCH * \| InternKon: 948 852 40 / 3
82	056 070 40	Cable sleeve 1,0-1,5	4	InternBDB: KABELHUELSE 1,0-1,5 \| InternKon: 948 852 40 / 46
83	307 780 99	Bolt	1	InternBDB: M10 X 35 8.8 DIN 00933 \| InternKon: 948 851 40 / 22
84	318 914 99	Screw	2	InternBDB: M 8 X 16 8.8 DIN 00912 \| InternKon: 948 851 40 / 23
85	346 510 99	Lock washer	2	InternBDB: A 8 FST DIN 00128 \| InternKon: 948 851 40 / 24
86	0443452712	Clip NW 27	1	InternBDB: 77 KES 04434 \| InternKon: 948 851 40 / 25
87	940 852 40	Plug	15	InternBDB: #16 DVI 61103-20 \| InternKon: 948 852 40 / 49
88	517 321 98	Cable nut	2	InternBDB: M16x1,5 CUZN39PB3 DINEN 50262 \| InternKon: 948 852 40 / 50
89	940 461 40	Insulating tube B5x0,6	-2	InternBDB: B 5 X0,6 PUR 70 SHORE \| InternKon: 948 852 40 / 51
90	907 577 40	Distributor	1	InternBDB: 1,5-2 CUZNFSN 35262.000.000 \| InternKon: 948 852 40 / 52
91	940 629 40	Warmth shrink hose	-2	InternBDB: .05060 91F2570 \| InternKon: 948 852 40 / 53
\|$$90			-2
\|$$91			-2
\|$$92			-2
\|$$93			-2
\|$$94			-2
\|$$95			-2
\|$$96			-2
\|$$97			-2
\|$$98			-2
\|$$99			-2
\|$$100			-2
\|$$101			-2
\|$$102			-2
\|$$103			-2
\|$$104			-2
\|$$105			-2
\|$$106			-2
\|$$107			-2
\|$$108			-2
\|$$109			-2
\|$$110			-2
\|$$111			-2
\|$$112			-2
\|$$113			-2
\|$$114			-2
\|$$115			-2
\|$$116			-2
\|$$117			-2
\|$$118			-2
\|$$119			-2
\|$$120			-2
\|$$121			-2
\|$$122			-2
\|$$123			-2
\|$$124			-2
\|$$125			-2
\|$$126			-2
\|$$127			-2
\|$$128			-2
\|$$129			-2
\|$$130			-2
\|$$131			-2
\|$$132			-2
\|$$133			-2
\|$$134			-2
\|$$135			-2
\|$$136			-2
\|$$137			-2
\|$$138			-2

Komatsu PC3000-6E S/N 06262 parts catalog PDF

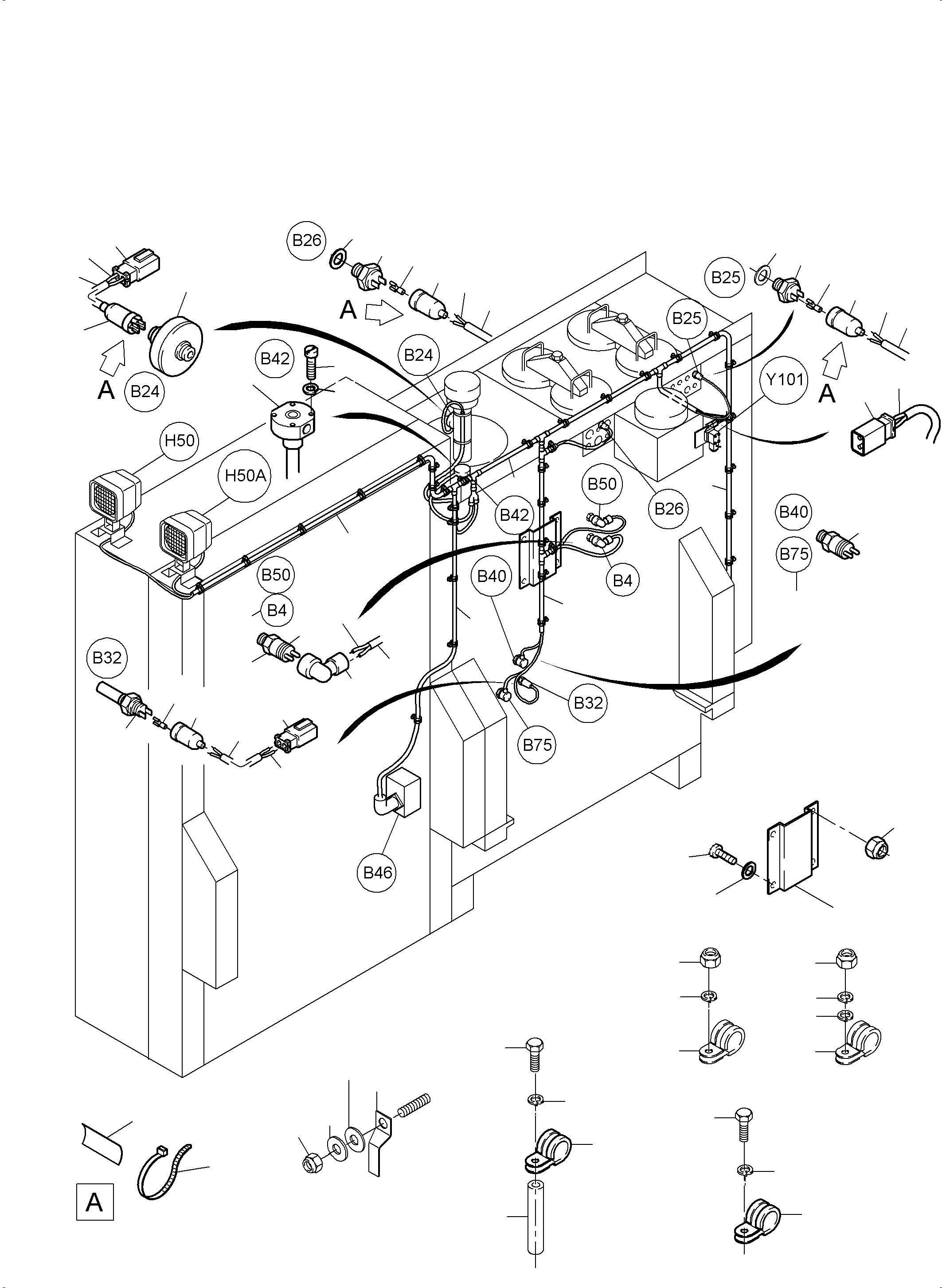

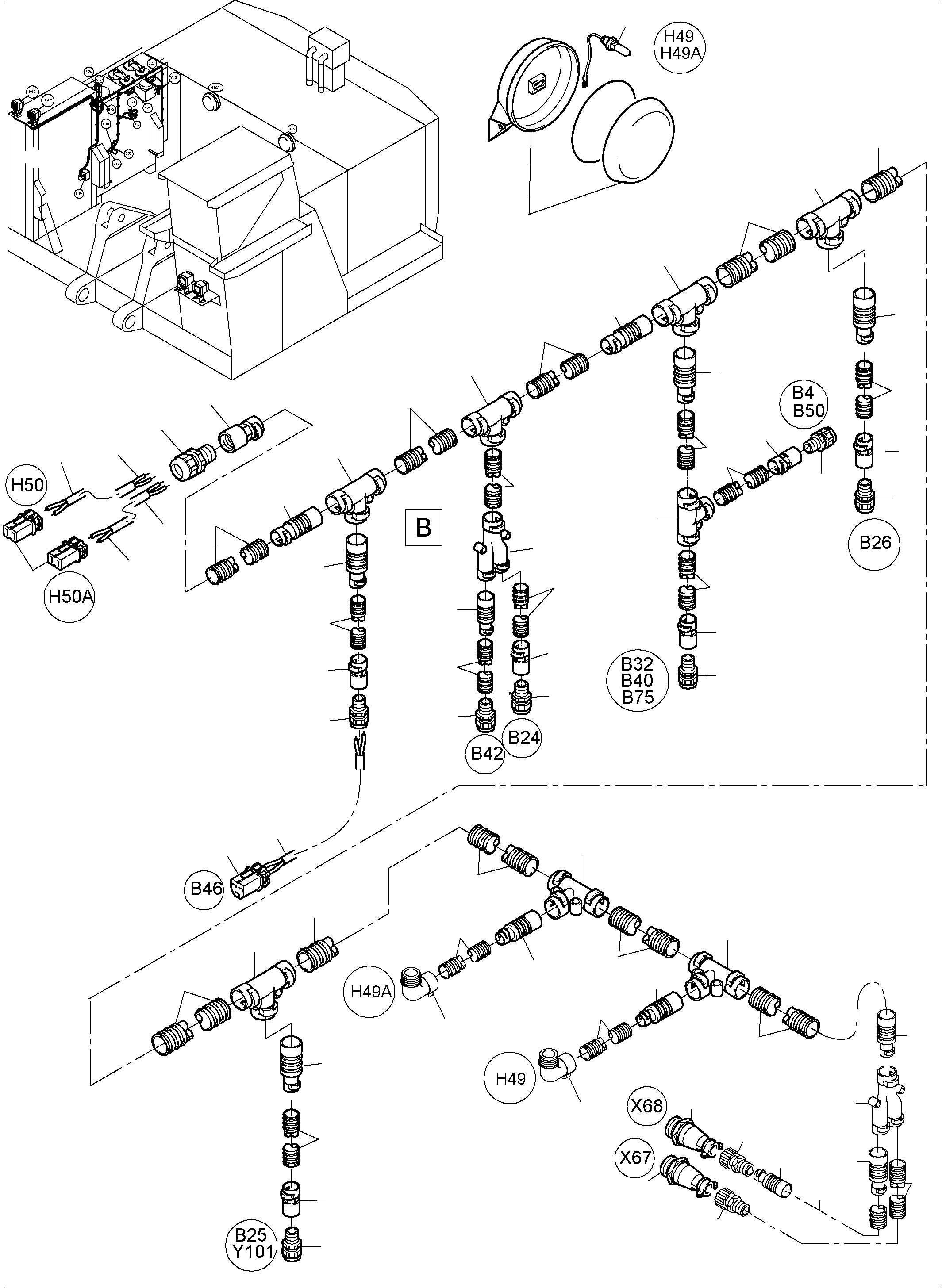

CABLES - OIL TANK AND SWITCH (255-2138a) in PC3000-6E S/N 06262. Diagram image and parts list.
