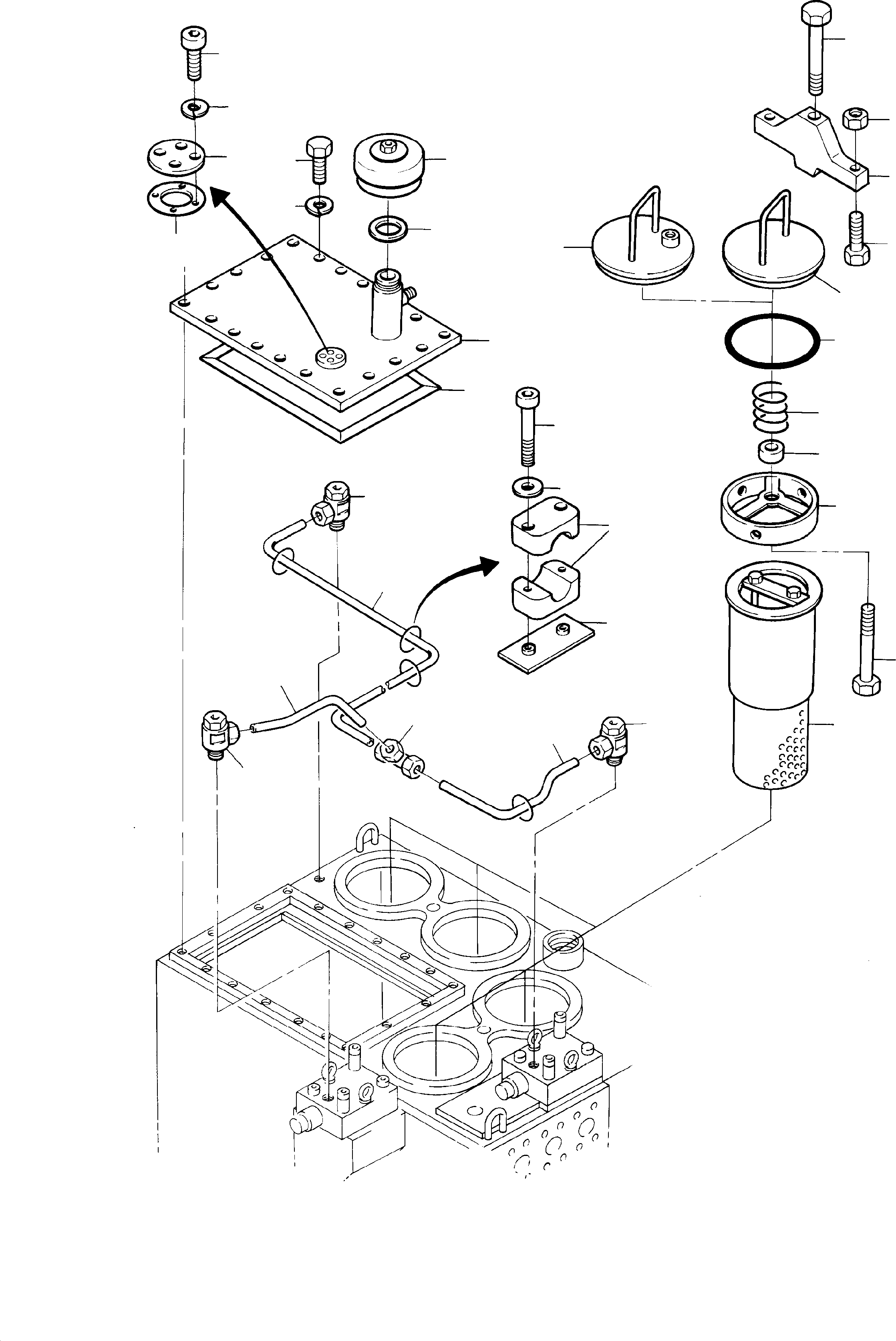

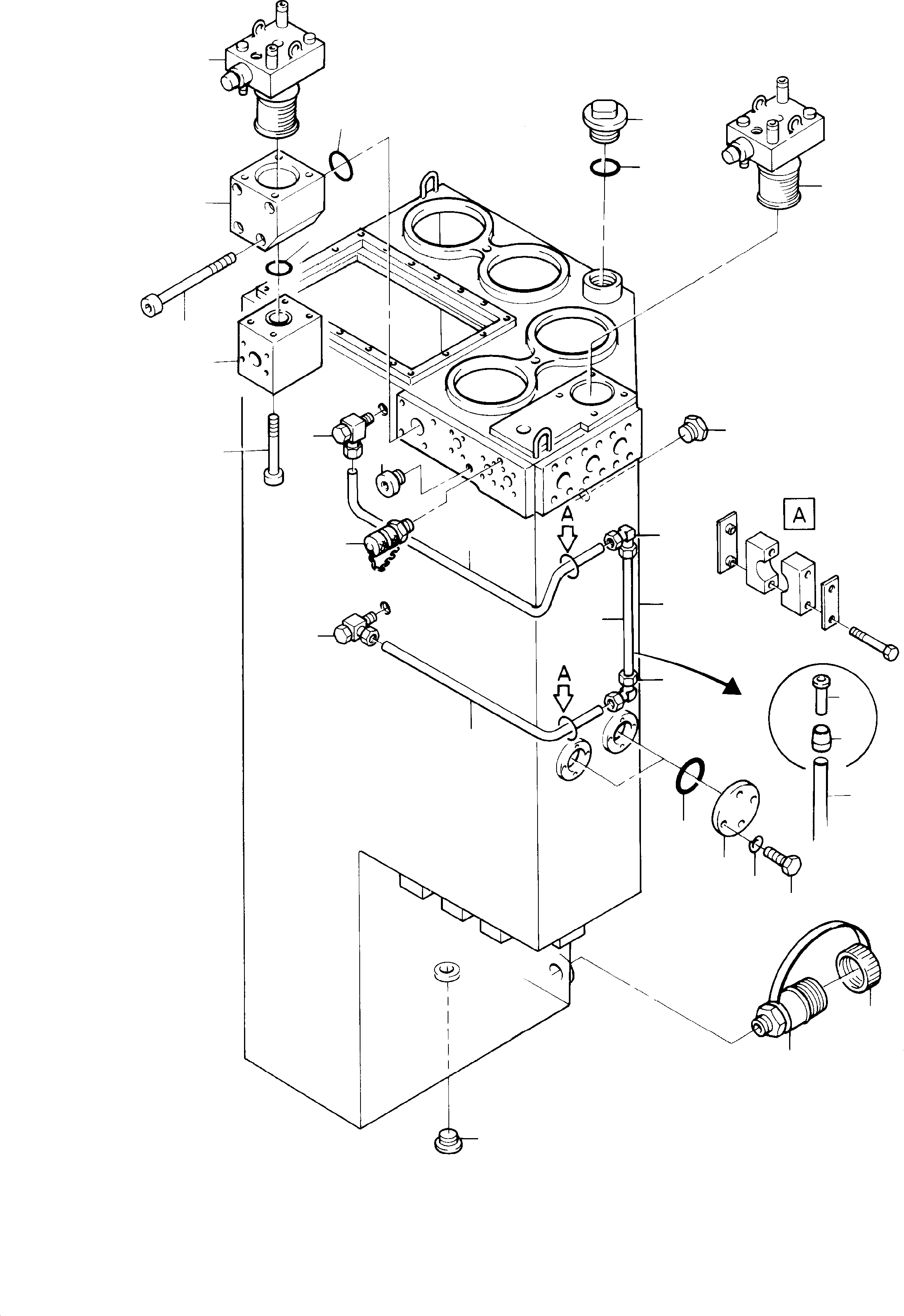

MAIN OIL TANK ASSY. | H285 S/N 78099 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
01	355 033 40	Main oil tank, assy.	1	InternBDB: AT-Nr. 669 392 73
02	355 034 40	Main oil tank	1	InternKon: 355 033 40 / 1
03	258 997 40	Plug	1	InternKon: 355 033 40 / 12
04	367 126 99	O-ring	1	InternBDB: 100x5 /3770 \| InternKon: 355 033 40 / 21
05	324 550 40	Plug	1	InternBDB: Lin. u. Heli. 3/4"-NPT \| InternKon: 355 033 40 / 33
06	153 646 40	Test-screw coupling	1	InternBDB: Hydrotechnik 2103-01-5100 R 1/4 \| InternKon: 355 033 40 / 32
07	007 107 98	Union	2	InternBDB: DSVW 10-LM \| InternKon: 355 033 40 / 23
08	501 539 98	Plug-in sleeve	2	InternBDB: E 810/6
09	159 966 40	Clamping ring	2
10	211 242 99	Plastic pipe 800 lg. Bulk ware, state length required	1	InternBDB: 10x1,85 / 16982 \| InternKon: 355 033 40 / 24
11	173 494 40	Plug	1	InternBDB: Ermeto vsti M33x2-ed \| InternKon: 355 033 40 / 22
12	269 873 40	Coupling sleeve DN 32	1	InternBDB: Argus 7171-1032-34 0420 \| InternKon: 355 033 40 / 17
13	208 890 40	Dust muff	1	InternBDB: Argus 7193-0025-39 9276 \| InternKon: 355 033 40 / 18
14	501 779 98	O-ring	4	InternBDB: 89,2x5,7B/70 011 745 99 \| InternKon: 355 033 40 / 20
15	251 787 40	Cover	4	InternKon: 355 033 40 / 13
16	346 510 99	Lock washer	16	InternBDB: 8 /128 \| InternKon: 355 033 40 / 31
17	307 752 99	Bolt	24	InternBDB: M8x20 /933 8.8 \| InternKon: 355 033 40 / 28
18		Pressure relief valve	2	InternBDB: 461 258 40 \| InternKon: 355 033 40 / 14	090-0486
19	360 873 40	Plug	1	InternBDB: vsti M26x1,5 ed \| InternKon: 355 033 40 / 42
20	322 684 40	Valve block	1	InternKon: 355 033 40 / 43
21	504 904 98	Screw	4	InternBDB: M12x180 /912 \| InternKon: 355 033 40 / 44
22	006 706 98	O-ring	1	InternBDB: 105x3,5 /80 011 745 99 \| InternKon: 355 033 40 / 48
23	215 627 99	Pipe Ш 10 Bulk ware, state length required	-2	InternBDB: 10x2 /2391
24	372 709 99	Union	2	InternBDB: KL10 /2353
25	385 243 40	O-ring	1
26	466 473 40	Manifold	1	InternKon: 355 033 40 / 51
27	321 483 99	Bolt	1	InternBDB: M10x150 /912 \| InternKon: 355 033 40 / 52
28	355 093 40	Cover	1	InternKon: 355 033 40 / 2
29	366 507 40	Gasket	1	InternKon: 355 033 40 / 8
30	346 510 99	Lock washer	20	InternBDB: 8 /128 \| InternKon: 355 033 40 / 31
31	308 252 99	Bolt	20	InternBDB: M8x16 /933 \| InternKon: 355 033 40 / 29
32	366 508 40	Gasket	1	InternKon: 355 033 40 / 9
33	366 509 40	Cover	1	InternKon: 355 033 40 / 10
34	346 509 99	Lock washer	4	InternBDB: 5 /128 \| InternKon: 355 033 40 / 35
35	319 412 99	Screw	4	InternBDB: M5x10 /912 \| InternKon: 355 033 40 / 34
36		Aeration filter	1	InternBDB: 440 479 40 \| InternKon: 355 033 40 / 16	090-5586
37	366 510 40	Gasket	1	InternKon: 355 033 40 / 11
38	304 309 99	Bolt	2	InternBDB: M30x200 /931 10.9 \| InternKon: 355 033 40 / 25
39	332 336 99	Nut	4	InternBDB: M 16 /934 \| InternKon: 355 033 40 / 30
40	366 506 40	Clamp strap	2	InternKon: 355 033 40 / 7
41	307 830 99	Bolt	4	InternBDB: M16x70 /933 \| InternKon: 355 033 40 / 26
42	366 501 40	Cover	4	InternKon: 355 033 40 / 4
43	502 119 98	O-ring	4	InternBDB: 269,3x5,7/70 011 745 99 \| InternKon: 355 033 40 / 19
44	366 504 40	Compression spring	4	InternBDB: TL 10x50x107 \| InternKon: 355 033 40 / 5
45	366 505 40	Bush	4	InternKon: 355 033 40 / 6
46	425 610 40	Cover	4	InternKon: 355 033 40 / 3
47	308 587 99	Bolt	4	InternBDB: M10x120 /931 \| InternKon: 355 033 40 / 27
48		Return oil filter	4	InternBDB: 358 601 40 \| InternKon: 355 033 40 / 15	090-5569a
49	386 943 40	Pipe, assy. Ш 15	1	InternKon: 355 033 40 / 37
50	007 141 98	Union	3	InternBDB: 15-LR 011 754 98 \| InternKon: 355 033 40 / 36
51	533 989 99	Welding plate	4	InternBDB: E 2 011 839 99 \| InternKon: 355 033 40 / 39
52	533 988 99	Clamp	8	InternBDB: C 2/15 011 839 99 \| InternKon: 355 033 40 / 38
53	340 405 99	Washer	8	InternBDB: 6,4 /433 \| InternKon: 355 033 40 / 41
54	319 132 99	Screw	8	InternBDB: M6x25 /912 \| InternKon: 355 033 40 / 40
55	389 837 40	Pipe, assy. Ш 15	1	InternKon: 355 033 40 / 45
56	389 836 40	Pipe, assy. Ш 15	1	InternKon: 355 033 40 / 46
57	372 261 99	Union	1	InternBDB: QL 15 /2353 \| InternKon: 355 033 40 / 47
\|$58		For Mesabi-oil cooler system arr.:	-1
60	480 796 40	Cover	2
61	366 501 40	Cover	2
