H285 S/N 78099

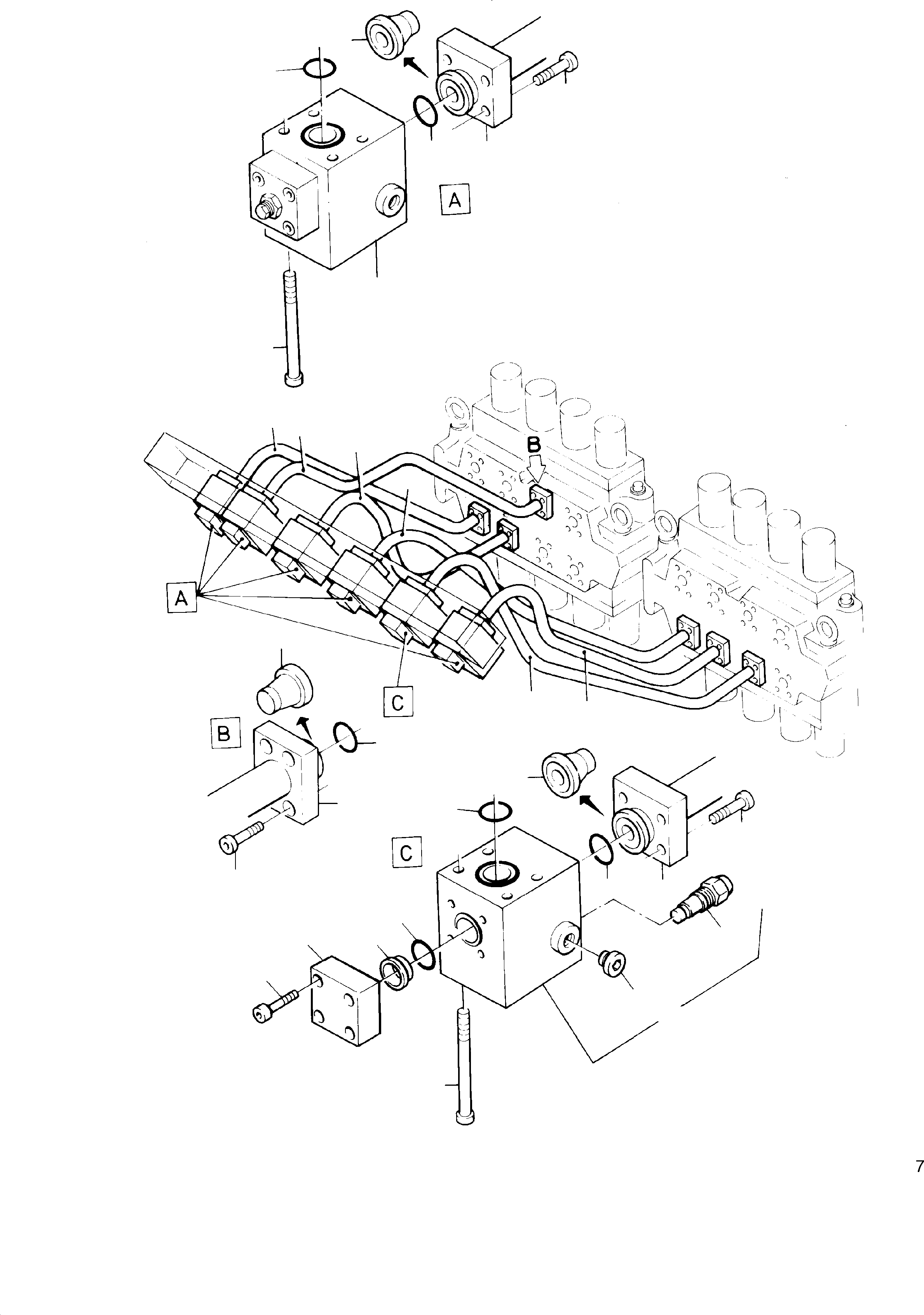

Komatsu parts book diagram for H285 S/N 78099: PIPES ASSY., CONTROL BLOCKS - NON-RETURN VALVES

01 02 02 03 03 03 04 04 04 05 05 05 05 05 06 06 06 07 08 09 10 11 15 16 17 18 19 20 21 22

	#	Part Number	Partname	Quantity	Options	Reference
	01		Throttle check valve	5	InternBDB: 461 796 40 \| InternKon: 368 327 40 / 27	090-0502
	02	319 405 99	Bolt	24	InternBDB: M20x180 /912 10.9 \| InternKon: 368 327 40 / 6
	03	504 448 98	Flange	12	InternBDB: FE-6500-32/6 \| InternKon: 368 327 40 / 8
	04	504 461 98	Collar ring	12	InternBDB: K-6580-32 \| InternKon: 368 327 40 / 10
	05	385 243 40	Tetra seal	13	InternBDB: Bu. u. Lu. FR-76-6299- 2200 \| InternKon: 368 327 40 / 9
	06	504 699 98	Bolt	48	InternBDB: M20x85 /912 \| InternKon: 368 327 40 / 5
	07	694 500	Pipe assy. Ш 65	1	InternBDB: 368 358 40 \| InternKon: 368 327 40 / 12
	08	696 380 73	Pipe assy. Ш 65	1	InternBDB: 449 167 40 \| InternKon: 368 327 40 / 13
	09	694 502	Pipe assy. Ш 65	1	InternBDB: 368 363 40 \| InternKon: 368 327 40 / 17
	10	694 503	Pipe assy. Ш 65	1	InternBDB: 368 367 40 \| InternKon: 368 327 40 / 21
	11	694 504	Pipe assy. Ш 65	1	InternBDB: 368 365 40 \| InternKon: 368 327 40 / 19
	15	696 381 73	Pipe assy. Ш 65	1	InternBDB: 449 169 40 \| InternKon: 368 392 40 / 11
	16	440 482 40	Pressure valve	1	InternBDB: Rexroth MHDBV 52 E2
	17	754 543	Plug	1	InternBDB: Rexroth 013 280
	18		Pressure relief valve	1	InternBDB: 754 380 73	090-0186
	19	973 138	Support ring	1	InternKon: 368 392 40 / 42
	20	502 900 98	O-ring	1	InternBDB: 63,09x3,53 \| InternKon: 368 392 40 / 41
	21	444 971 40	Cover	1	InternKon: 368 392 40 / 40
	22	319 287 99	Bolt	4	InternBDB: M16x40 /912 10.9 \| InternKon: 368 392 40 / 43

Komatsu H285 S/N 78099 parts catalog PDF

PIPES ASSY., CONTROL BLOCKS - NON-RETURN VALVES (114-1846-3) in H285 S/N 78099. Diagram image and parts list.
