H285 S/N 78099

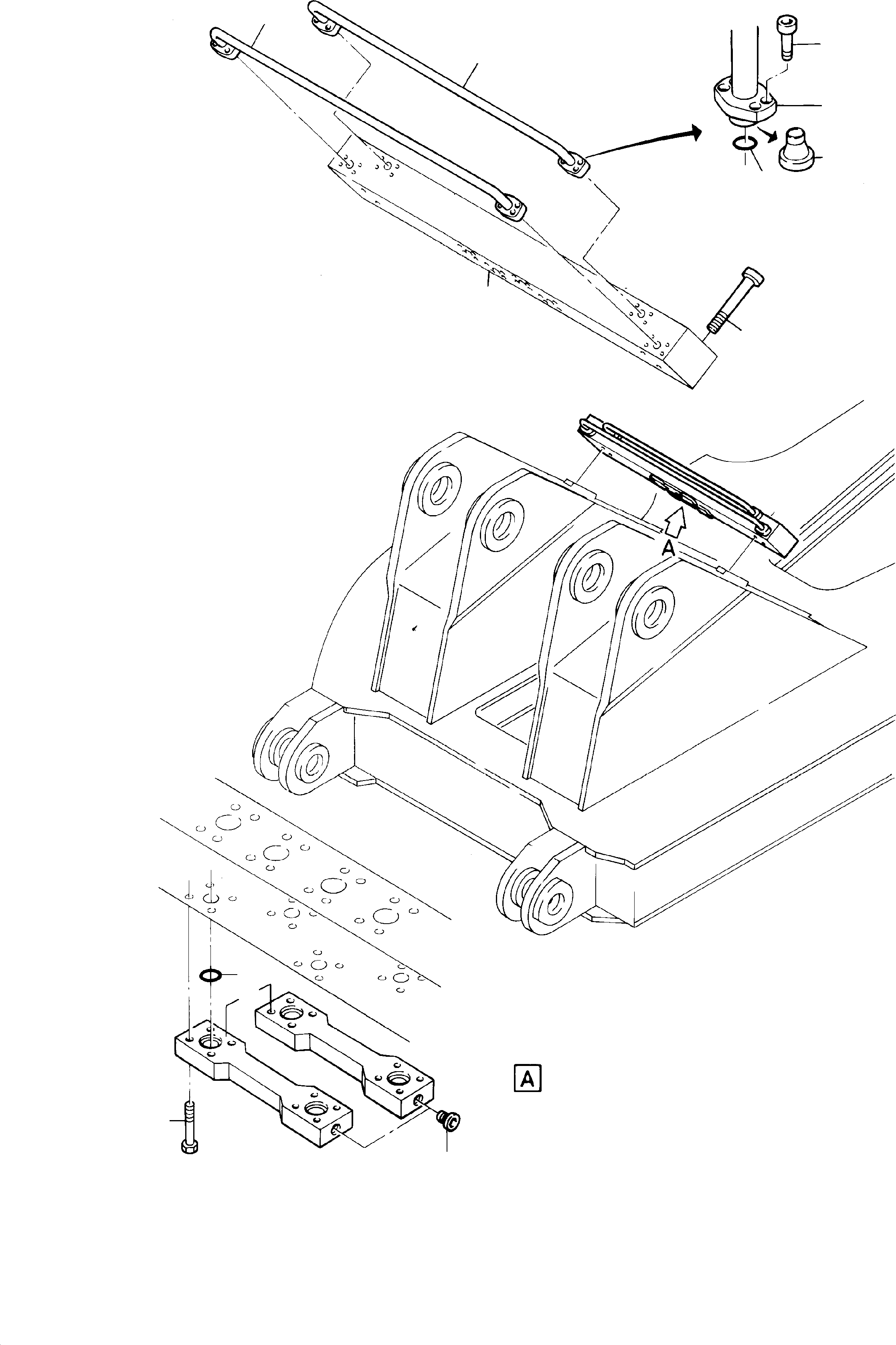

Komatsu parts book diagram for H285 S/N 78099: DISTRIBUTOR BLOCK ARRANGEMENT

01 02 03 04 05 06 07 08 09 10 11 12

	#	Part Number	Partname	Quantity	Options	Reference
	01	368 328 40	Distributor block	1	InternKon: 368 327 40 / 1
	02	368 329 40	Bridge	2	InternKon: 368 327 40 / 2
	03	006 720 98	O-ring	4	InternBDB: 33x3,5 /90 \| InternKon: 368 327 40 / 3
	04	308 873 99	Bolt	16	InternBDB: M16x60 /931 10.9 \| InternKon: 368 327 40 / 3
	05	173 415 40	Plug	2	InternBDB: vsti M27x2-ed \| InternKon: 368 327 40 / 28
	06	694 700	Pipe, assy. Ш 38	1	InternBDB: 368 387 40 \| InternKon: 368 327 40 / 6
	07	694 701	Pipe, assy. Ш 38	1	InternBDB: 368 388 40 \| InternKon: 368 327 40 / 7
	08	500 129 98	Flange	4	InternBDB: FE-3800-20/6 \| InternKon: 368 327 40 / 51
	09	501 871 98	Collar ring	4	InternBDB: K-3850-20 \| InternKon: 368 327 40 / 52
	10	356 210 40	Tetra seal	4	InternBDB: Bu. u. Lu. FR 76-5957- 2200 1 1/4" \| InternKon: 368 327 40 / 29
	11	319 209 99	Screw	16	InternBDB: M14x45 /912 10.9 \| InternKon: 368 327 40 / 4
	12	319 445 99	Screw	4	InternBDB: M16x160 /912 \| InternKon: 374 399 40 / 8

Komatsu H285 S/N 78099 parts catalog PDF

DISTRIBUTOR BLOCK ARRANGEMENT (114-1854) in H285 S/N 78099. Diagram image and parts list.
