H285 S/N 78099

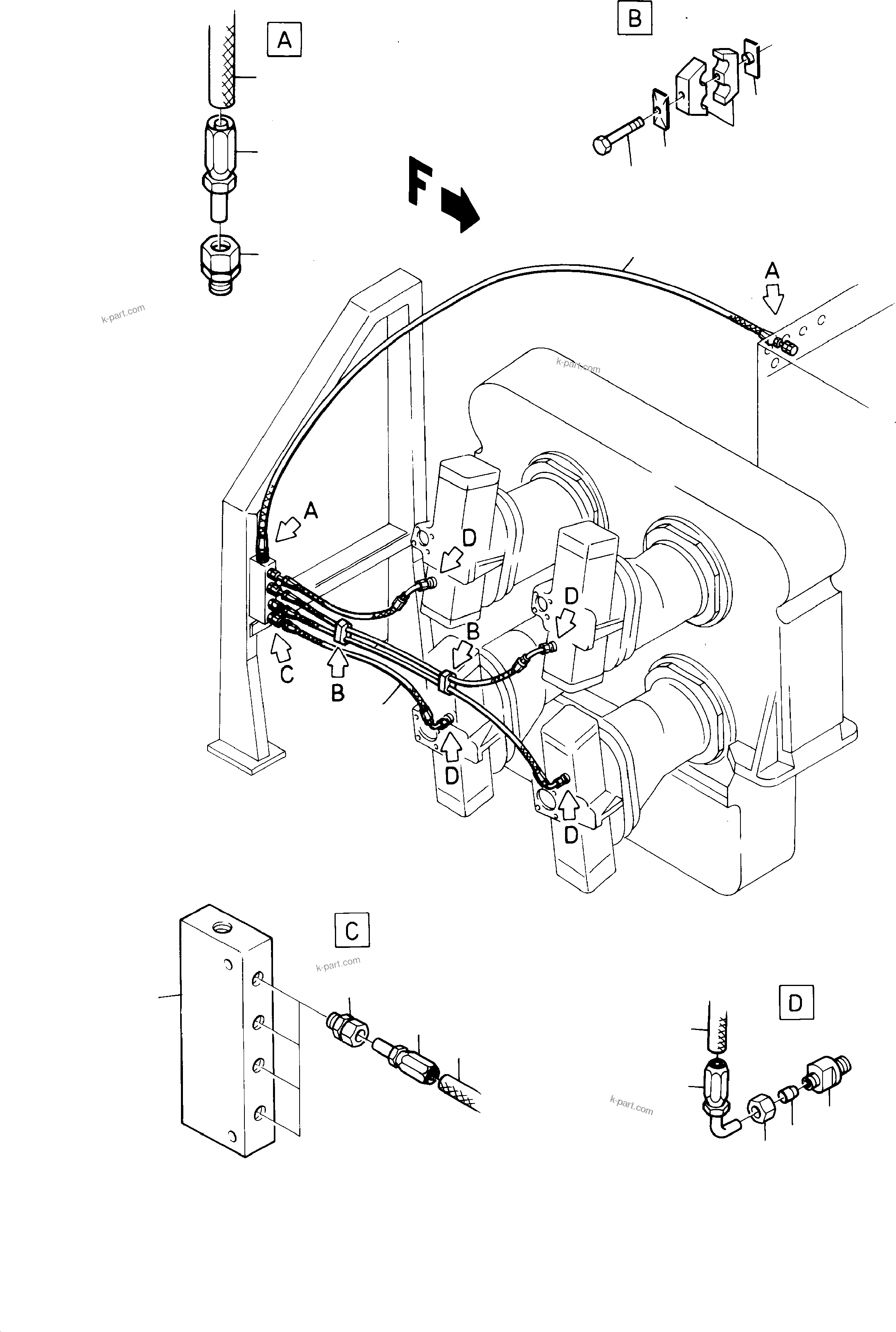

Komatsu parts book diagram for H285 S/N 78099: EXTERNAL PILOT OIL CHAIN ARR. (MAIN PUMP)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	425 614 40	Diaphragm union	4	InternKon: 371 521 40 / 196
	?	371 255 99	Olive	4	InternBDB: L10 /3861
	?	371 273 99	Union nut	4	InternBDB: AL10 /3870
	?	372 424 99	Union	4	InternBDB: CL10 /2353 \| InternKon: 371 521 40 / 201
	?	414 507 40	Hose fittings	4	InternBDB: Aeroquip GA17517-5 \| InternKon: 371 521 40 / 202
	?	323 256 40	Hose DN 8 Bulk ware, state length required	-2	InternBDB: Aeroquip FC 310-05 \| InternKon: 371 521 40 / 199
	?	255 007 40	Hose DN 12 Bulk ware, state length required	-2	InternBDB: Aeroquip 2651-10 \| InternKon: 371 521 40 / 161
	?	269 972 40	Hose fittings	2	InternBDB: Aeroquip 07.004-15-10
	?	372 426 99	Union	2	InternBDB: CL15 /2353
	?	429 765 40	Manifold	1	InternKon: 371 521 40 / 225
	?	461 727 40	Hose fittings	4	InternBDB: Aeroquip GA 17512-5
	?	534 015 99	Weld on plate	2	InternBDB: P2D 011 839 99
	?	502 931 98	Half clamp	4	InternBDB: 02-16/16
	?	534 014 99	Cover plate	2	InternBDB: N2D
	?	308 553 99	Bolt	2	InternBDB: M8x35 /931

Komatsu H285 S/N 78099 parts catalog PDF

EXTERNAL PILOT OIL CHAIN ARR. (MAIN PUMP) (114-1827a) in H285 S/N 78099. Diagram image and parts list.
