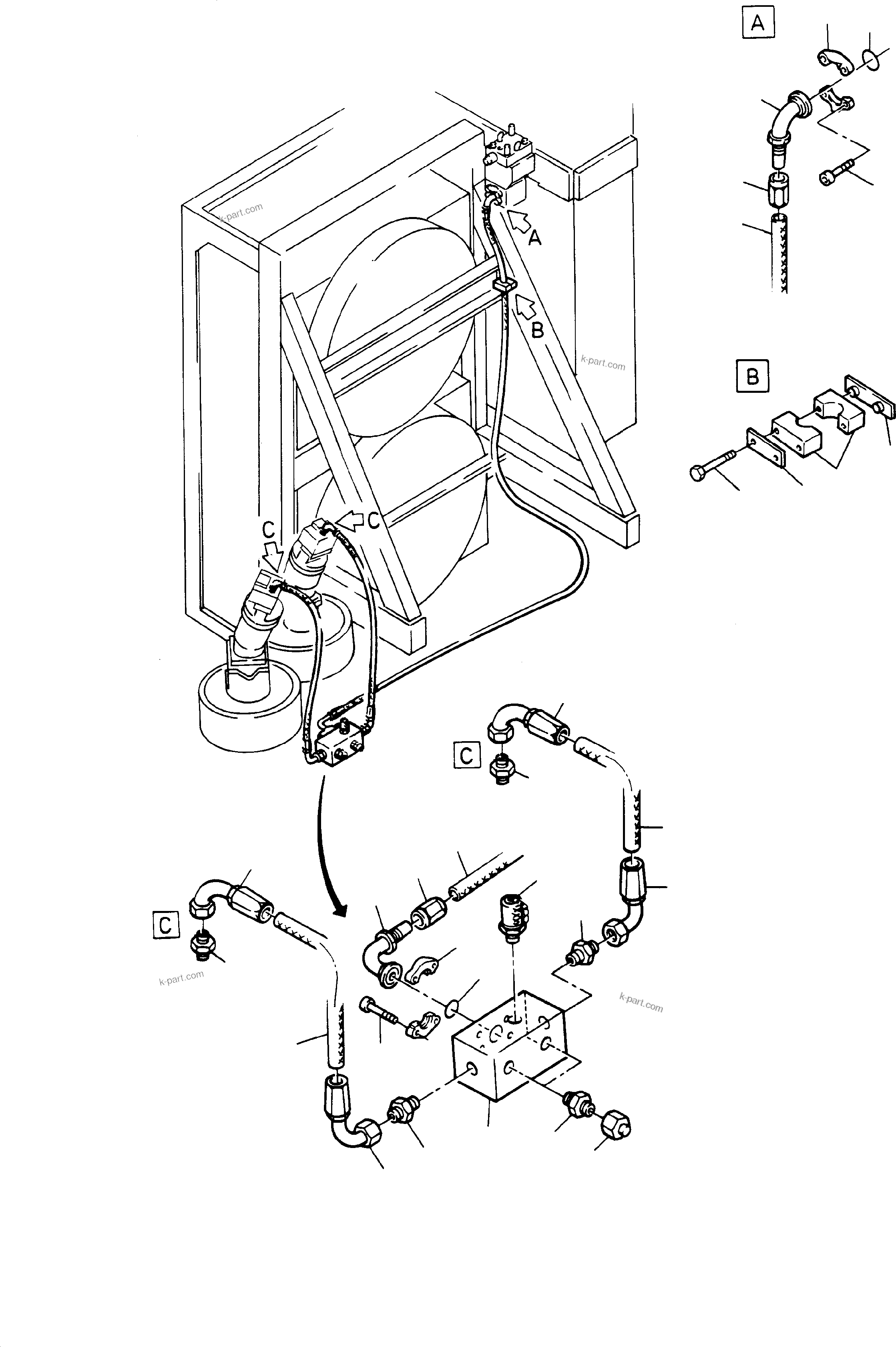

Komatsu parts book diagram for H285 S/N 78099: SLEW GEAR - ANTICAVITATION

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	385 243 40	O-ring	2	InternKon: 457 200 40 / 37
	?	145 823 40	Half flange	4	InternBDB: 50 /210 \| InternKon: 457 200 40 / 28
	?	319 156 99	Bolt	8	InternBDB: M12x30 /912 \| InternKon: 457 200 40 / 88
	?	368 258 40	Hose fittings, nipple	2	InternBDB: Aeroquip G 4679-32 \| InternKon: 457 200 40 / 159
	?	368 256 40	Hose fittings, socket	2	InternBDB: Aeroquip G 1212-32 \| InternKon: 457 200 40 / 138
	?	269 103 40	Hose DN 50 Bulk ware, state length required	-2	InternBDB: Aeroquip 2651-32
	?	269 962 40	Hose DN 32 Bulk ware, state length required	-2	InternBDB: Aeroquip 2651-24 \| InternKon: 457 200 40 / 152
	?	255 844 40	Hose fittings	4	InternBDB: Aeroquip 07.031-35-24 \| InternKon: 457 200 40 / 243
	?	374 422 99	Socket	6	InternBDB: L 35 M /3901
	?	255 375 40	Test-screw coupling	1	InternBDB: AR 1/4 \| InternKon: 457 200 40 / 87
	?	466 475 40	Manifold	1	InternKon: 457 200 40 / 239
	?	534 009 99	Weld on plate	1	InternBDB: ES 6
	?	502 658 98	Half clamp	2	InternBDB: HC 56/56
	?	534 008 99	Cover plate	1	InternBDB: DS 6
	?	308 612 99	Bolt	2	InternBDB: M12x100 /931
	?	371 859 99	Breech block	2	InternBDB: 35-L / 011 638 99

Komatsu H285 S/N 78099 parts catalog PDF

SLEW GEAR - ANTICAVITATION (114-1852c) in H285 S/N 78099. Diagram image and parts list.
