H285 S/N 78099

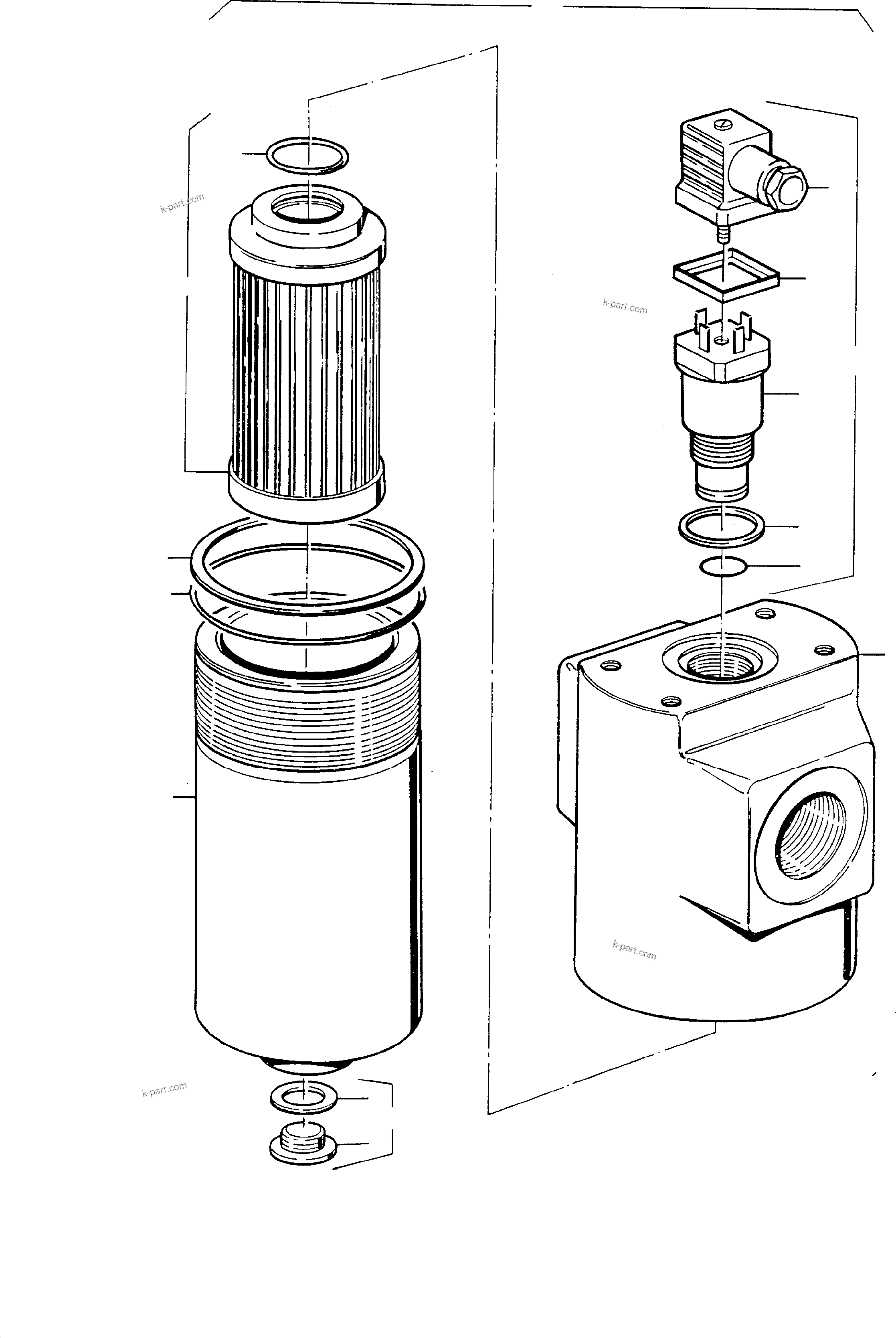

Komatsu parts book diagram for H285 S/N 78099: HYDRAULIC FILTER

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	592 448 40	Hydr. filter assy.	1	InternBDB: Hydac DF BN HC 330 G20 C1.0/-B6-004 183 88
	?	761 896 73	Contamination indicator assy.	1	InternBDB: VD5 C.0/-004 183 88
	?	604 095 40	Plug	1	InternBDB: Hirschmann GDM 3011-931 952-100
	?	604 096 40	Seal	1	InternBDB: Hirschmann GDM3-16
	?		Contamination indicator These parts are not sold separately	1
	?		Seal These parts are not sold separately	1
	?		O-ring These parts are not sold separately	1	InternBDB: 15x1,5
	?	694 434	Filter head	1	InternBDB: DF 330 G1.0 /BYP
	?	694 403	Filter element assy.	1	InternBDB: 0330 D020 BN/HC
	?		O-ring These parts are not sold separately	1	InternBDB: 48x3
	?		Support ring These parts are not sold separately	1	InternBDB: 116,3x3,1x1,7
	?		O-ring These parts are not sold separately	1	InternBDB: 117x4
	?	694 433	Filter barrel	1	InternBDB: DF 330 G1.0 /BYP
	?	180 477 40	Plug assy.	1	InternBDB: VSTI R 1/2 WN 341 913 40
	?	688 863	Seal ring	1
	?		Plug These parts are not sold separately	1
	?	761 858 73	Seal kit	-2	InternBDB: E-ST
