H285 S/N 78099

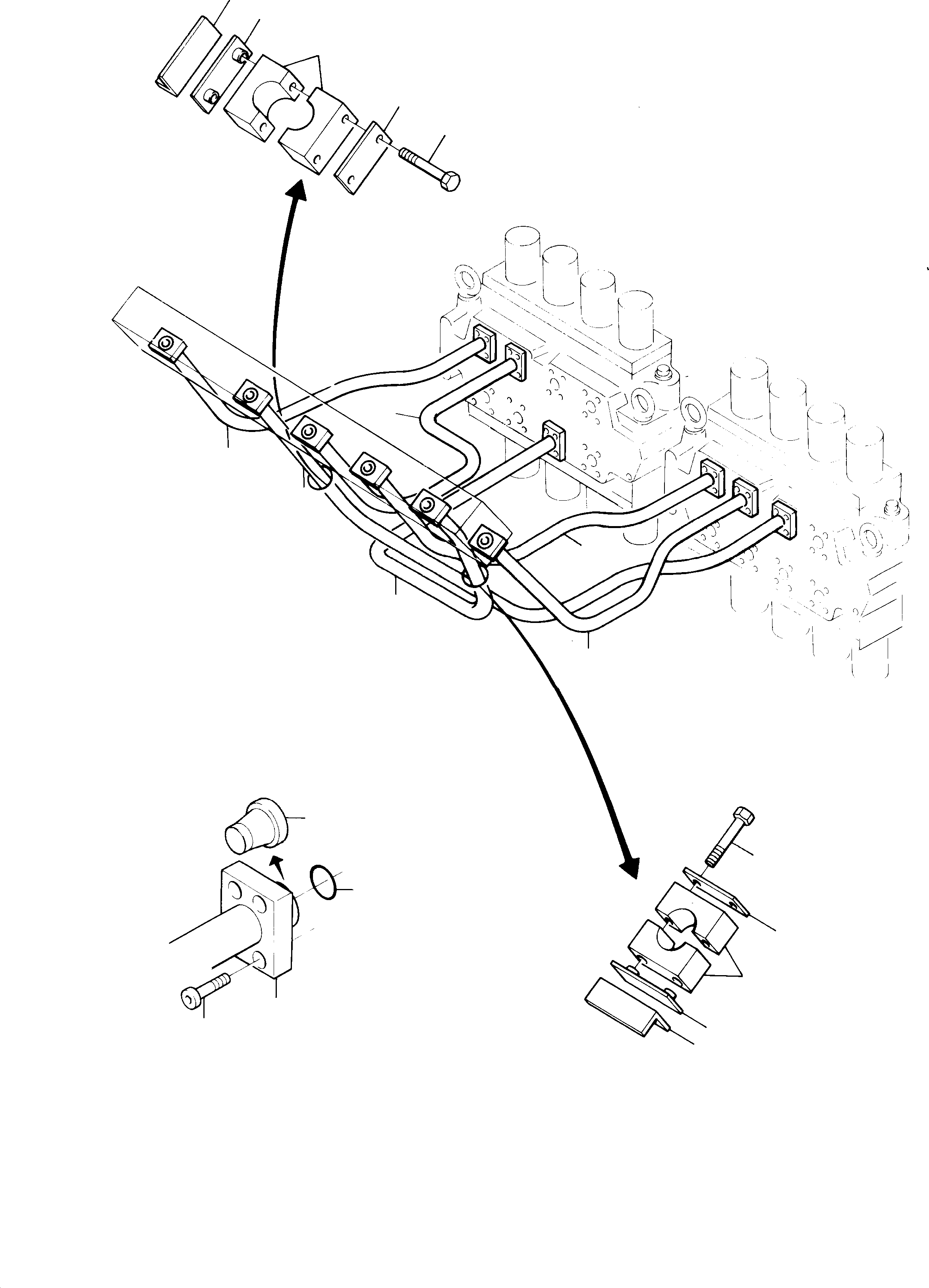

Komatsu parts book diagram for H285 S/N 78099: PIPING ASSY., MAIN CONTROL BLOCKS - DISTRIBUTOR BLOCK

01 02 03 04 05 06 07 08 09 10 11 12 13 13 14 14 15 15 16 16

	#	Part Number	Partname	Quantity	Options	Reference
	01	694 506	Pipe, assy. Ш 65	1	InternBDB: 368 357 40 \| InternKon: 368 327 40 / 11
	02	694 507	Pipe, assy. Ш 65	1	InternBDB: 368 366 40 \| InternKon: 368 327 40 / 20
	03	696 379 73	Pipe, assy. Ш 65	1	InternBDB: 449 168 40 \| InternKon: 368 327 40 / 15
	04	694 509	Pipe, assy. Ш 65	1	InternBDB: 368 364 40 \| InternKon: 368 327 40 / 18
	05	694 510	Pipe, assy. Ш 65	1	InternBDB: 400 008 40 \| InternKon: 368 327 40 / 16
	06	694 511	Pipe, assy. Ш 65	1	InternBDB: 368 368 40 \| InternKon: 368 327 40 / 22
	07	504 448 98	Flange	12	InternBDB: FE-6500-32/6 \| InternKon: 368 327 40 / 8
	08	504 461 98	Collar ring	12	InternBDB: K-6580-32 \| InternKon: 368 327 40 / 10
	09	385 243 40	Tetra seal	12	InternBDB: Bu. u. Lu. FR-76-6299-2200 \| InternKon: 368 327 40 / 9
	10	504 699 98	Screw	48	InternBDB: M20x85 /912 \| InternKon: 368 327 40 / 5
	11	426 748 40	Pipe bracket	1	InternKon: 368 327 40 / 53
	12	426 749 40	Pipe bracket	1	InternKon: 368 327 40 / 54
	13	534 009 99	Weld on plate	2	InternBDB: ES 6 011 839 99 \| InternKon: 368 327 40 / 56
	14	500 034 98	Half clamp	4	InternBDB: CS 6 /65 \| InternKon: 368 327 40 / 55
	15	534 008 99	Cover plate	2	InternBDB: DS 6 \| InternKon: 368 327 40 / 57
	16	308 641 99	Bolt	4	InternBDB: M16x130 /931 \| InternKon: 368 327 40 / 58

Komatsu H285 S/N 78099 parts catalog PDF

PIPING ASSY., MAIN CONTROL BLOCKS - DISTRIBUTOR BLOCK (114-1844-2) in H285 S/N 78099. Diagram image and parts list.
