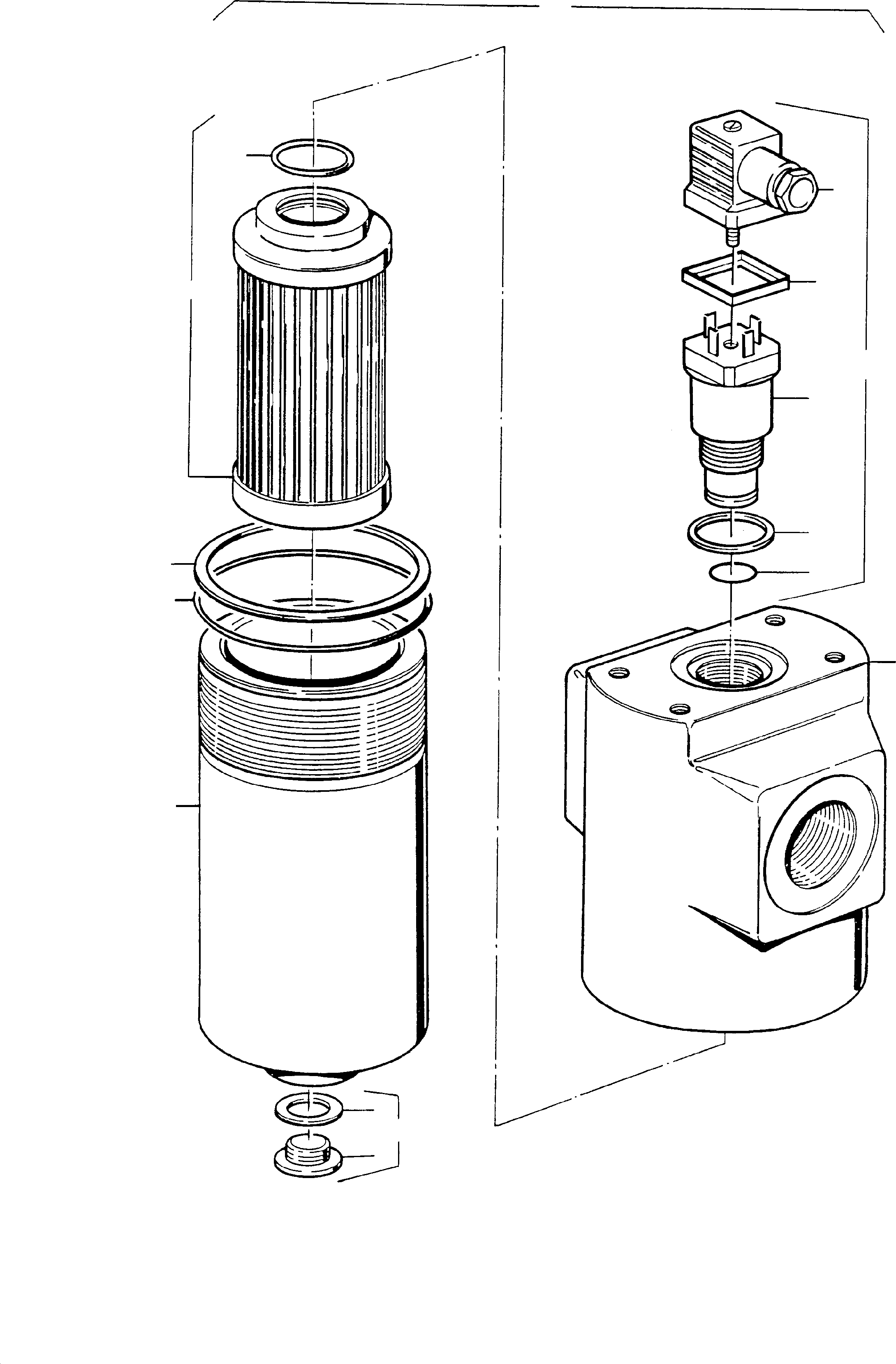

Komatsu parts book diagram for H285 S/N 78099: HYDRAULIC FILTER

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16

	#	Part Number	Partname	Quantity	Options	Reference
	01	592 449 40	Hydr. filter assy.	1	InternBDB: Hydac LF BN HC 330 G20 C1.0/-B6-004 183 88
	02	761 896 73	Contamination indicatorassy.	1	InternBDB: VD5 C.0/-004 183 88
	03	604 095 40	Plug	1	InternBDB: Hirschmann GDM 3011-931 952-100
	04	604 096 40	Seal	1	InternBDB: Hirschmann GDM3-16
	05		Contamination indicator These parts are not sold separately	1
	06		Seal These parts are not sold separately	1
	07		O-ring These parts are not sold separately	1	InternBDB: 15x1,5
	08	694 435	Filter head	1	InternBDB: LF 330 G1.0 /BYP
	09	694 403	Filter element assy.	1	InternBDB: 0330 D020 BN/HC
	10		O-ring These parts are not sold separately	1	InternBDB: 48x3
	11		Support ring These parts are not sold separately	1	InternBDB: 116,3x3,1x1,7
	12		O-ring These parts are not sold separately	1	InternBDB: 117x4
	13	694 436	Filter barrel	1	InternBDB: LF 330 G1.0 /BYP
	14	180 477 40	Plug assy.	1	InternBDB: VSTI R 1/2 WN 341 913 40
	15	688 863	Seal ring	1
	16		Plug These parts are not sold separately	1
	\|$$17	761 858 73	Seal kit	-2	InternBDB: E-ST

Komatsu H285 S/N 78099 parts catalog PDF

HYDRAULIC FILTER (090-5568b) in H285 S/N 78099. Diagram image and parts list.
