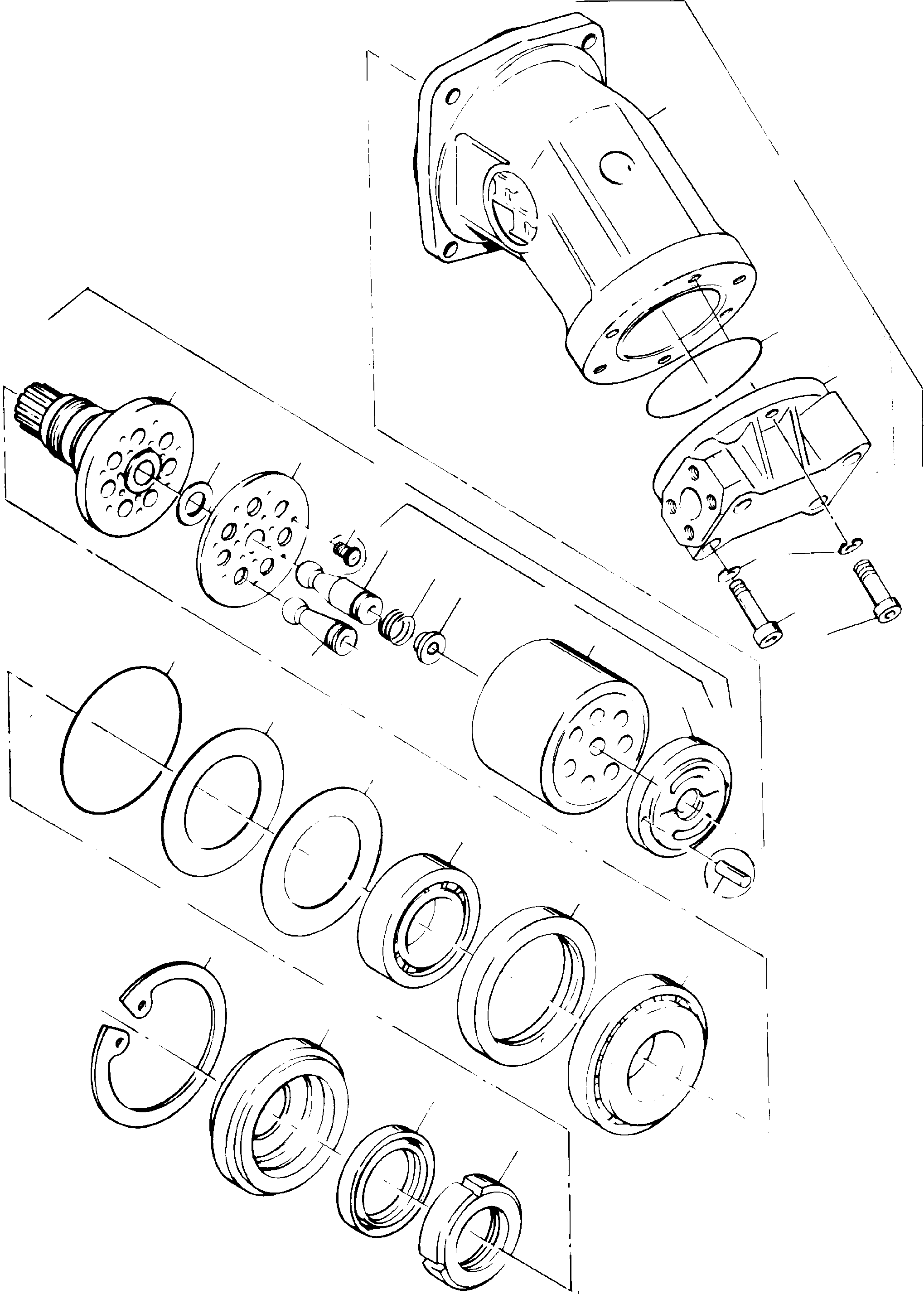

01 |
358 680 40
|
Hydr.-pump, assy. |
1 |
InternBDB: Hydromatik A2F 0 45/61 R-PZB 05 411 585 AT-Nr. 668 841
|
|
|
|
02 |
|
Housing |
1 |
InternBDB: 411 476 | InternKon: 211.16.45.41 / 03
|
|
|
|
03 |
319 147 99
|
Screw |
2 |
InternBDB: M10x25 /912 | InternKon: 211.16.45.41 / 07
|
|
|
|
04 |
343 855 99
|
Lock washer |
6 |
InternBDB: 10 /7980 | InternKon: 211.16.45.41 / 08
|
|
|
|
05 |
319 431 99
|
Screw |
4 |
InternBDB: M10x60 /912 | InternKon: 211.16.45.41 / 10
|
|
|
|
06 |
754 473
|
Connection plate |
1 |
InternBDB: 411 580 | InternKon: 211.16.45.41 / 04
|
|
|
|
07 |
501 811 98
|
O-ring |
1 |
InternBDB: 72,62x3,53 233-7507 | InternKon: 211.16.45.41 / 06
|
|
|
|
08 |
345 292 99
|
Pin |
1 |
InternBDB: 5 M6x10 /7-ST | InternKon: 211.16.45.41 / 05
|
|
|
|
09 |
754 474
|
Transmission, assy.
fig-nos: 10,17-30 |
1 |
InternBDB: 411 521 | InternKon: 211.16.45.41 / 01
|
|
|
|
10 |
754 475
|
Transmission, assy.
fig-nos. 11-16 |
1 |
InternBDB: 418 333
|
|
|
|
11 |
754 476
|
Control plate |
1 |
InternBDB: 409 874 | InternKon: 201.16.07.92 / 02
|
|
|
|
12 |
754 477
|
Cylinder |
1 |
InternBDB: 409 878 | InternKon: 201.16.07.92 / 01
|
|
|
|
13 |
754 478
|
Spring plate |
1 |
InternBDB: 416 972 | InternKon: 201.16.07.92 / 06
|
|
|
|
14 |
754 479
|
Cup spring |
4 |
InternBDB: 409 883 | InternKon: 201.16.07.92 / 07
|
|
|
|
15 |
754 480
|
Trunnion |
1 |
InternBDB: 409 879 | InternKon: 201.16.07.92 / 03
|
|
|
|
16 |
754 481
|
Piston with piston ring |
7 |
InternBDB: 417 822 +2x 156 207 | InternKon: 201.16.07.92 / 04
|
|
|
|
17 |
754 482
|
Screw, burnished |
7 |
InternBDB: M5x12 /7985 156 201 | InternKon: 201.16.07.10 / 20
|
|
|
|
18 |
754 483
|
Withdrawal plate |
1 |
InternBDB: 417 823 | InternKon: 201.16.07.10 / 07
|
|
|
|
19 |
754 484
|
Disk |
1 |
InternBDB: 409 895 | InternKon: 201.16.07.10 / 05
|
|
|
|
20 |
754 485
|
Drive shaft with bearing set
with fig-nos: 21-23,27 |
1 |
InternBDB: 419 761 | InternKon: 201.16.07.10 / 02
|
|
|
|
21 |
|
Roller bearing
These parts are not sold
separately |
1 |
InternBDB: 156 449 T 7 FC 045 DIN ISO 355 | InternKon: 201.16.07.10 / 10
|
|
|
|
22 |
|
Race
These parts are not sold
separately |
1 |
InternBDB: 411 513 | InternKon: 201.16.07.10 / 03
|
|
|
|
23 |
|
Roller bearing
These parts are not sold
separately |
1 |
InternBDB: 32 008X /720 | InternKon: 201.16.07.10 / 11
|
|
|
|
24 |
754 486
|
Shim ring 70x95x0.1 |
2 |
InternBDB: 156 447 | InternKon: 201.16.07.10 / 17
|
|
|
|
25 |
754 487
|
Shim ring 70x95x0.3 |
1 |
InternBDB: 156 448 | InternKon: 201.16.07.10 / 18
|
|
|
|
26 |
950 365
|
O-ring |
1 |
InternBDB: 88,50x3,53 238-7507 | InternKon: 201.16.07.10 / 15
|
|
|
|
27 |
|
Groove nut
These parts are not sold
separately |
1 |
InternBDB: 156 220 | InternKon: 201.16.07.10 / 09
|
|
|
|
28 |
992 679
|
Shaft seal
No field repair item |
1 |
InternBDB: 35x52x6 BABSL 0,5 Drallfrei | InternKon: 201.16.07.10 / 14
|
|
|
|
29 |
754 488
|
Cover
No field repair item |
1 |
InternBDB: 411 512 | InternKon: 201.16.07.10 / 04
|
|
|
|
30 |
342 669 99
|
Circlip |
1 |
InternBDB: 95x3 /472 | InternKon: 201.16.07.10 / 12
|
|
|
|
31 |
754 489
|
Cover assy.
with fig-no. 28 |
1 |
InternBDB: 411 512 + 150 975
|
|
|
|
|$$32 |
754 490
|
Repair kit
fig-nos. 07,26,28,29 |
-2 |
InternBDB: E-ST
|
|
|
|
|$$33 |
973 125
|
Fluid sealing 50 ml
to fig-no: 17 |
-2 |
InternBDB: Loctite 241
|
|
|
|
|$$34 |
989 946
|
Fluid sealing 50 ml
(pipe thread) |
-2 |
InternBDB: Loctite 572
|
|
