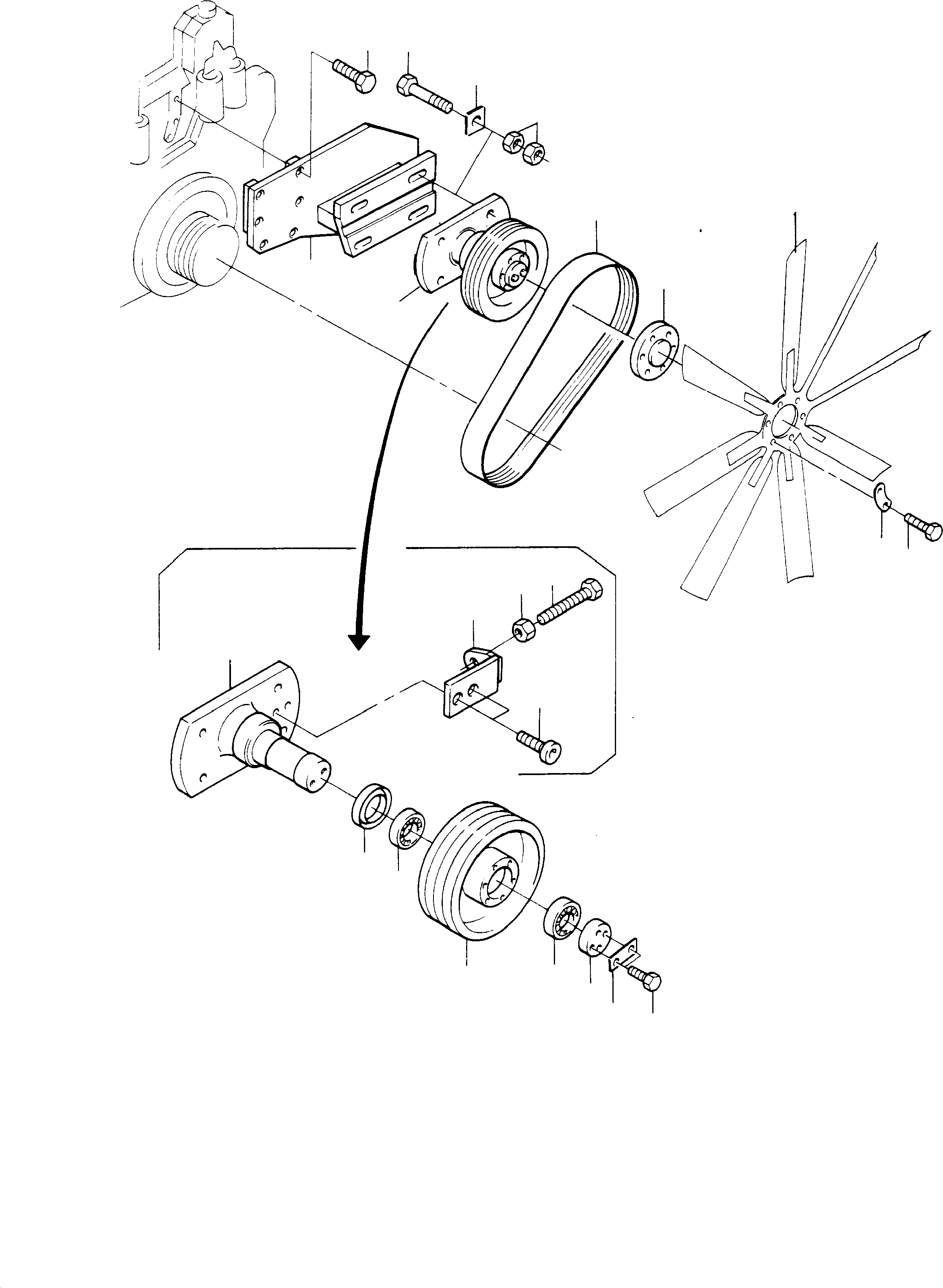

01 |
428 994 40
|
Fan bar |
1 |
InternKon: 386 903 40 / 11
|
|
|
|
02 |
505 115 98
|
Bolt |
6 |
InternBDB: 3/4-10 UNC x8 10.9 010 500 99 | InternKon: 386 903 40 / 17
|
|
|
|
03 |
308 321 99
|
Bolt |
4 |
InternBDB: M16x90 /931 10.9 | InternKon: 386 903 40 / 22
|
|
|
|
04 |
266 996 40
|
Washer |
4 |
InternKon: 386 903 40 / 15
|
|
|
|
05 |
332 355 99
|
Nut |
8 |
InternBDB: M 16 /934 10 | InternKon: 386 903 40 / 44
|
|
|
|
06 |
269 275 40
|
Drive belt |
1 |
InternBDB: Gates 23 K-1800 | InternKon: 386 903 40 / 2
|
|
|
|
07 |
429 790 40
|
Spacer block |
1 |
InternKon: 386 903 40 / 14
|
|
|
|
08 |
322 664 40
|
Fan |
1 |
InternBDB: GM 514 4021 60" | InternKon: 386 903 40 / 79
|
|
|
|
09 |
322 677 40
|
Locking plate |
3 |
InternKon: 386 903 40 / 10
|
|
|
|
10 |
308 614 99
|
Bolt |
6 |
InternBDB: M12x120 /931 | InternKon: 386 903 40 / 23
|
|
|
|
15 |
282 612 40
|
Fan drive, assy. |
1 |
InternKon: 386 903 40 / 12
|
|
|
|
16 |
261 795 40
|
Flange shaft, assy. |
1 |
InternKon: 282 612 40 / 1
|
|
|
|
17 |
261 796 40
|
Flange shaft |
1 |
InternKon: 261 795 40 / 1
|
|
|
|
18 |
334 285 40
|
Trestle |
1 |
InternKon: 261 795 40 / 2
|
|
|
|
19 |
267 091 40
|
Set screw |
1 |
InternKon: 261 795 40 / 3
|
|
|
|
20 |
332 338 99
|
Nut |
1 |
InternBDB: M 20 /934 | InternKon: 261 795 40 / 4
|
|
|
|
21 |
534 052 99
|
Screw |
2 |
InternBDB: M16x40 /6912 10.9 | InternKon: 261 795 40 / 5
|
|
|
|
22 |
501 298 98
|
Shaft seal |
1 |
InternBDB: A 95x125x12/ 3760 | InternKon: 282 612 40 / 5
|
|
|
|
23 |
361 723 99
|
Roller bearing |
2 |
InternBDB: 32015 75x115x25 | InternKon: 282 612 40 / 4
|
|
|
|
24 |
282 613 40
|
Pulley |
1 |
InternKon: 282 612 40 / 2
|
|
|
|
25 |
261 794 40
|
End plate |
1 |
InternKon: 282 612 40 / 3
|
|
|
|
26 |
003 185 98
|
Locking plate |
1 |
InternBDB: A 90x40x1 010 939 99 | InternKon: 282 612 40 / 7
|
|
|
|
27 |
307 844 99
|
Bolt |
2 |
InternBDB: M20x45 /933 | InternKon: 282 612 40 / 6
|
|
