604 596 40
|

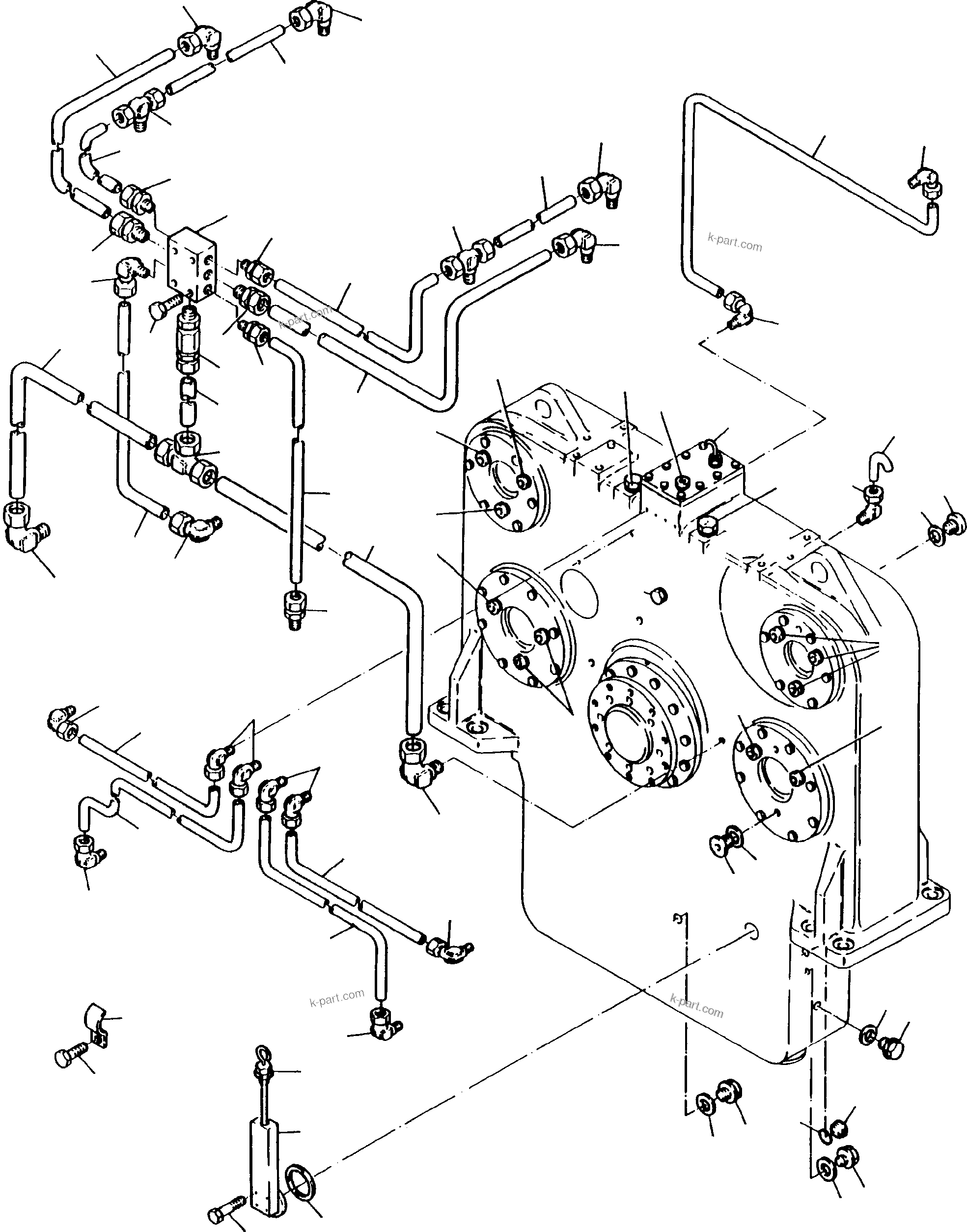

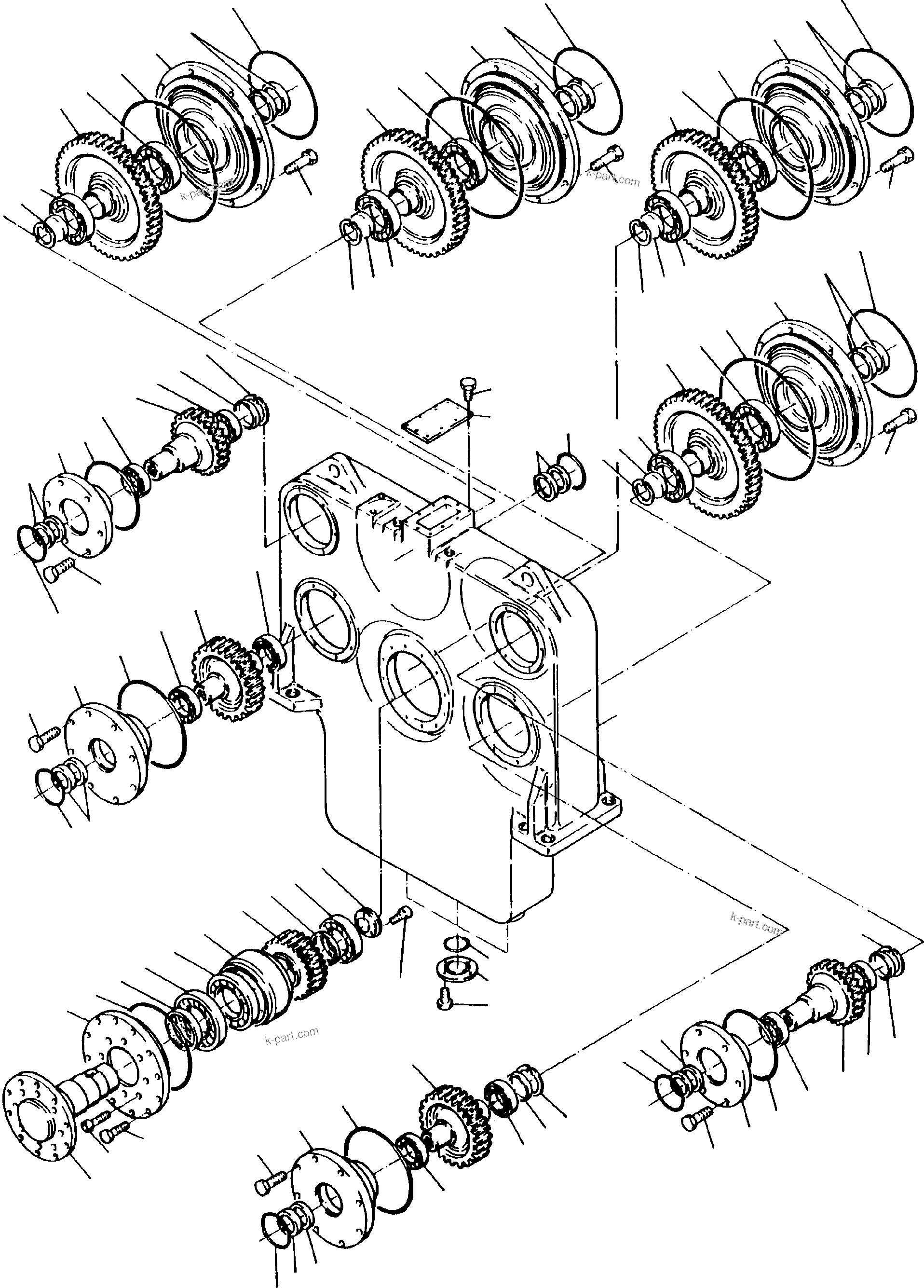

Pump distributor gear assy. |
1 |
InternBDB: GFC 410-1018 AT-Nr. 710 104 73
|
|
|
|
? |
|
Housing |
1 |
InternBDB: 0/0125/9314/4 | InternKon: 114-1220c / 01
|
|
|
|
? |
806 665 73
|
Drive shaft unit,assy.
Fig-no.02,03,09-12,20,29-33
39,45,48,50,66 |
1 |
InternBDB: E-St
|
|
|
|
? |
806 750 73
|
Drive gear z = 42 |
1 |
InternBDB: 2/0303/9416/0 | InternKon: 114-1220c / 03
|
|
|
|
? |
806 222 73
|
Spur gear |
4 |
InternBDB: 1/0256/9530/1 | InternKon: 114-1220c / 04
|
|
|
|
? |
806 249 73
|
Spur gear |
1 |
InternBDB: 2/0256/9543/2 | InternKon: 114-1220c / 05
|
|
|
|
? |
806 250 73
|
Spur gear |
1 |
InternBDB: 2/0256/9544/1 | InternKon: 114-1220c / 06
|
|
|
|
? |
806 251 73
|
Spur gear |
1 |
InternBDB: 2/0256/9545/0 | InternKon: 114-1220c / 07
|
|
|
|
? |
806 252 73
|
Spur gear |
1 |
InternBDB: 2/0256/9546/0 | InternKon: 114-1220c / 08
|
|
|
|
? |
806 760 73
|
Intermediate ring |
1 |
InternBDB: 4/0403/9338/1 | InternKon: 114-1220c / 09
|
|
|
|
? |
806 763 73
|
Race |
1 |
InternBDB: 2/0403/9339/0 | InternKon: 114-1220c / 10
|
|
|
|
? |
806 761 73
|
Retainer |
1 |
InternBDB: 4/0408/9855/0 | InternKon: 114-1220c / 11
|
|
|
|
? |
806 762 73
|
Sealing cover |
1 |
InternBDB: 1/0421/9618/1 | InternKon: 114-1220c / 12
|
|
|
|
? |
805 529 73
|
Cover |
3 |
InternBDB: 4/0438/9518/0 | InternKon: 114-1220c / 13
|
|
|
|
? |
806 255 73
|
Cover |
1 |
InternBDB: 3/0438/9517/1 | InternKon: 114-1220c / 14
|
|
|
|
? |
806 227 73
|
Flange |
4 |
InternBDB: 1/0582/9061/1 | InternKon: 114-1220c / 15
|
|
|
|
? |
806 256 73
|
Flange |
1 |
InternBDB: 1/0582/9063/1 | InternKon: 114-1220c / 16
|
|
|
|
? |
806 257 73
|
Flange |
1 |
InternBDB: 1/0582/9064/1 | InternKon: 114-1220c / 17
|
|
|
|
? |
806 228 73
|
Flange |
1 |
InternBDB: 1/0582/9065/2 | InternKon: 114-1220c / 18
|
|
|
|
? |
806 229 73
|
Flange |
1 |
InternBDB: 1/0582/9066/2 | InternKon: 114-1220c / 19
|
|
|
|
? |
806 765 73
|
Intermediate ring |
1 |
InternBDB: 4/0403/9340/1 | InternKon: 114-1220c / 123
|
|
|
|
? |
805 537 73
|
Oil distributor block |
1 |
InternBDB: 3/0940/9146/0 | InternKon: 114-1220c / 150
|
|
|
|
? |
806 232 73
|
Metering unit |
1 |
InternBDB: 3/0940/9151/0 | InternKon: 114-1220c / 22
|
|
|
|
? |
806 233 73
|
Gasket |
1 |
InternBDB: LF 468 040 | InternKon: 114-1220c / 23
|
|
|
|
? |
757 230 73
|
Dipstick |
1 |
InternBDB: LF 432 154 | InternKon: 114-1220c / 24
|
|
|
|
? |
806 759 73
|
Joint shaft flange |
1 |
InternBDB: 2/0231/9042/0 | InternKon: 114-1220c / 02
|
|
|
|
? |
360 574 99
|
Ball bearing |
8 |
InternBDB: 6224 /625 | InternKon: 114-1220c / 26
|
|
|
|
? |
508 998 98
|
Roller bearing |
4 |
InternBDB: NJ 2216 E /5412 | InternKon: 114-1220c / 27
|
|
|
|
? |
360 564 99
|
Ball bearing |
4 |
InternBDB: 6214 /625 | InternKon: 114-1220c / 28
|
|
|
|
? |
361 227 99
|
Roller bearing |
1 |
InternBDB: NU 226 ECMA /5412 | InternKon: 114-1220c / 29
|
|
|
|
? |
508 999 98
|
Roller bearing |
1 |
InternBDB: NJ 2220 ECMA /5412 | InternKon: 114-1220c / 30
|
|
|
|
? |
508 997 98
|
Bearing |
1 |
InternBDB: QJ 226 N2 MA/ 628 | InternKon: 114-1220c / 31
|
|
|
|
? |
958 388
|
O-ring |
1 |
InternBDB: 130x4 | InternKon: 114-1220c / 124
|
|
|
|
? |
806 764 73
|
Shaft seal |
1 |
InternBDB: 160x190x15 BAUM Viton | InternKon: 114-1220c / 33
|
|
|
|
? |
806 258 73
|
Shaft seal |
6 |
InternBDB: Sonderanf. 80x100x10 B2 LF 461 362 | InternKon: 114-1220c / 34
|
|
|
|
? |
509 521 98
|
Shaft seal |
4 |
InternBDB: 60x80x10 B2 Viton | InternKon: 114-1220c / 35
|
|
|
|
? |
508 921 98
|
Shaft seal |
8 |
InternBDB: 115x140x12 B2 Viton | InternKon: 114-1220c / 36
|
|
|
|
? |
500 414 98
|
O-ring |
4 |
InternBDB: 400x5 | InternKon: 114-1220c / 37
|
|
|
|
? |
508 919 98
|
O-ring |
4 |
InternBDB: 550x5 | InternKon: 114-1220c / 38
|
|
|
|
? |
638 958 44
|
O-ring |
1 |
InternBDB: 330x4 | InternKon: 114-1220c / 39
|
|
|
|
? |
730 187 44
|
O-ring |
1 |
InternBDB: 160x3 | InternKon: 114-1220c / 40
|
|
|
|
? |
006 657 98
|
O-ring |
1 |
InternBDB: 125x3 | InternKon: 114-1220c / 41
|
|
|
|
? |
972 111
|
O-ring |
2 |
InternBDB: 270x3 | InternKon: 114-1220c / 42
|
|
|
|
? |
082 821
|
O-ring |
2 |
InternBDB: 80x3 | InternKon: 114-1220c / 43
|
|
|
|
? |
972 074
|
O-ring |
3 |
InternBDB: 92x3 | InternKon: 114-1220c / 44
|
|
|
|
? |
510 601 98
|
Bolt |
3 |
InternBDB: M12x35 /912 | InternKon: 114-1220c / 45
|
|
|
|
? |
307 847 99
|
Bolt |
32 |
InternBDB: M20x60 /933 | InternKon: 114-1220c / 46
|
|
|
|
? |
307 850 99
|
Bolt |
12 |
InternBDB: M12x35 /933 | InternKon: 114-1220c / 47
|
|
|
|
? |
308 603 99
|
Bolt |
12 |
InternBDB: M12x45 /933 | InternKon: 114-1220c / 48
|
|
|
|
? |
307 779 99
|
Bolt |
22 |
InternBDB: M10x30 /933 | InternKon: 114-1220c / 49
|
|
|
|
? |
320 216 99
|
Bolt |
8 |
InternBDB: M16x55 /912 | InternKon: 114-1220c / 50
|
|
|
|
? |
307 806 99
|
Bolt |
4 |
InternBDB: M12x40 /933 | InternKon: 114-1220c / 51
|
|
|
|
? |
313 395 99
|
Plug |
31 |
InternBDB: M12x1,5 /908 | InternKon: 114-1220c / 52
|
|
|
|
? |
313 179 99
|
Plug |
1 |
InternBDB: R 1 1/2" /910 | InternKon: 114-1220c / 53
|
|
|
|
? |
313 322 99
|
Plug |
1 |
InternBDB: R 1/2" /910 | InternKon: 114-1220c / 54
|
|
|
|
? |
508 923 98
|
Plug |
1 |
InternBDB: R 3/4" NPT/ 906 | InternKon: 114-1220c / 55
|
|
|
|
? |
313 267 99
|
Plug |
1 |
InternBDB: M22x1,5 /910 | InternKon: 114-1220c / 56
|
|
|
|
? |
313 126 99
|
Plug |
2 |
InternBDB: M48x2 /910 | InternKon: 114-1220c / 57
|
|
|
|
? |
339 879 99
|
Seal ring |
31 |
InternBDB: A12x18 /7603 | InternKon: 114-1220c / 58
|
|
|
|
? |
339 907 99
|
Seal ring |
1 |
InternBDB: A22x27 /7603 | InternKon: 114-1220c / 59
|
|
|
|
? |
339 967 99
|
Seal ring |
3 |
InternBDB: A48x55 /7603 | InternKon: 114-1220c / 60
|
|
|
|
? |
806 234 73
|
Tube pole cap |
4 |
InternBDB: LF 451 262 | InternKon: 114-1220c / 62
|
|
|
|
? |
806 259 73
|
Tube pole cap |
3 |
InternBDB: LF 451 261 | InternKon: 114-1220c / 63
|
|
|
|
? |
342 651 99
|
Circlip |
3 |
InternBDB: 52x2 /472 | InternKon: 114-1220c / 64
|
|
|
|
? |
342 670 99
|
Circlip |
4 |
InternBDB: 100x3 /472 | InternKon: 114-1220c / 65
|
|
|
|
? |
345 615 99
|
Pin |
1 |
InternBDB: 8M6x18 /6325 | InternKon: 114-1220c / 66
|
|
|
|
? |
806 260 73
|
Nozzle |
2 |
InternBDB: LF 426 028 | InternKon: 114-1220c / 68
|
|
|
|
? |
372 732 99
|
Union |
15 |
InternBDB: WE 8 LM | InternKon: 114-1220c / 69
|
|
|
|
? |
006 894 98
|
Union |
3 |
InternBDB: DSVW 10 LR | InternKon: 114-1220c / 70
|
|
|
|
? |
372 615 99
|
Union |
1 |
InternBDB: T 18 L | InternKon: 114-1220c / 71
|
|
|
|
? |
806 261 73
|
Union |
2 |
InternBDB: LF 437 339 | InternKon: 114-1220c / 72
|
|
|
|
? |
370 314 99
|
Union |
2 |
InternBDB: GE 15 LR | InternKon: 114-1220c / 73
|
|
|
|
? |
372 107 99
|
Union |
2 |
InternBDB: EVT 10 L | InternKon: 114-1220c / 74
|
|
|
|
? |
372 191 99
|
Union |
2 |
InternBDB: EVW 10 LR | InternKon: 114-1220c / 75
|
|
|
|
? |
806 262 73
|
Valve |
1 |
InternBDB: LF 434 082 | InternKon: 114-1220c / 76
|
|
|
|
? |
372 423 99
|
Union |
1 |
InternBDB: GE 8 LM | InternKon: 114-1220c / 77
|
|
|
|
? |
215 805 99
|
Pipe Ш 8
Bulk ware, state length
required |
5 |
InternBDB: 8x1 /2391 | InternKon: 114-1220c / 78
|
|
|
|
? |
215 812 99
|
Pipe Ш 18
Bulk ware, state length
required |
3 |
InternBDB: 18x1,5 /2391 | InternKon: 114-1220c / 79
|
|
|
|
? |
215 811 99
|
Pipe Ш 15
Bulk ware, state length
required |
2 |
InternBDB: 15x1,5 /2391 | InternKon: 114-1220c / 80
|
|
|
|
? |
806 236 73
|
Pipe bend |
5 |
InternBDB: 4/0995/9091/0 | InternKon: 114-1220c / 81
|
|
|
|
? |
214 768 99
|
Pipe Ш 10
Bulk ware, state length
required |
6 |
InternBDB: 10x1,5 /2391 | InternKon: 114-1220c / 82
|
|
|
|
? |
509 001 98
|
Pipe clamp |
5 |
InternBDB: 9 mm /1596 | InternKon: 114-1220c / 92
|
|
|
|
? |
509 002 98
|
Bolt |
5 |
InternBDB: M6x8 /933 | InternKon: 114-1220c / 93
|
|
|
|
? |
638 958 44
|
O-ring |
2 |
InternBDB: 330x4 | InternKon: 114-1220c / 96
|
|
|
|
? |
006 657 98
|
O-ring |
2 |
InternBDB: 125x3 | InternKon: 114-1220c / 97
|
|
|
|
? |
307 805 99
|
Bolt |
16 |
InternBDB: M12x35 /933 | InternKon: 114-1220c / 98
|
|
|
|
? |
308 605 99
|
Bolt |
4 |
InternBDB: M12x55 /931 | InternKon: 114-1220c / 99
|
|
|
|
? |
339 918 99
|
Seal ring |
1 |
InternBDB: A26x32 /7603 | InternKon: 114-1220c / 100
|
|
|
|
? |
372 760 99
|
Union |
2 |
InternBDB: WE 18 LR | InternKon: 114-1220c / 112
|
|
|
|
? |
370 312 99
|
Union |
3 |
InternBDB: GE 10 LR | InternKon: 114-1220c / 113
|
|
|
|
? |
370 332 99
|
Union |
2 |
InternBDB: WE 10 LR | InternKon: 114-1220c / 114
|
|
|
|
? |
313 295 99
|
Plug |
1 |
InternBDB: M18x1,5 /910 | InternKon: 114-1220c / 119
|
|
|
|
? |
339 897 99
|
Seal ring |
1 |
InternBDB: A18x22 /7603 | InternKon: 114-1220c / 120
|
|
|
|
? |
806 242 73
|
Plug |
4 |
InternBDB: LF 469 089 | InternKon: 114-1220c / 125
|
|
|
|
? |
806 263 73
|
Plug |
1 |
InternBDB: LF 469 069 | InternKon: 114-1220c / 129
|
|
|
|
? |
806 264 73
|
Plug |
3 |
InternBDB: LF 469 044 | InternKon: 114-1220c / 126
|
|
|
|
? |
806 243 73
|
Plug |
1 |
InternBDB: LF 469 041 | InternKon: 114-1220c / 130
|
|
