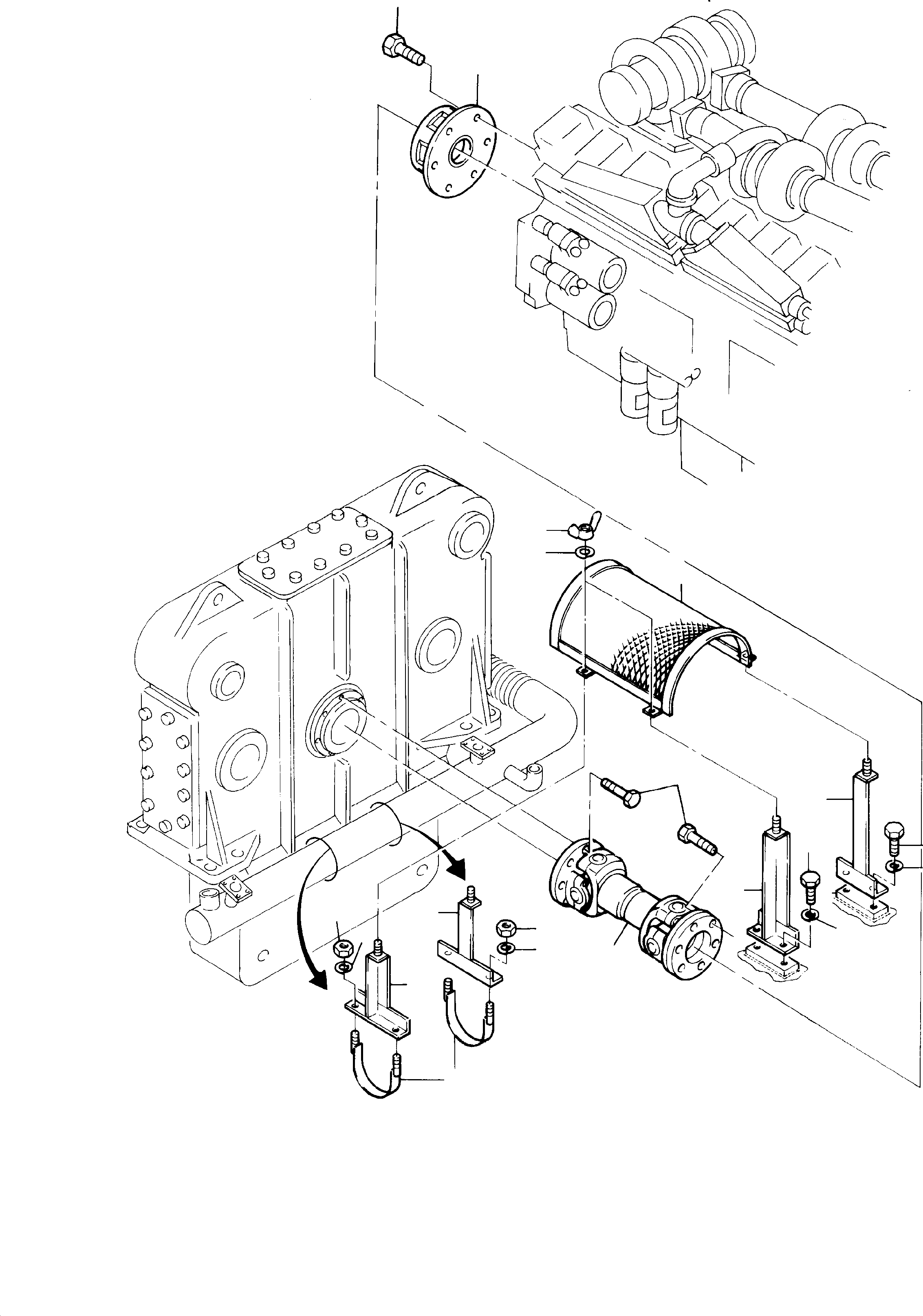

Komatsu parts book diagram for H285 S/N 78099: INSTALLATION - COUPLING AND JOINT SHAFT, CU-ENGINE

02 03 05 06 07 08 09 10 11 12 13 14 14 14 14 14 15 15 16 16

	#	Part Number	Partname	Quantity	Options	Reference
	02	502 194 98	Bolt Standard	6	InternBDB: 5/8-11 UNC x 2" /10.9
	02	506 016 98	Bolt Cold weather design	6	InternBDB: 5/8-11 UNC x 2" /10.9 kaltz
	03		Coupling	1	InternBDB: 440 081 40 \| InternKon: 386 903 40 / 6	090-3664
	05		Joint shaft	1	InternBDB: 324 481 40 \| InternKon: 386 909 40 / 8	090-7003
	06	534 058 99	Bolt Standard	20	InternBDB: M18 x 40 / 933 10.9 \| InternKon: 386 909 40 / 4
	06	504 304 98	Bolt Cold weather design	20	InternBDB: M18 x 40 / 933 10.9 kaltz \| InternKon: 386 909 40 / 4
	07	389 890 40	Covering	1	InternKon: 389 897 40 / 1
	08	389 882 40	Bracket	1	InternKon: 389 897 40 / 2
	09	389 883 40	Bracket	1	InternKon: 389 897 40 / 3
	10	389 884 40	Bracket	1	InternKon: 389 897 40 / 4
	11	389 885 40	Bracket	1	InternKon: 389 897 40 / 5
	12	366 589 40	Clamp	2	InternKon: 389 897 40 / 6
	13	338 011 99	Wing nut	4	InternBDB: M 8 / 315 \| InternKon: 389 897 40 / 7
	14	346 510 99	Lock washer	12	InternBDB: 8 / 128 \| InternKon: 386 903 40 / 8
	15	332 111 99	Nut	4	InternBDB: M8 / 934 \| InternKon: 386 903 40 / 9
	16	307 750 99	Bolt	4	InternBDB: M8 x 15 / 933 \| InternKon: 386 903 40 / 11

Komatsu H285 S/N 78099 parts catalog PDF

INSTALLATION - COUPLING AND JOINT SHAFT, CU-ENGINE (114-1215c) in H285 S/N 78099. Diagram image and parts list.
