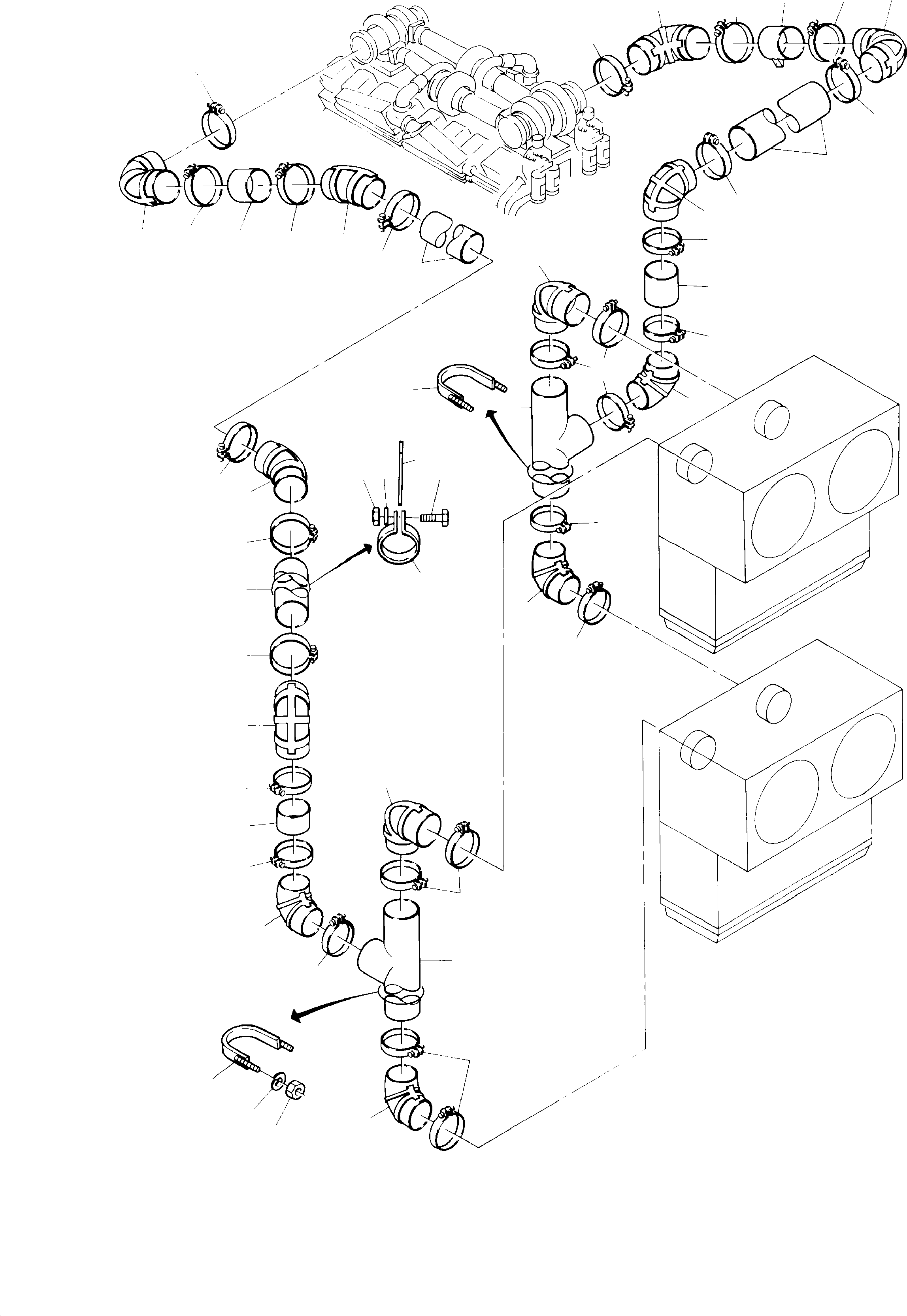

Komatsu parts book diagram for H285 S/N 78099: ENGINE AIR INTAKE LINES

01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 02 02 02 02 02 02 02 02 02 02 02 03 04 05 05 06 06 07 07 08 09 10 11 11 12 13 14 15 16 17 18

	#	Part Number	Partname	Quantity	Options	Reference
	01	551 149 40	Clamp (2-teilig)	26	InternBDB: Rasmussen TBS 220x25 \| InternKon: 449 100 40 / 17
	02	226 985 40	Suction hose	11	InternBDB: Donaldson P 11-2605 90 ? -8" \| InternKon: 449 100 40 / 5
	03	386 939 40	Suction pipe	1	InternKon: 449 100 40 / 10
	04	449 104 40	Suction pipe	1	InternKon: 449 100 40 / 9
	05	366 578 40	Suction pipe	2	InternKon: 449 100 40 / 8
	06	366 565 40	Suction pipe	2	InternKon: 449 100 40 / 3
	07	282 676 40	Clamp	2	InternKon: 449 100 40 / 25
	08	343 110 99	Lock washer	4	InternBDB: 10 /128
	09	332 113 99	Nut	4	InternBDB: M 10 /934 \| InternKon: 449 100 40 / 30
	10	444 996 40	Suction pipe	1	InternKon: 449 100 40 / 11
	11	368 179 40	Suction hose	2	InternBDB: Donaldson P 11-2606 45 ? \| InternKon: 449 100 40 / 6
	12	449 106 40	Suction pipe	1	InternKon: 449 100 40 / 12
	13	366 583 40	Suction pipe	1	InternKon: 449 100 40 / 13
	14	386 940 40	Clamp	3	InternKon: 449 100 40 / 26
	15	449 110 40	Retainer	3	InternKon: 449 100 40 / 27
	16	307 756 99	Bolt	3	InternBDB: M8x30 /933 \| InternKon: 449 100 40 / 28
	17	343 108 99	Lock washer	3	InternBDB: 8 /128
	18	332 111 99	Nut	3	InternBDB: M 8 /934 \| InternKon: 449 100 40 / 29

Komatsu H285 S/N 78099 parts catalog PDF

ENGINE AIR INTAKE LINES (114-1255b) in H285 S/N 78099. Diagram image and parts list.
