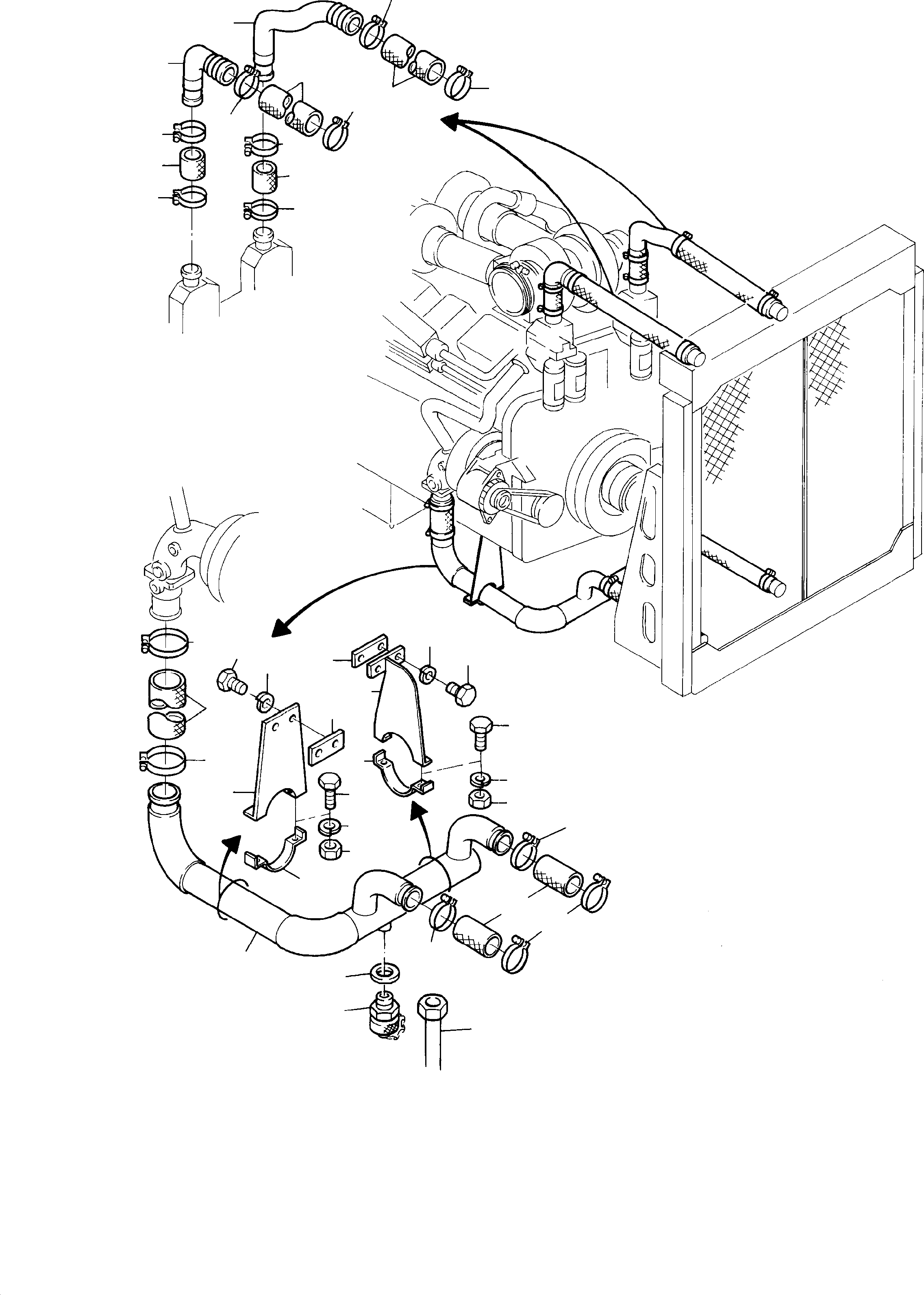

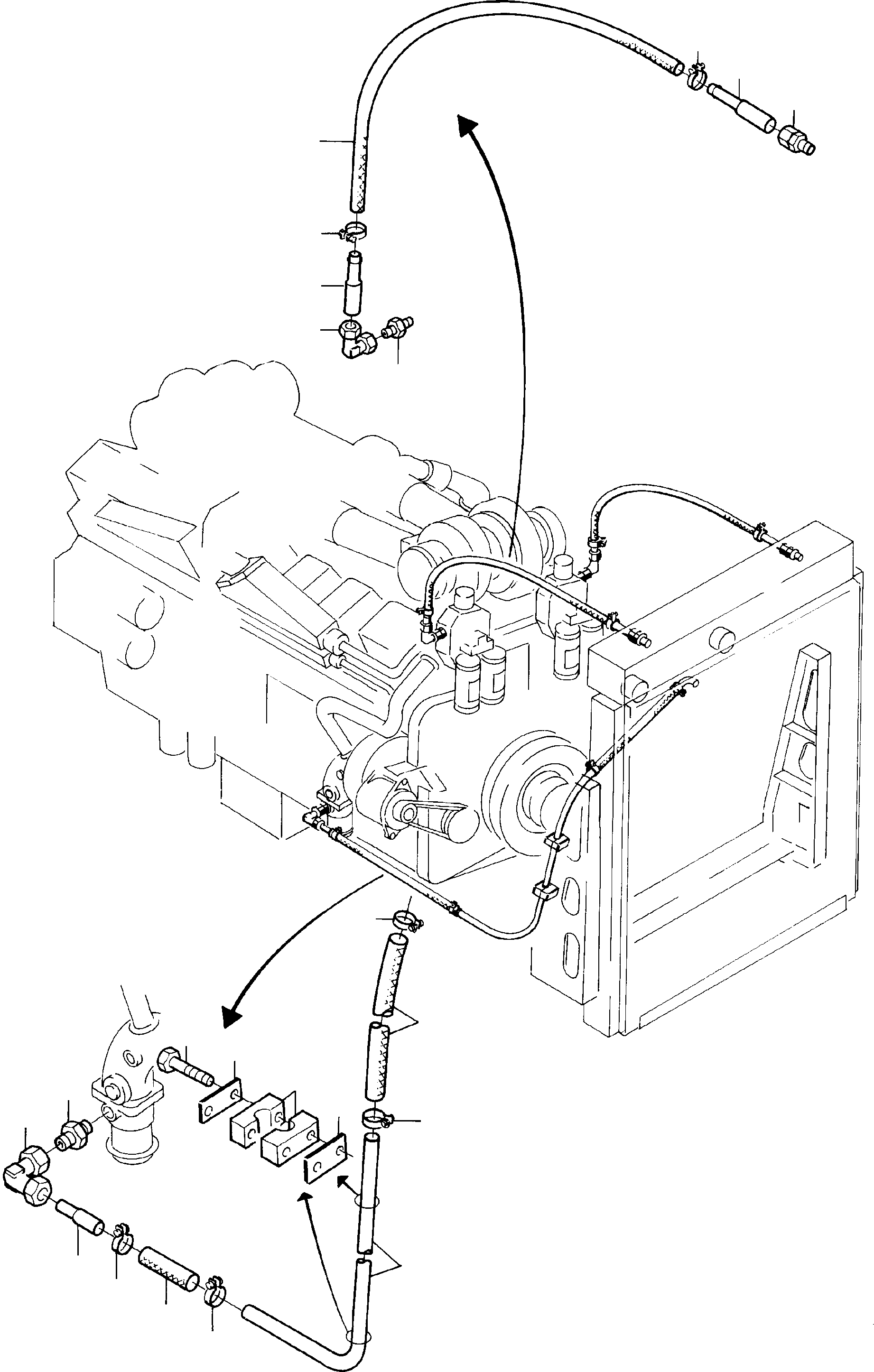

COOLANT LINES | H285 S/N 78099 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	500 385 98	Clamp	2	InternBDB: 1 S 88x20 010 422 99 \| InternKon: 371 500 40 / 20
02	324 241 40	Radiator hose DN 75x300 lg. Bulk ware, state length required	2	InternBDB: Angst u. Pfi. 06.53.322.075 \| InternKon: 371 500 40 / 14
03	519 854 40	Water pipe	1	InternKon: 371 500 40 / 5
04	371 508 40	Water pipe	1	InternKon: 371 500 40 / 4
05	330 969 40	Radiator hose DN 90x300 lg. Bulk ware, state length required	2	InternBDB: 06.53.322.090 \| InternKon: 371 500 40 / 13
06	005 872 98	Clamp	4	InternBDB: 1 S 105x25 010 422 99 \| InternKon: 371 500 40 / 48
07	330 969 40	Radiator hose DN 90x150 lg. Bulk ware, state length required	2	InternBDB: 06.53.322.090 \| InternKon: 371 500 40 / 13
08	500 239 98	Clamp	2	InternBDB: 1 S 142x30 SK 2-teilig 010 422 99 \| InternKon: 371 500 40 / 18
09	330 970 40	Radiator hose DN 127x600lg. Bulk ware, state length required	1	InternBDB: 06.53.322.127 \| InternKon: 371 500 40 / 12
10	371 505 40	Water pipe	1	InternKon: 371 500 40 / 3
11	396 174 40	Holding plate	1	InternKon: 371 500 40 / 7
12	281 284 40	Clamp	2	InternKon: 371 500 40 / 8
13	281 282 40	Thread piece	1	InternKon: 371 500 40 / 9
14	371 513 40	Holding plate	1	InternKon: 371 500 40 / 6
15	281 283 40	Thread piece	1	InternKon: 371 500 40 / 10
16	307 802 99	Bolt	4	InternBDB: M12x25 /933 \| InternKon: 371 500 40 / 35
17	343 112 99	Lock washer	8	InternBDB: 12 /128 \| InternKon: 371 500 40 / 40
18	332 334 99	Nut	4	InternBDB: M 12 /934 \| InternKon: 371 500 40 / 33
19	307 805 99	Bolt	4	InternBDB: M12x35 /933 \| InternKon: 371 500 40 / 36
21	461 434 40	Drain cock	1	InternBDB: Roelex \| InternKon: 371 500 40 / 27
22	501 437 98	Clamp	4	InternBDB: 1S 102x20 \| InternKon: 371 500 40 / 49
23	007 506 98	Clamp	2	InternBDB: 1S 90x15 \| InternKon: 371 500 40 / 50
24	339 918 99	Seal	1	InternBDB: 26x32 /7603
25	490 586 40	Drain hose 2500 lg.	1
30	372 477 99	Union	1	InternBDB: GE 28-L / 1"-NPT 010 880 99 \| InternKon: 386 903 40 / 26
31	372 176 99	Union	1	InternBDB: DDL 28 /2353 \| InternKon: 386 903 40 / 28
32	282 623 40	Pipe	1	InternBDB: 28/30 \| InternKon: 386 903 40 / 30
33	005 880 98	Clamp	4	InternBDB: 1 S 42x20 010 422 99 \| InternKon: 371 500 40 / 21
34	244 515 40	Radiator hose DN 28x400 lg. Bulk ware, state length required	1	InternBDB: CAT 5 P 1252 \| InternKon: 371 500 40 / 15
35	244 515 40	Radiator hose DN 28x1000lg. Bulk ware, state length required	1	InternBDB: CAT 5 P 1252 \| InternKon: 371 500 40 / 15
36	371 517 40	Pipe Ш 30	1	InternKon: 371 500 40 / 11
37	534 005 99	Welding plate	2	InternBDB: ES 5 011 839 99 \| InternKon: 371 500 40 / 24
38	534 003 99	Half clamp	4	InternBDB: CS 5/30 \| InternKon: 371 500 40 / 26
39	534 004 99	Cover plate	2	InternBDB: DS 5 \| InternKon: 371 500 40 / 25
40	308 581 99	Bolt	4	InternBDB: M10x70 /931 \| InternKon: 371 500 40 / 31
41	255 913 40	Radiator hose DN6,3x1500lg. Bulk ware, state length required	2	InternBDB: ID 8 TCH OLN 2255-06 \| InternKon: 371 500 40 / 16
42	500 424 98	Clamp	4	InternBDB: 1 S 14x9 010 422 99 \| InternKon: 371 500 40 / 22
43	249 009 40	Pipe	4	InternBDB: 10/8 \| InternKon: 371 500 40 / 17
44	372 424 99	Union	2	InternBDB: CL 10 /2353 \| InternKon: 371 500 40 / 23
45	372 472 99	Union	2	InternBDB: GE 10-L / 1/4"-NPT 010 880 99 \| InternKon: 386 903 40 / 50
46	372 171 99	Union	2	InternBDB: DDL 10 /2353 \| InternKon: 386 903 40 / 51
