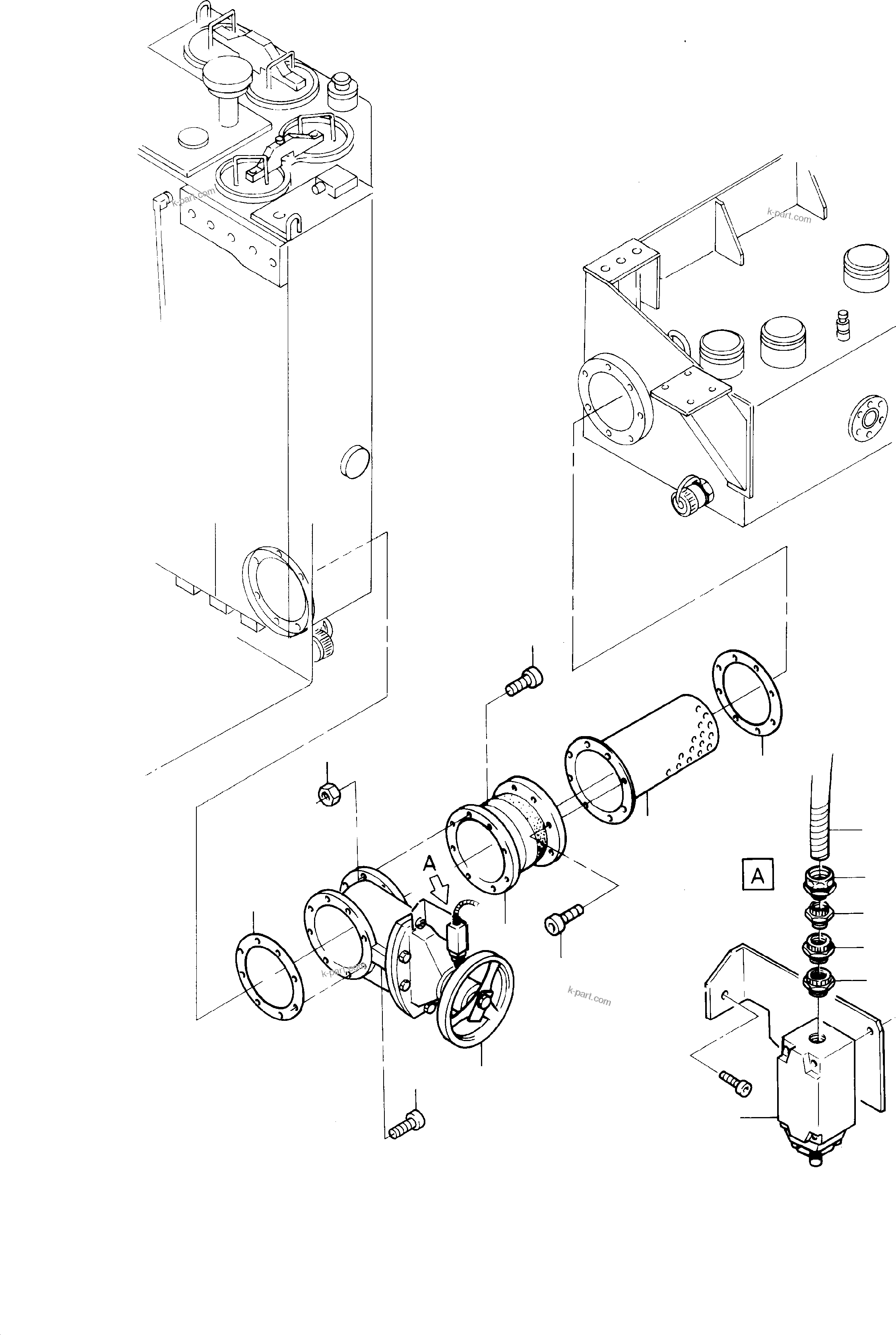

Komatsu parts book diagram for H285S S/N 78129: CONNECTION, MAIN AND SUCTION OIL-TANK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	385 773 40	Gasket	2	InternBDB: TL \| InternKon: 366 599 40 / 21
	?	358 683 40	Slider	1	InternBDB: VAG \| InternKon: 366 599 40 / 28
	?	440 723 40	Rubber-compensator	1	InternBDB: Stenflex A-1 PN 10 DN 200 Norm M \| InternKon: 366 599 40 / 29
	?	696 288 73	Replacement rubber	-2	InternBDB: A0/DN200
	?	490 067 40	Suction element	1	InternBDB: Hydac 4.413.478 \| InternKon: 366 599 40 / 30
	?	320 153 99	Screw	16	InternBDB: M20x55 /912 \| InternKon: 366 599 40 / 84
	?	319 314 99	Screw	8	InternBDB: M20x70 /912 10.9 \| InternKon: 366 599 40 / 85
	?	332 338 99	Nut	8	InternBDB: M 20 /934 \| InternKon: 366 599 40 / 88
	?	695 563 73	Limit switch	1	InternBDB: Siemens 3SE3 120-1C
	?	600 812 99	Reducing union	1	InternBDB: PG 13,5-11 246 6444
	?	600 909 99	Reducing union	1	InternBDB: PG 11-9
	?	502 921 98	Reducing union	1	InternBDB: PG 9-7
	?	323 949 40	Cable union	1	InternBDB: PG 7
	?	056 211 40	Protecting hose Bulk ware, state length required	-2	InternBDB: PG 7

Komatsu H285S S/N 78129 parts catalog PDF

CONNECTION, MAIN AND SUCTION OIL-TANK (114-1806a) in H285S S/N 78129. Diagram image and parts list.
