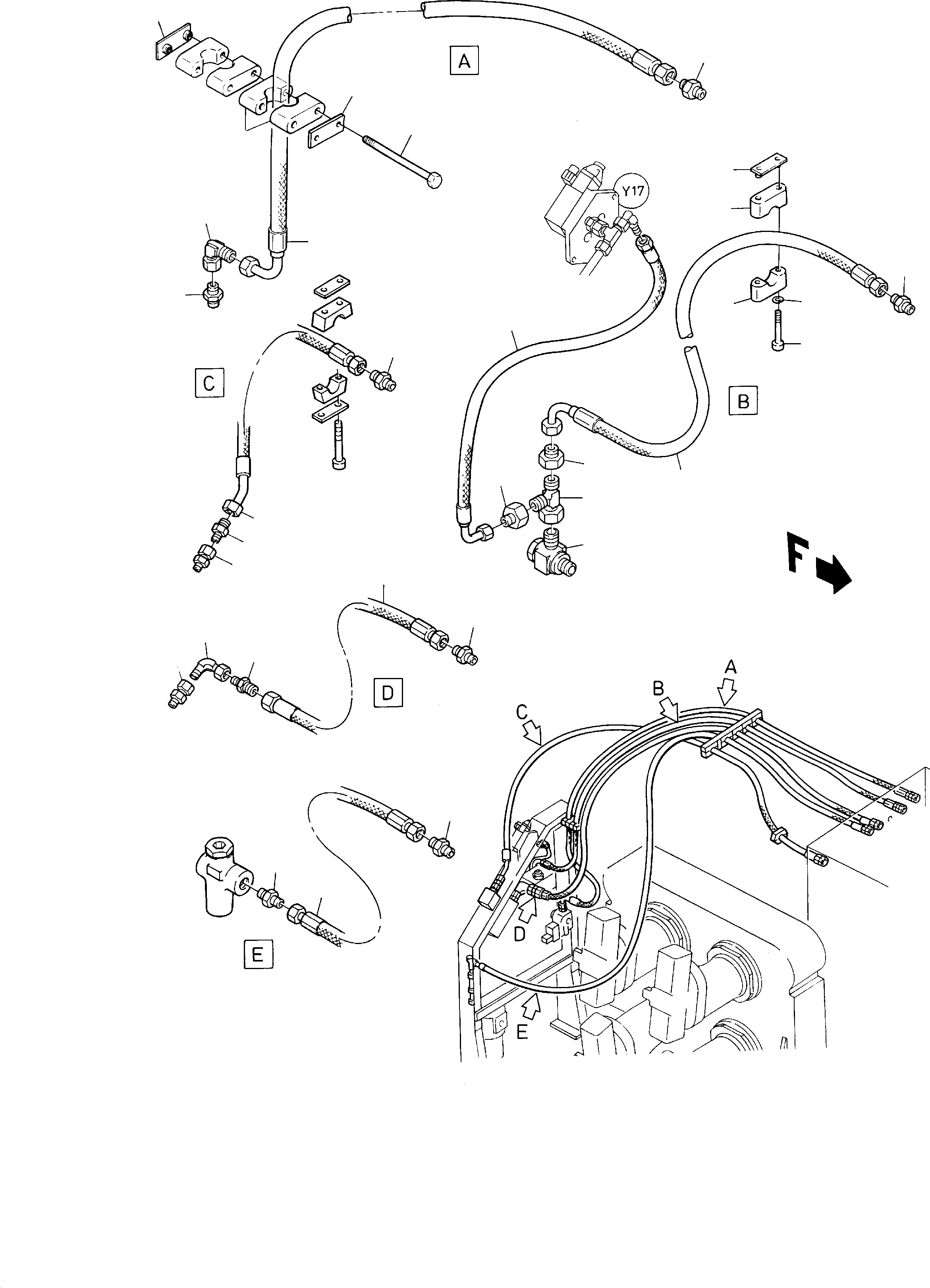

TANK LINES - CONTROL FRAME | H285S S/N 78129 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	534 005 99	Welding plate	1	InternBDB: ES 5 011 839 99
02	504 818 98	Half clamp	2	InternBDB: H-CS 5/38
03	534 004 99	Cover plate	1	InternBDB: DS 5
04	308 588 99	Screw	2	InternBDB: M10x130 /931
06	510 911 98	Hose assy. DN 25x2850 lg.	1	InternBDB: DOL 28 / DOL 28-90 \| InternKon: 641 300 40 / 145
08	374 431 99	Socket	1	InternBDB: L 28 M /3901 \| InternKon: 641 300 40 / 61
09	374 409 99	Socket	1	InternBDB: L 22 M /3901 \| InternKon: 641 300 40 / 162
14	510 905 98	Hose assy. DN 20x2700 lg.	1	InternBDB: DOL 22 / DOL 22-90 \| InternKon: 641 300 40 / 139
15	007 135 98	Union	1	InternBDB: 28-LM
16	534 020 99	Welding plate	1	InternBDB: E 5
17	502 143 98	Half clamp	2	InternBDB: H-C 5 /32
18	640 445 40	Hose assy. DN 10x340 lg.	1	InternBDB: DOL 12 / DOL 12-90 \| InternKon: 623 444 40 / 86
19	340 405 99	Washer	2	InternBDB: 6,4 /433
20	319 136 99	Screw	2	InternBDB: M6x50 /912
26	371 957 99	Union	1	InternBDB: FFL 28 \| InternKon: 623 444 40 / 40
27	372 917 99	Union	1	InternBDB: KOR 28/22-L \| InternKon: 623 444 40 / 90
28	501 053 98	Union	1	InternBDB: KOR 28/12-L \| InternKon: 623 444 40 / 43
32	374 439 99	Socket	1	InternBDB: L 28 R /3901 \| InternKon: 623 444 40 / 36
33	372 176 99	Union	1	InternBDB: DDL 28 /2353
34	641 348 40	Hose assy. DN 12x2640 lg.	1	InternBDB: DOS 15 / DOS 15-45 \| InternKon: 641 300 40 / 110
35	374 407 99	Union	1	InternBDB: L 15 \| InternKon: 641 300 40 / 57
36	371 944 99	Union	1	InternBDB: EVGE 10
37	373 004 99	Union	1	InternBDB: GR 12 / 10
38	651 808 40	Hose assy. DN 20x2780	1	InternBDB: DOL 22 / DOS 22 \| InternKon: 641 300 40 / 111
39	371 783 99	Union	1	InternBDB: EVGE 15
40	372 173 99	Union	1	InternBDB: DDL 15
41	373 700 99	Union	1	InternBDB: GR 22 / 15
42	510 936 98	Hose assy. DN 12x2630	1	InternBDB: DOL 15 / DOS 16 \| InternKon: 641 300 40 / 106
43	374 423 99	Union	1	InternBDB: S 16 \| InternKon: 641 300 40 / 58
