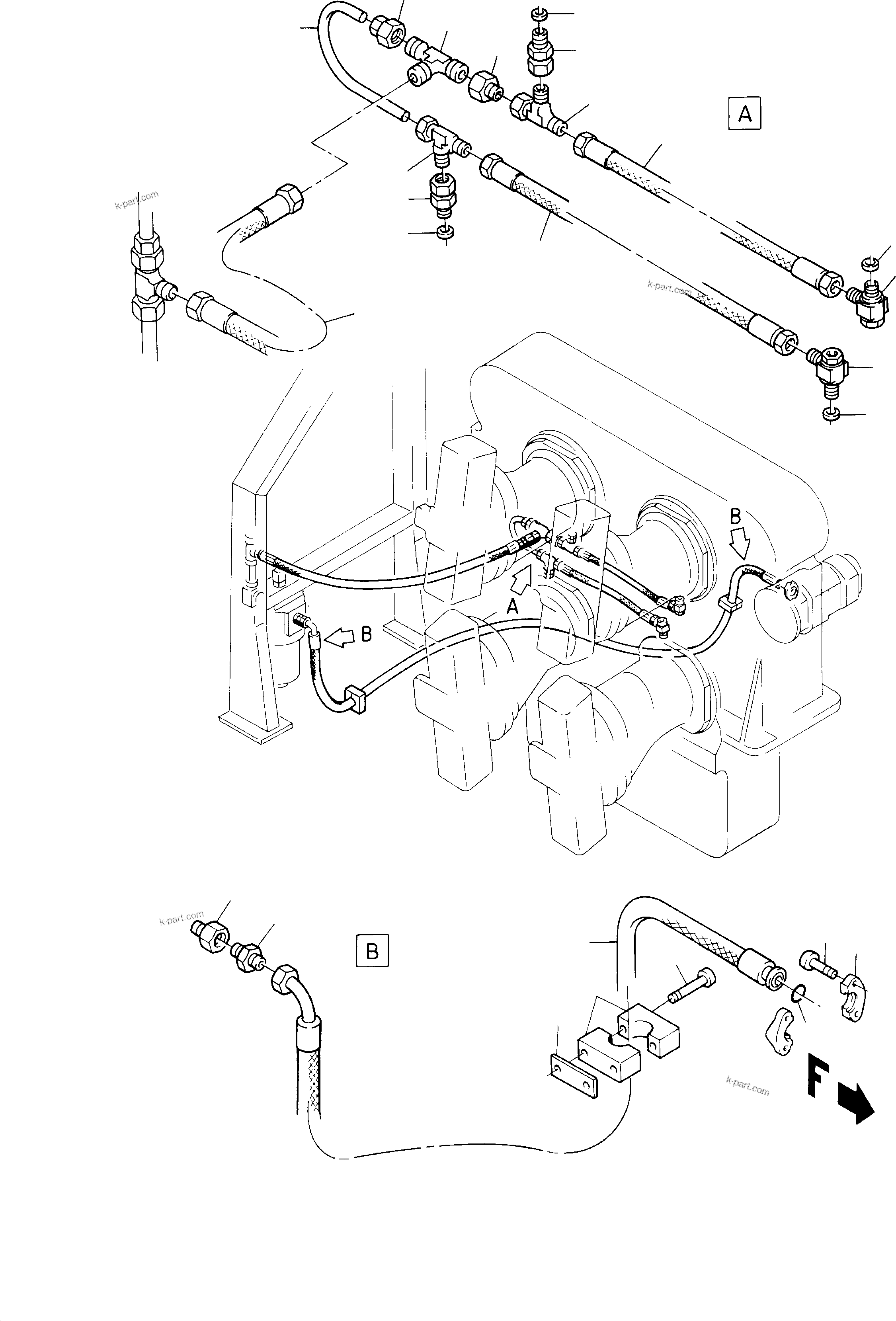

Komatsu parts book diagram for H285S S/N 78129: LUBE LINES FOR MAIN PUMPS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	510 912 98	Hose assy. DN 25x1050 lg.	1	InternBDB: DOL 28 /DOL 28 \| InternKon: 641 300 40 / 146
	?	372 617 99	Union	1	InternBDB: QL 28 /2353 \| InternKon: 641 300 40 / 69
	?	372 915 99	Union	2	InternBDB: KOR 28/15-L \| InternKon: 641 300 40 / 87
	?	371 565 40	Pipe, assy. Ш 15	1	InternKon: 641 300 40 / 191
	?	372 614 99	Union	1	InternBDB: QL 15 /2353
	?	371 783 99	Socket	2	InternBDB: EVGE 15-LM-ED \| InternKon: 641 300 40 / 84
	?	371 954 99	Union	1	InternBDB: FFL 15 /2353 \| InternKon: 641 300 40 / 71
	?	006 916 98	Union	2	InternBDB: Voss 15-LM \| InternKon: 641 300 40 / 75
	?	510 930 98	Hose assy. DN 12x660 lg.	2	InternBDB: DOL 15 / DOL 15 \| InternKon: 641 300 40 / 123
	?	621 590 40	Dummy plate	4	InternKon: 641 300 40 / 159
	?	502 201 98	Half clamp	2	InternBDB: L-5-R-35 /3015
	?	534 020 99	Weld on plate	1	InternBDB: L-AP-K-5 /3015
	?	319 136 99	Bolt	2	InternBDB: M6x50 /912
	?	145 826 40	Half flange	2	InternBDB: 32 /420
	?	356 210 40	Tetra seal	1	InternBDB: Bu u. Lu FR 76-5957- 2200 1 1/4 \| InternKon: 641 300 40 / 52
	?	319 147 99	Screw	4	InternBDB: M10x25 /912 \| InternKon: 641 300 40 / 160
	?	510 909 98	Hose assy. DN 25x3130 lg.	1	InternBDB: DOL 28-90 FL 1 1/4 \| InternKon: 641 300 40 / 143
	?	372 453 99	Union	1	InternBDB: DL28 /2353 \| InternKon: 623 444 40 / 33
	?	372 887 99	Socket	1	InternBDB: RI 1 1/2x1 010 926 99 \| InternKon: 623 444 40 / 26

Komatsu H285S S/N 78129 parts catalog PDF

LUBE LINES FOR MAIN PUMPS (114-1822b) in H285S S/N 78129. Diagram image and parts list.
