PIPES - FAN MOTOR | H285S S/N 78129 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

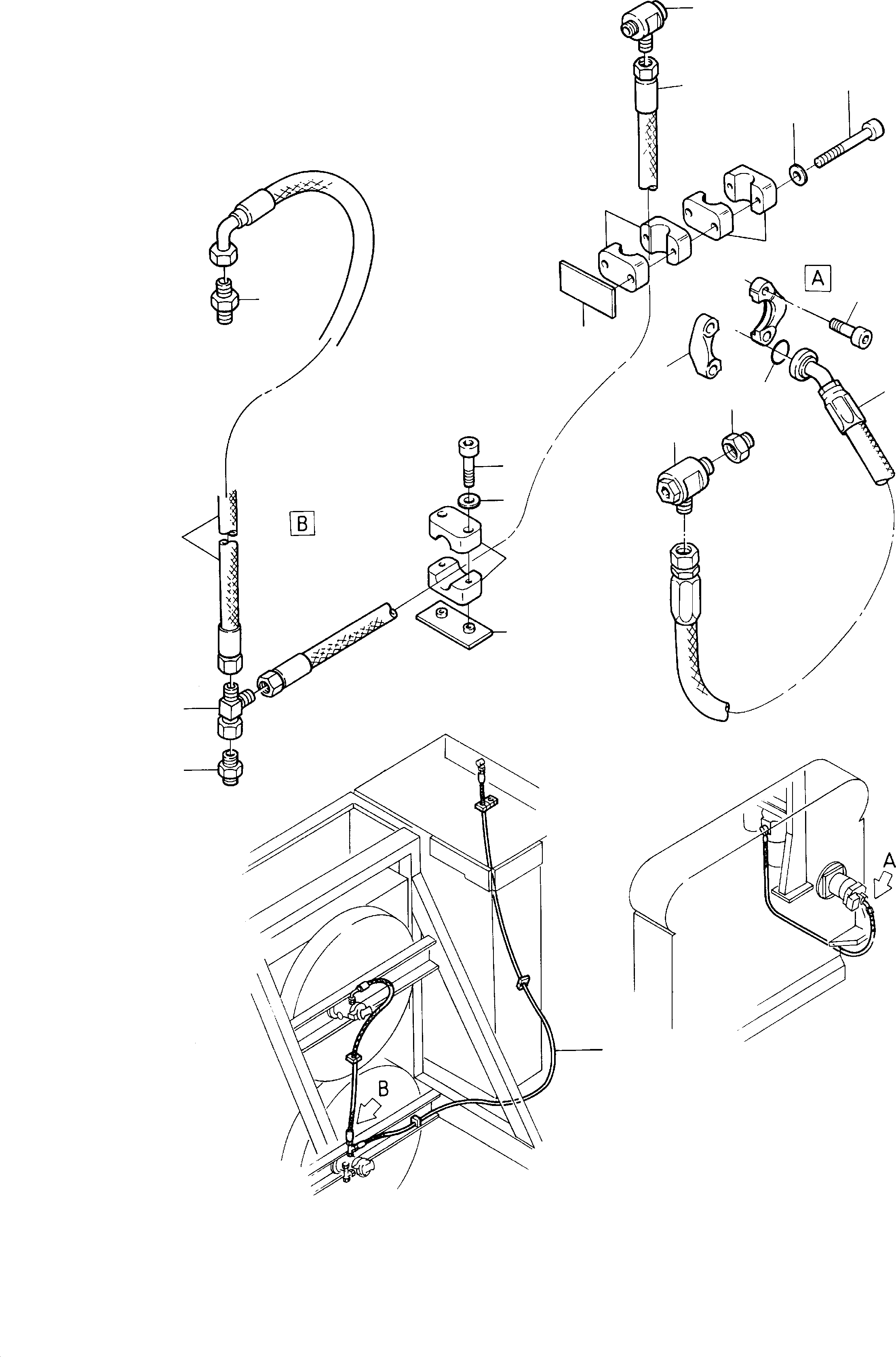

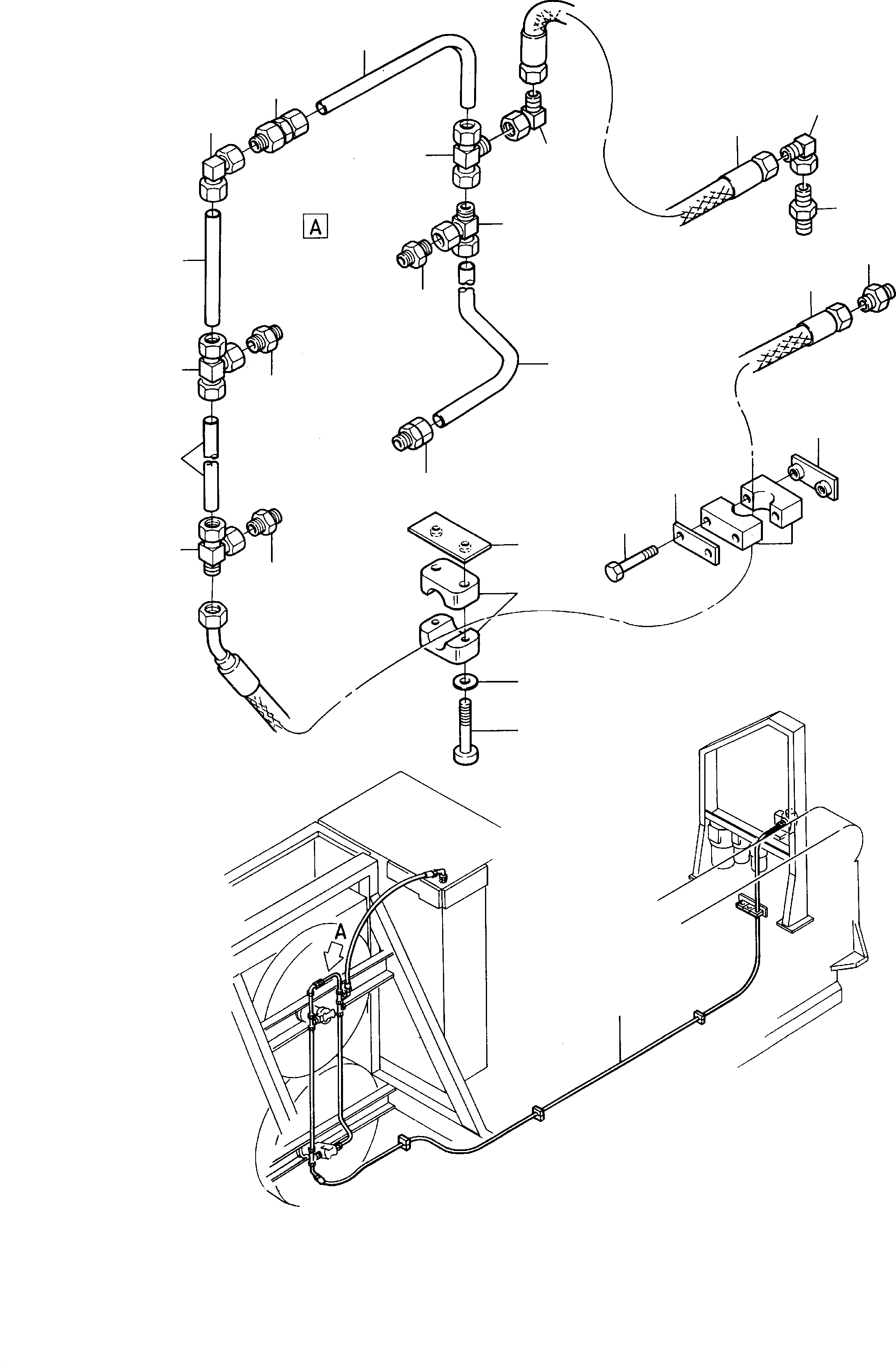

Diagram image 1 of 2

H285S S/N 78129

01 01 01 02 02 02 03 04 05 05 05 06 07 08 09 10 10 12 15 15 16 17 18 19 20 21 22 23 24

H285S S/N 78129

35 35 36 37 38 38 40 41 41 42 42 42 43 43 44 45 46 47 48 49 50 51

#	Part Number	Partname	Quantity	Options
01	372 134 99	Union	3	InternBDB: EES 25 /2353 \| InternKon: 385 940 40 / 30
02	374 414 99	Socket	3	InternBDB: S 25 M /3901 \| InternKon: 385 940 40 / 25
03	385 888 40	Pipe Ш 25	1	InternKon: 385 940 40 / 35
04	385 889 40	Pipe Ш 25	1	InternKon: 385 940 40 / 31
05	372 186 99	Union	3	InternBDB: DDS 25 /2353 \| InternKon: 385 940 40 / 26
06	371 357 99	Non-return valve	1	InternBDB: RHD 25-S 010 872 99 \| InternKon: 385 940 40 / 27
07	385 890 40	Pipe, assy. Ш 25	1	InternKon: 385 940 40 / 43
08	371 978 99	Union	1	InternBDB: FFS 25 /2353 \| InternKon: 385 940 40 / 28
09	322 666 40	Pipe, assy. Ш 25	1	InternKon: 385 940 40 / 29
10	372 439 99	Union	2	InternBDB: CS 25 /2353 \| InternKon: 385 940 40 / 24
12	623 472 40	Hose assy. DN 20x1190 lg.	1	InternBDB: DOS 25 / DOS 25 \| InternKon: 385 940 40 / 42
15	419 057 40	Hose assy. DN 20x5040 lg.	1	InternBDB: TL \| InternKon: 641 300 40 / 99
16	372 463 99	Union	1	InternBDB: DS 25 /2353 \| InternKon: 623 444 40 / 34
17	534 005 99	Welding plate	1	InternBDB: ES 5 011 839 99
18	504 923 98	Half clamp	2	InternBDB: H-CS 5/32
19	534 004 99	Cover plate	1	InternBDB: DS 5
20	308 581 99	Bolt	2	InternBDB: M10x70 /931
21	534 020 99	Welding plate	3	InternBDB: E 5
22	502 143 98	Half clamp	6	InternBDB: H-C 5/32,2
23	340 405 99	Washer	6	InternBDB: 6,4 /433
24	319 136 99	Screw	6	InternBDB: M6x50 /912
35	374 407 99	Socket	2	InternBDB: L 15 M /3901 \| InternKon: 385 940 40 / 34
36	371 954 99	Union	1	InternBDB: FFL 15 /2353 \| InternKon: 385 940 40 / 38
37	510 937 98	Hose assy. DN 12x4500 lg.	1	InternBDB: DOL 15 / DOL 15 \| InternKon: 641 300 40 / 107
38	623 469 40	Hose assy. DN 12x1740 lg.	1	InternBDB: DOL 15 / DOL 15-90 \| InternKon: 385 940 40 / 37
40	006 916 98	Union	1	InternBDB: 15 LM \| InternKon: 641 300 40 / 57
41	533 992 99	Welding plate	2	InternBDB: E 3 011 839 99
42	502 632 98	Half clamp	6	InternBDB: H-C 3/23,4
43	340 405 99	Washer	4	InternBDB: 6,4 /433
44	320 140 99	Screw	2	InternBDB: M6x65 /912
45	319 133 99	Screw	2	InternBDB: M6x30 /912
46	047 326 40	Half flange	2	InternBDB: 25 /420
47	006 720 98	O-ring	1	InternBDB: 33x3,5 011 745 99 \| InternKon: 641 300 40 / 66
48	319 157 99	Screw	4	InternBDB: M12x35 /912
49	419 058 40	Hose assy. DN 25x1820 lg.	1	InternBDB: TL \| InternKon: 641 300 40 / 102
50	007 172 98	Union	1	InternBDB: Voss 30-SR 011 754 99
51	504 764 98	Reducing socket	1	InternBDB: RI 1 1/2x1 1/4 010 917 99
