H285S S/N 78129

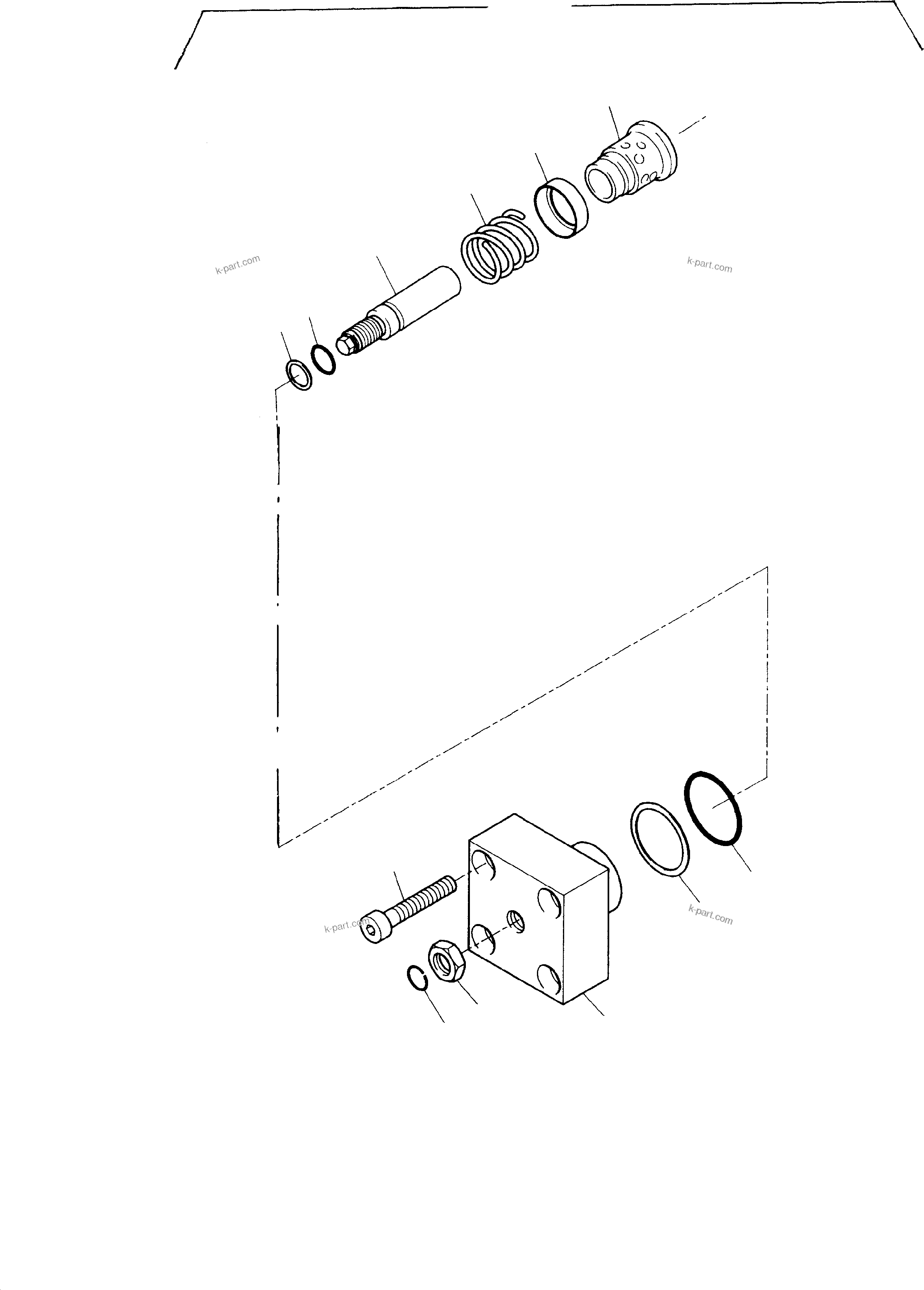

Komatsu parts book diagram for H285S S/N 78129: PRESSURE RELIEF VALVE

? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	576 246 40	Throttle check valve	1	InternBDB: Rexroth MHFS 52 HCB 1-2X-521 593
	?	319 296 99	Bolt	4	InternBDB: M20x75 /912 10.9 \| InternKon: 521 593 / 16
	?	504 794 98	Snap ring	1	InternBDB: A 24 /7993 \| InternKon: 521 593 / 13
	?	333 224 99	Nut	1	InternBDB: M24x1,5 /936 \| InternKon: 521 593 / 12
	?	754 545	Set screw	1	InternBDB: 165 781 \| InternKon: 521 593 / 5
	?	973 137	Support ring	1	InternBDB: 25,8x30x1 012 115 \| InternKon: 521 593 / 11
	?	209 898 40	O-ring	1	InternBDB: 25,07x2,62 002 325 \| InternKon: 521 593 / 10
	?	757 717 73	Cover	1	InternBDB: 810 249 \| InternKon: 521 593 / 4
	?	973 138	Support ring	1	InternBDB: 62,8x67x1 013 814 \| InternKon: 521 593 / 9
	?	502 900 98	O-ring	1	InternBDB: 63,09x3,53 008 940 \| InternKon: 521 593 / 8
	?	754 547	Compression spring	1	InternBDB: 012 113 \| InternKon: 521 593 / 15
	?	754 548	Spring plate	1	InternBDB: 683 946 \| InternKon: 521 593 / 7
	?	805 568 73	Throttle cone	1	InternBDB: 642 062 \| InternKon: 521 593 / 6

Komatsu H285S S/N 78129 parts catalog PDF

PRESSURE RELIEF VALVE (090-3555) in H285S S/N 78129. Diagram image and parts list.
