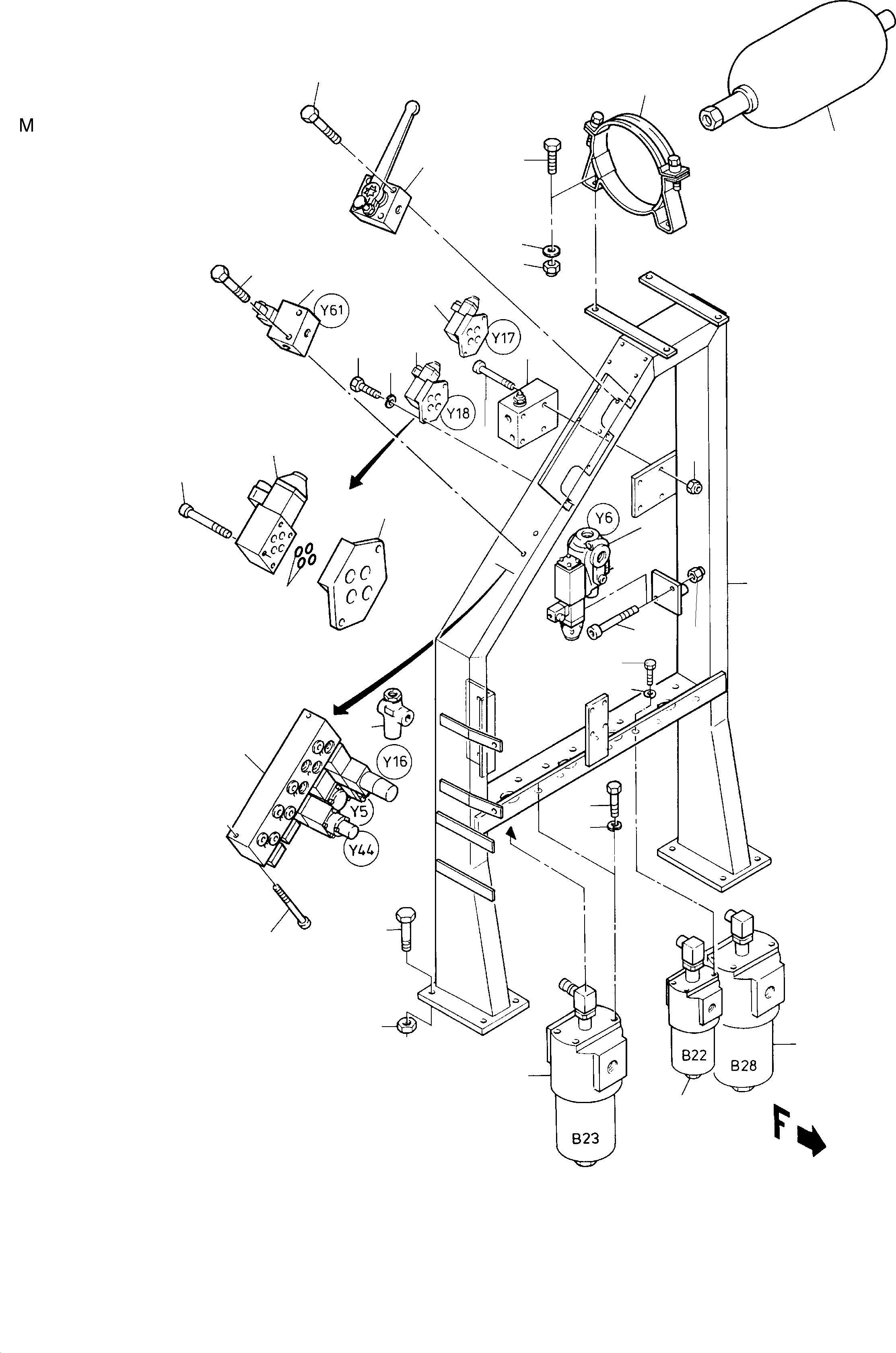

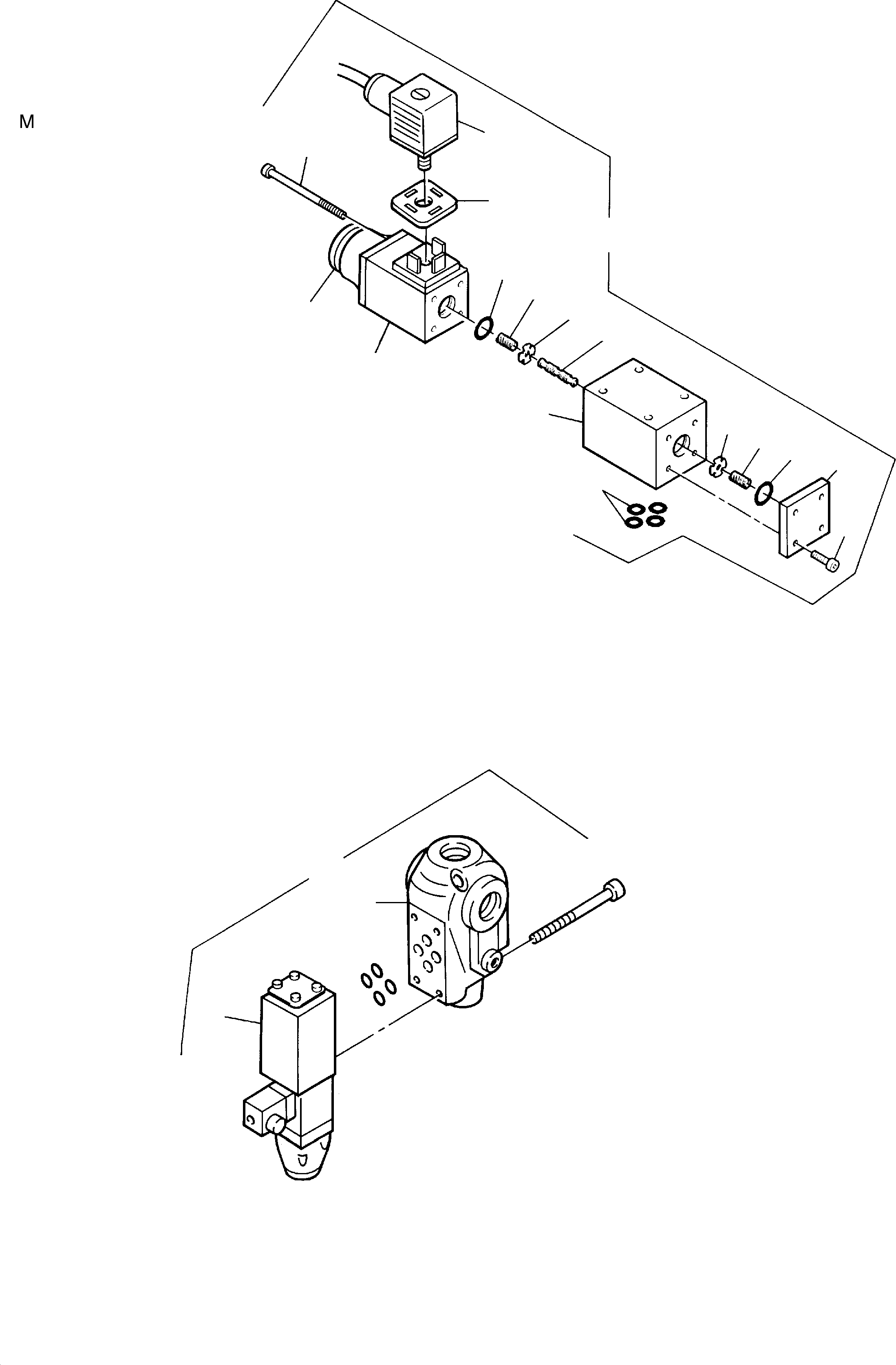

CONTROL FRAME | H285S S/N 78129 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
01	623 480 40	Control frame	1	InternKon: 623 444 40 / 1
02	308 633 99	Bolt	8	InternBDB: M16x65 /931 \| InternKon: 608 140 40 / 9
03	334 601 99	Nut	8	InternBDB: M 16 /985 \| InternKon: 608 140 40 / 10
04		Filter ( Fan )	1	InternBDB: 592 448 40 \| InternKon: 623 444 40 / 2	090-5566b
05		Filter ( Pilot oil )	1	InternBDB: 592 447 40 \| InternKon: 623 444 40 / 3	090-5567b
07		Filter ( Pump bearing )	1	InternBDB: 592 449 40 \| InternKon: 623 444 40 / 4	090-5568b
08	307 802 99	Bolt	8	InternBDB: M12x25 /933 \| InternKon: 623 444 40 / 12
09	343 856 99	Lock washer	12	InternBDB: 12 /128 \| InternKon: 623 444 40 / 17
10	307 775 99	Bolt	4	InternBDB: M10x20 /933 \| InternKon: 623 444 40 / 13
11	343 855 99	Lock washer	8	InternBDB: 10 /128 \| InternKon: 623 444 40 / 18
12		Accumulator	1	InternBDB: 239 441 40 Standard 269 067 40 Kдlteausf.	090-0270
13		Multi-station manifold block	1	InternBDB: 623 475 40 \| InternKon: 623 444 40 / 20	114-1893a
16		Load limitation valve	1	InternBDB: 324 750 40 \| InternKon: 623 444 40 / 6	090-0424
17	321 425 99	Screw	4	InternBDB: M6x100 /912 10.9 \| InternKon: 623 444 40 / 14
18	343 853 99	Lock washer	4	InternBDB: 6 /128 \| InternKon: 623 444 40 / 19
19	507 025 98	Nut	4	InternBDB: M 6 /985 \| InternKon: 623 444 40 / 81
20	461 122 40	Ball cock	1	InternBDB: Roetelmann 202 004 \| InternKon: 623 444 40 / 23
21	180 325 40	Connection plate	2	InternBDB: Rexroth G 342/1 \| InternKon: 623 444 40 / 8
22	308 534 99	Bolt	4	InternBDB: M6x30 /931 \| InternKon: 623 444 40 / 15
23	256 425 40	4/2-Directional spool valve (w/o cube plug)	2	InternBDB: Rexroth 4 WE 6 C 51/ AG 24 NZ 4 \| InternKon: 623 444 40 / 7
24	960 910	Magnet with emergency hand actuation	2	InternBDB: GU 35-4-A-355
25	500 287 98	O-ring	8	InternBDB: 007 111 9,25x1,78
26	971 231	O-ring	2	InternBDB: 009 091 15,6x1,78
27	502 461 98	Screw	8	InternBDB: 008 132 M4x65 /912
28	319 174 99	Screw	8	InternBDB: M5x50 /912 10.9 \| InternKon: 623 444 40 / 9
29	319 315 99	Screw	4	InternBDB: M6x60 /912 10.9 \| InternKon: 623 444 40 / 77
30	515 210 40	Valve plug	-2	InternBDB: Murr MSUD-1U24-15-B /246 340
31	256 132 40	Clamp	2	InternBDB: HSS 222/229 \| InternKon: 623 444 40 / 22
32	307 806 99	Bolt	4	InternBDB: M12x40 /933 \| InternKon: 623 444 40 / 79
33	334 600 99	Nut	4	InternBDB: M 12 /985 \| InternKon: 623 444 40 / 80
34	341 419 99	Screw	4	InternBDB: M6x70 /912 \| InternKon: 623 444 40 / 78
36	084 248 40	Pressure relief valve	1	InternBDB: Bosch 053 200 1031 \| InternKon: 623 444 40 / 10
37	348 678 40	Seal	-2	InternBDB: GDM 3-7
38	368 254 40	Pressure relief valve	1	InternBDB: Rexroth DBW20 AG2-40 315 \| InternKon: 623 444 40 / 5
39	440 059 40	3/2 Directional spool valve	1	InternBDB: Rexroth 3 WE 6 A9 -5X /AG 24 NZ 4
40	334 690 99	Nut	2	InternBDB: M 8 /985
41	319 425 99	Screw	2	InternBDB: M8x60 /912
42	756 414 73	Housing	2	InternBDB: 153 194
43	756 408 73	Cover	2	InternBDB: 152 060
44	763 694 73	Piston	2	InternBDB: 150 264
45	756 412 73	Washer	4	InternBDB: 149 806
46	763 693 73	Compression spring	4	InternBDB: 001 489
47	320 005 99	Screw	8	InternBDB: M4x16 /912
48	756 102 73	Rubber cap	2	InternBDB: 009 300
49	490 363 40	Solenoid valve	1	InternBDB: Hydromatik 437 624 \| InternKon: 623 444 40 / 11
50	308 556 99	Bolt	2	InternBDB: M8x50 /931 \| InternKon: 623 444 40 / 16
51	757 624 73	Cartrige	1	InternBDB: Rexroth 493 939
