01 |
|

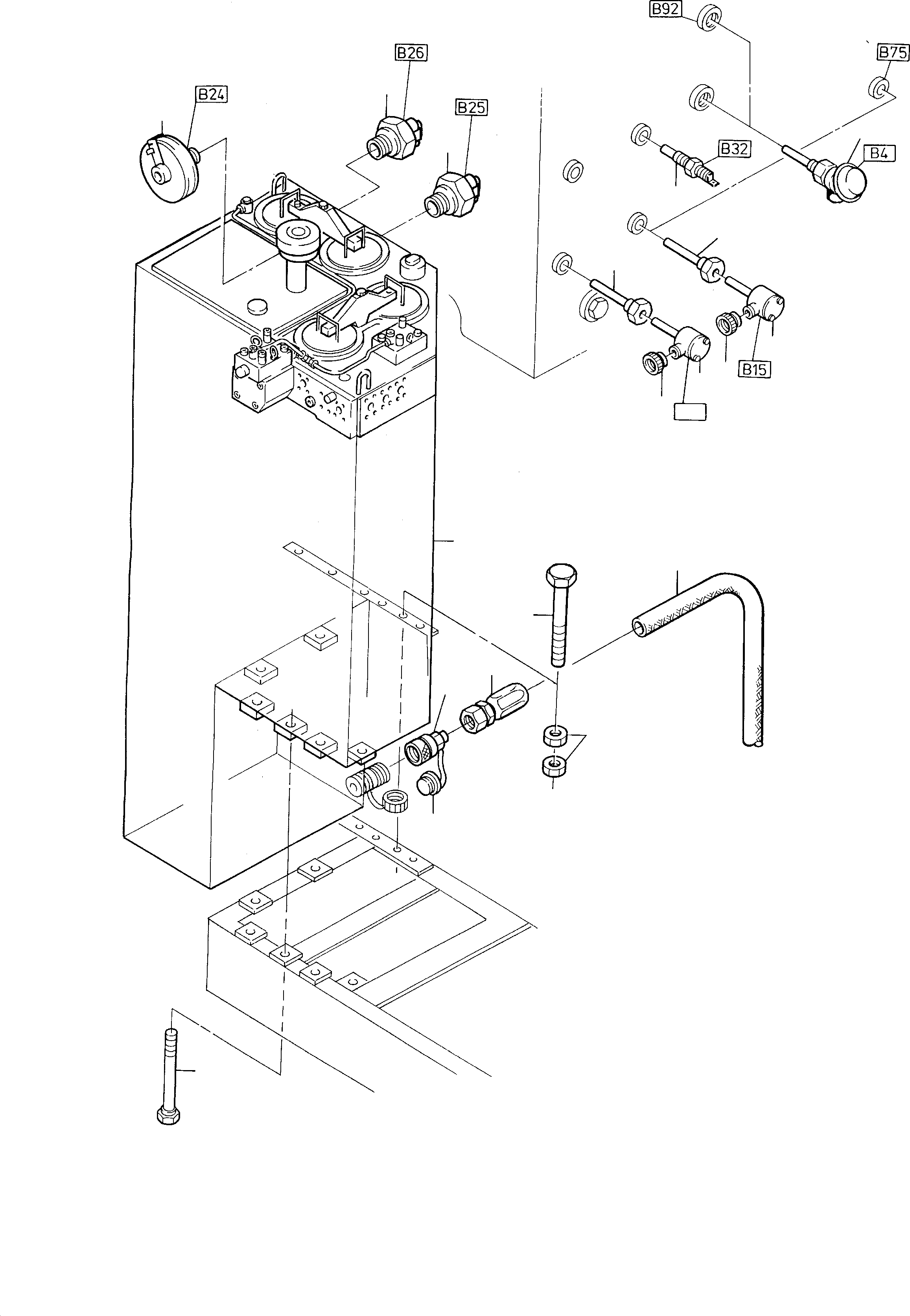

see page Main oil tank |
1 |
InternBDB: 355 033 40 114-1801a, etc. | InternKon: 366 599 40 / 1
|
|
|
|
02 |
504 663 98
|
Bolt
Standard |
6 |
InternBDB: M20 x 140 / 931 10.9 | InternKon: 366 599 40 / 4
|
|
|
|
02 |
504 569 98
|
Bolt
Cold weather design |
6 |
InternBDB: M20 x 140 / 931 10.9 kaltz | InternKon: 366 599 40 / 4
|
|
|
|
03 |
504 662 98
|
Nut
Standard |
12 |
InternBDB: M 20 / 934 10 | InternKon: 366 599 40 / 7
|
|
|
|
03 |
504 572 98
|
Nut
Cold weather design |
12 |
InternBDB: M 20 / 934 10 kaltz | InternKon: 366 599 40 / 7
|
|
|
|
04 |
302 574 99
|
Bolt
Standard |
6 |
InternBDB: M20 x 120 / 931 10.9 | InternKon: 366 599 40 / 3
|
|
|
|
04 |
504 571 98
|
Bolt
Cold weather design |
6 |
InternBDB: M20 x 120 / 931 10.9 kaltz | InternKon: 366 599 40 / 3
|
|
|
|
10 |
255 908 40
|
Coupler plug DN 32 |
1 |
InternBDB: Argus 7151-1032-34 04 44 | InternKon: 371 599 40 / 42
|
|
|
|
11 |
208 889 40
|
Dust plug |
1 |
InternBDB: 7193-0025-39 92 66
|
|
|
|
12 |
256 755 40
|
Hose fittings |
1 |
InternBDB: Aeroquip 07.155-38-24
|
|
|
|
13 |
256 756 40
|
Hose DN 32
Bulk ware, state length
required |
1 |
InternBDB: Aeroquip 2651-24 | InternKon: 371 599 40 / 45
|
|
|
|
20 |
440 603 40
|
Maintenance switch |
1 |
InternBDB: Ma. u. Hu. 3900062/952 | InternKon: 653 761 40 / 91
|
|
|
|
21 |
192 165 40
|
Pressure switch |
1 |
InternBDB: Westinghouse 441 014 0210 | InternKon: 653 761 40 / 14
|
|
|
|
22 |
084 020 40
|
Pressure switch |
1 |
InternBDB: 441 014 0050 | InternKon: 653 761 40 / 15
|
|
|
|
23 |
621 846 40
|
Oil level switch |
1 |
InternBDB: Sie-Sensonik SK1-HT 125-FS-JR/ 3/8-P-S-K | InternKon: 653 761 40 / 9
|
|
|
|
25 |
431 168 40
|
Thermosender |
1 |
InternBDB: Moto-Meter 642.007.1006 | InternKon: 653 761 40 / 16
|
|
|
|
26 |
269 870 40
|
Cover tube |
3 |
InternBDB: Noris MX2 /R12 | InternKon: 653 761 40 / 12
|
|
|
|
27 |
440 382 40
|
Temperature sensor |
3 |
InternBDB: Noris TP 31 0 ? -120 ? | InternKon: 653 761 40 / 10
|
|
|
|
28 |
694 642 73
|
Reducing union |
3 |
InternBDB: Sievert 246 6445
|
|
