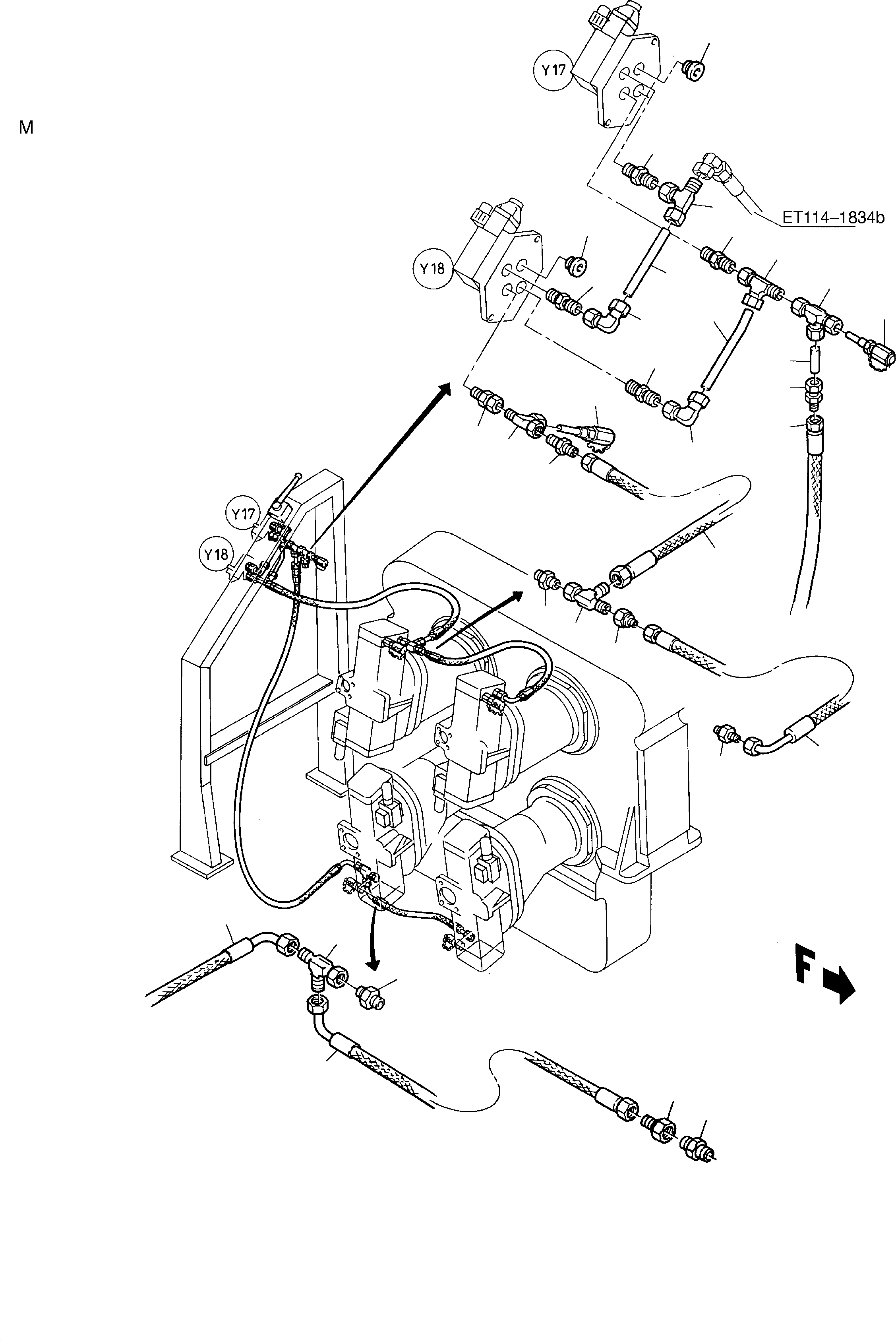

Komatsu parts book diagram for H285S S/N 78129: MAIN PUMP CONTROL

01 01 02 02 02 02 03 04 05 05 05 06 06 07 07 07 20 20 20 20 21 22 23 23 24 25 25 26 26 27 27 28 28

	#	Part Number	Partname	Quantity	Options	Reference
	01	255 694 40	Plug	2	InternBDB: Vsti 3/8 \| InternKon: 623 444 40 / 52
	02	371 459 99	Socket	4	InternBDB: L 12 - 3/8 \| InternKon: 623 444 40 / 53
	03	502 059 98	Union	1	InternBDB: EVGE 12 \| InternKon: 623 444 40 / 87
	04	372 108 99	Union	1	InternBDB: EEL 12 \| InternKon: 623 444 40 / 54
	05	215 642 99	Pipe Ш 12 Bulk ware, state length required	-2	InternBDB: 12x2 /2391 \| InternKon: 623 444 40 / 72
	06	372 172 99	Union	2	InternBDB: DDL 12 \| InternKon: 623 444 40 / 45
	07	371 953 99	Union	3	InternBDB: FFL 12 \| InternKon: 623 444 40 / 58
	20	374 423 99	Socket	4	InternBDB: S 16 \| InternKon: 641 300 40 / 58
	21	640 436 40	Hose assy. DN 12x860	1	InternBDB: DOL 15 /DOS 16 \| InternKon: 641 300 40 / 112
	22	640 437 40	Hose assy. DN 12x860	1	InternBDB: DOL 15 /DOS 16-90 \| InternKon: 641 300 40 / 138
	23	640 438 40	Hose assy. DN 12x1660	1	InternBDB: DOL 15 /DOS 16-90 \| InternKon: 641 300 40 / 113
	24	640 439 40	Hose assy. DN 12x660	1	InternBDB: DOL 15 /DOS 16-90 \| InternKon: 641 300 40 / 144
	25	371 976 99	Union	2	InternBDB: FFS 16 \| InternKon: 641 300 40 / 73
	26	373 698 99	Union	1	InternBDB: GR 15/12-L
	27	004 396 98	Test socket	2	InternBDB: B 12
	28	371 502 99	Union	2	InternBDB: KOR 16-S /15-L
