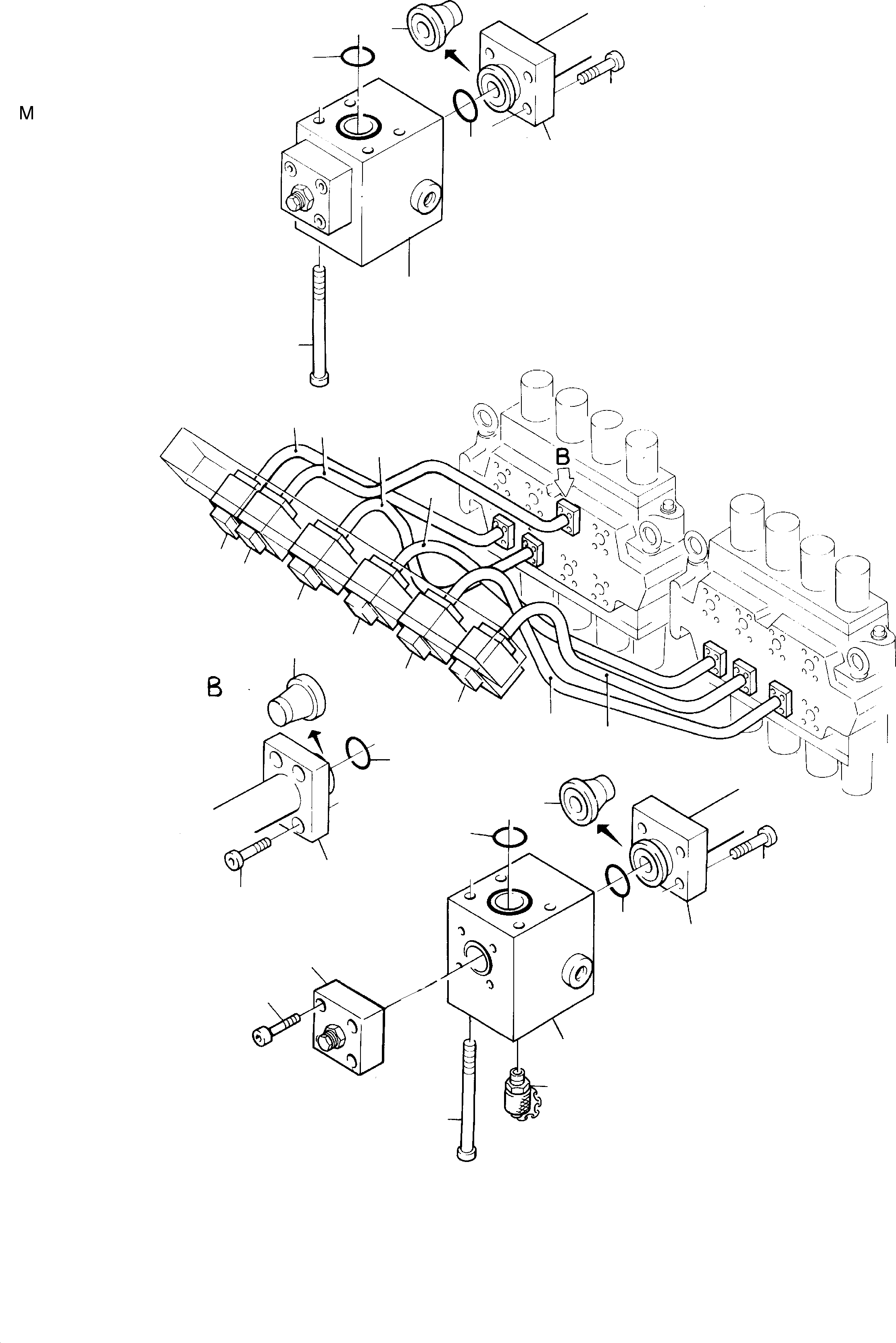

Komatsu parts book diagram for H285S S/N 78129: VALVES, DISTRIBUTOR BLOCK

01 01 01 02 02 02 02 03 03 04 04 04 05 05 05 05 05 06 06 06 07 08 09 10 11 12 13 14 14 15 15 15 21 22

	#	Part Number	Partname	Quantity	Options	Reference
	01		Throttle check valve	2	InternBDB: 621 730 40 \| InternKon: 368 327 40 / 65	090-0502a
	02		Throttle check valve	3	InternBDB: 576 159 40 \| InternKon: 368 327 40 / 27	090-0502a
	03		Pressure relief valve	1	InternBDB: 576 245 40 \| InternKon: 368 327 40 / 59	090-3556
	04	504 461 98	Collar ring	12	InternBDB: K-6580-32 \| InternKon: 368 327 40 / 10
	05	385 243 40	Tetra seal	18	InternBDB: Bu. u. Lu. FR-76-6299-2200 \| InternKon: 368 327 40 / 9
	06	504 699 98	Bolt	48	InternBDB: M20x85 /912 \| InternKon: 368 327 40 / 70
	07	694 500	Pipe assy. Ш 65	1	InternBDB: 368 358 40 \| InternKon: 368 327 40 / 12
	08	696 380 73	Pipe assy. Ш 65	1	InternBDB: 449 167 40 \| InternKon: 368 327 40 / 13
	09	694 502	Pipe assy. Ш 65	1	InternBDB: 368 363 40 \| InternKon: 368 327 40 / 17
	10	694 503	Pipe assy. Ш 65	1	InternBDB: 368 367 40 \| InternKon: 368 327 40 / 21
	11	694 504	Pipe assy. Ш 65	1	InternBDB: 368 365 40 \| InternKon: 368 327 40 / 19
	12	696 381 73	Pipe assy. Ш 65	1	InternBDB: 449 169 40 \| InternKon: 368 327 40 / 62
	13	153 646 40	Test coupling	6	InternBDB: AG 1/4 \| InternKon: 368 327 40 / 60
	14	319 405 99	Bolt	24	InternBDB: M20x180 \| InternKon: 368 327 40 / 71
	15	504 448 98	Flange	12	InternBDB: FE-6500-32/6 \| InternKon: 368 327 40 / 8
	21		Throttle check valve	1	InternBDB: 576 246 40 \| InternKon: 509 477 40 / 40	090-3555
	22	319 296 99	Bolt	4	InternBDB: M20x75 \| InternKon: 509 477 40 / 43

Komatsu H285S S/N 78129 parts catalog PDF

VALVES, DISTRIBUTOR BLOCK (114-1846d) in H285S S/N 78129. Diagram image and parts list.
