MAIN PUMP CONTROL | H455-SD S/N 15009 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

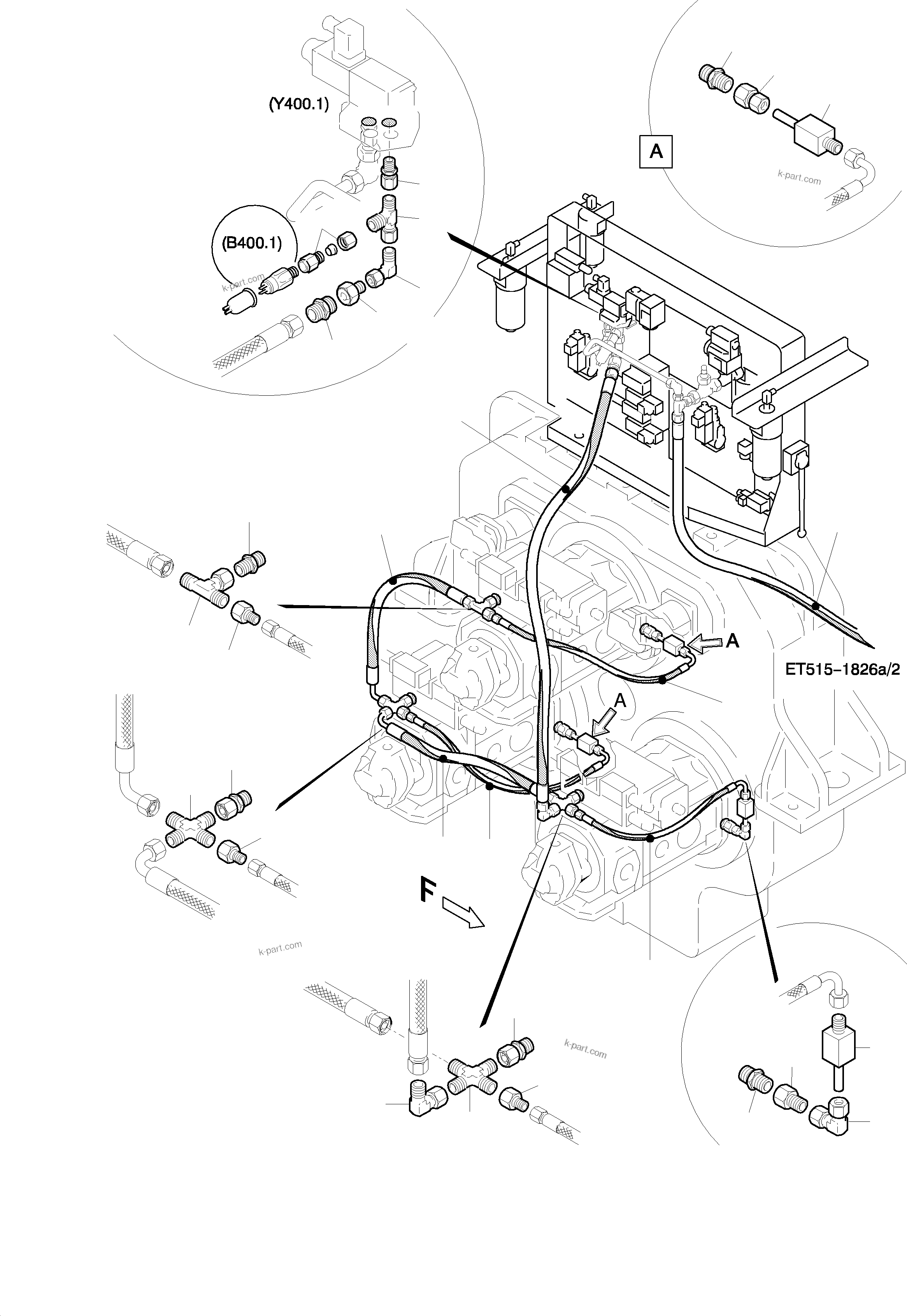

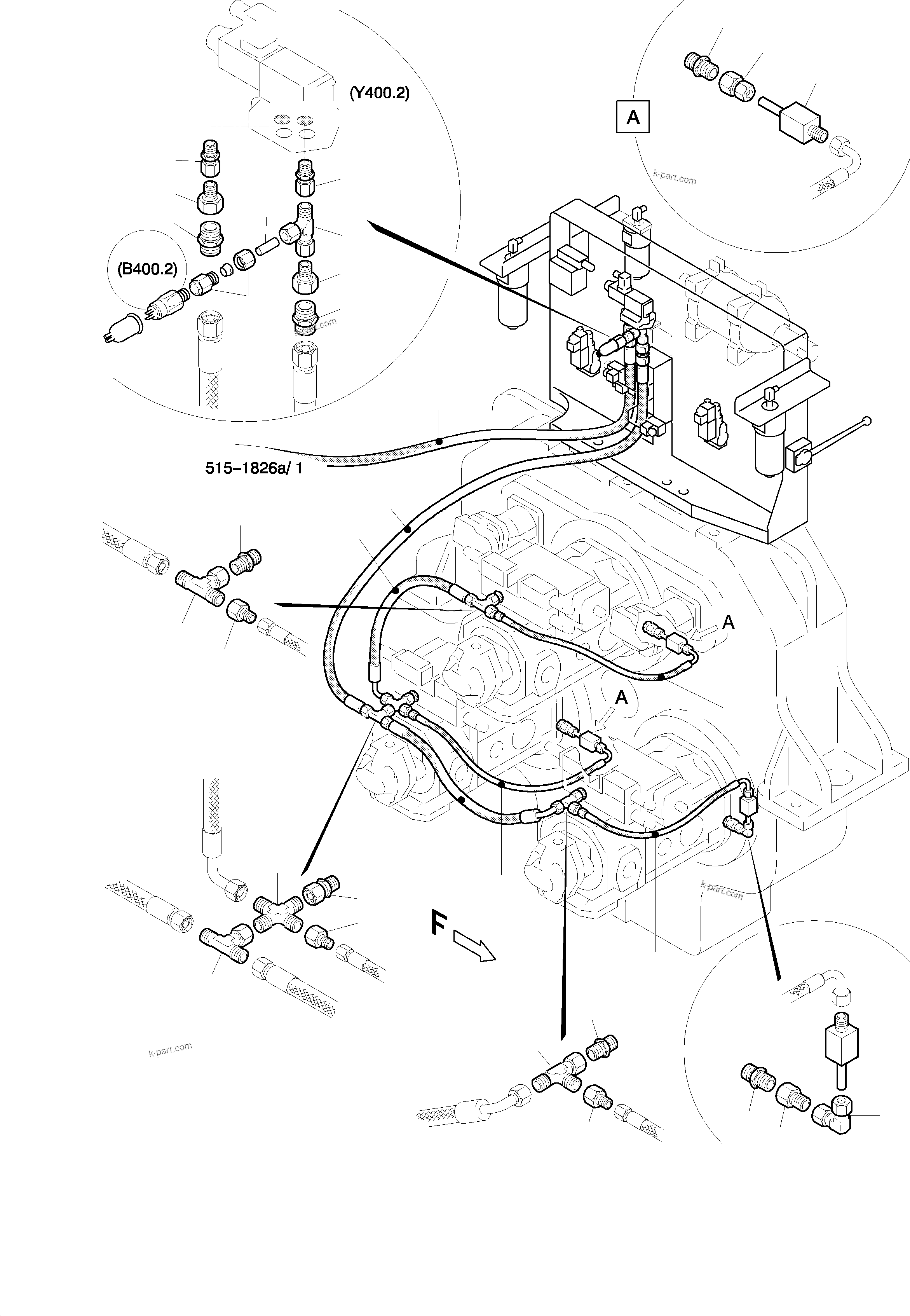

Diagram image 1 of 2

H455-SD S/N 15009

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

H455-SD S/N 15009

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	653 512 40	Hose assy. DN 08 x 770	6	InternBDB: DOL 10 / DOL 10-90 \| InternKon: 872 252 40 / 17
?	641 588 40	Hose assy. DN 16 x 850	2	InternBDB: DOL 18 / DOL 18 - 90 \| InternKon: 872 252 40 / 16
?	653 514 40	Hose assy. DN 16 x 700	2	InternBDB: DOL 18 / DOL 18 - 90 \| InternKon: 872 252 40 / 15
?	513 836 98	Hose assy. DN 16 x 1600	2	InternBDB: DOL 18 / DOL 18 \| InternKon: 674 955 40 / 22
?	374 407 99	Union	6	InternBDB: L 15 \| InternKon: 872 252 40 / 27
?	513 694 98	Union	6	InternBDB: RED 15 / 10PL/ 34199440 \| InternKon: 872 252 40 / 28
?	647 811 40	Orifice 1.7	6	InternKon: 872 252 40 / 29
?	516 156 98	Socket	3	InternBDB: L 10/ 3942 \| InternKon: 872 252 40 / 30
?	516 214 98	Socket	3	InternBDB: L 18-M / 3945 \| InternKon: 872 252 40 / 20
?	514 291 98	Union	6	InternBDB: RED 18/10-PL \| InternKon: 872 252 40 / 26
?	374 408 99	Union	3	InternBDB: L-18 / 3901 \| InternKon: 872 252 40 / 24
?	516 169 98	Socket	4	InternBDB: L 18 / 3943 \| InternKon: 872 252 40 / 25
?	372 499 99	Union	3	InternBDB: ZL 18 \| InternKon: 872 252 40 / 21
?	516 159 98	Socket	1	InternBDB: L 18 / 3942 \| InternKon: 872 252 40 / 22
?	513 837 98	Hose assy. DN 16 x 5300	1	InternBDB: DOL 18 / DOL18 \| InternKon: 674 955 40 / 23
?	516 184 98	Socket	3	InternBDB: L 12 -G / 3945 \| InternKon: 674 928 40 / 79
?	516 174 98	Socket	2	InternBDB: L 12 / 3944 \| InternKon: 674 928 40 / 48
?	516 157 98	Socket	1	InternBDB: L 12 / 3942
?	514 322 98	Union	3	InternBDB: RED 18/12 \| InternKon: 674 928 40 / 43
?	512 085 98	Union	3	InternBDB: GR 18/12L \| InternKon: 674 928 40 / 80
?	215 642 99	Union Ш 12 Bulk ware, state length required	-2
?	371 949 99	Pipe	2	InternBDB: MAV-ED 12 LR \| InternKon: 674 928 40 / 82
