H455-SD S/N 15009

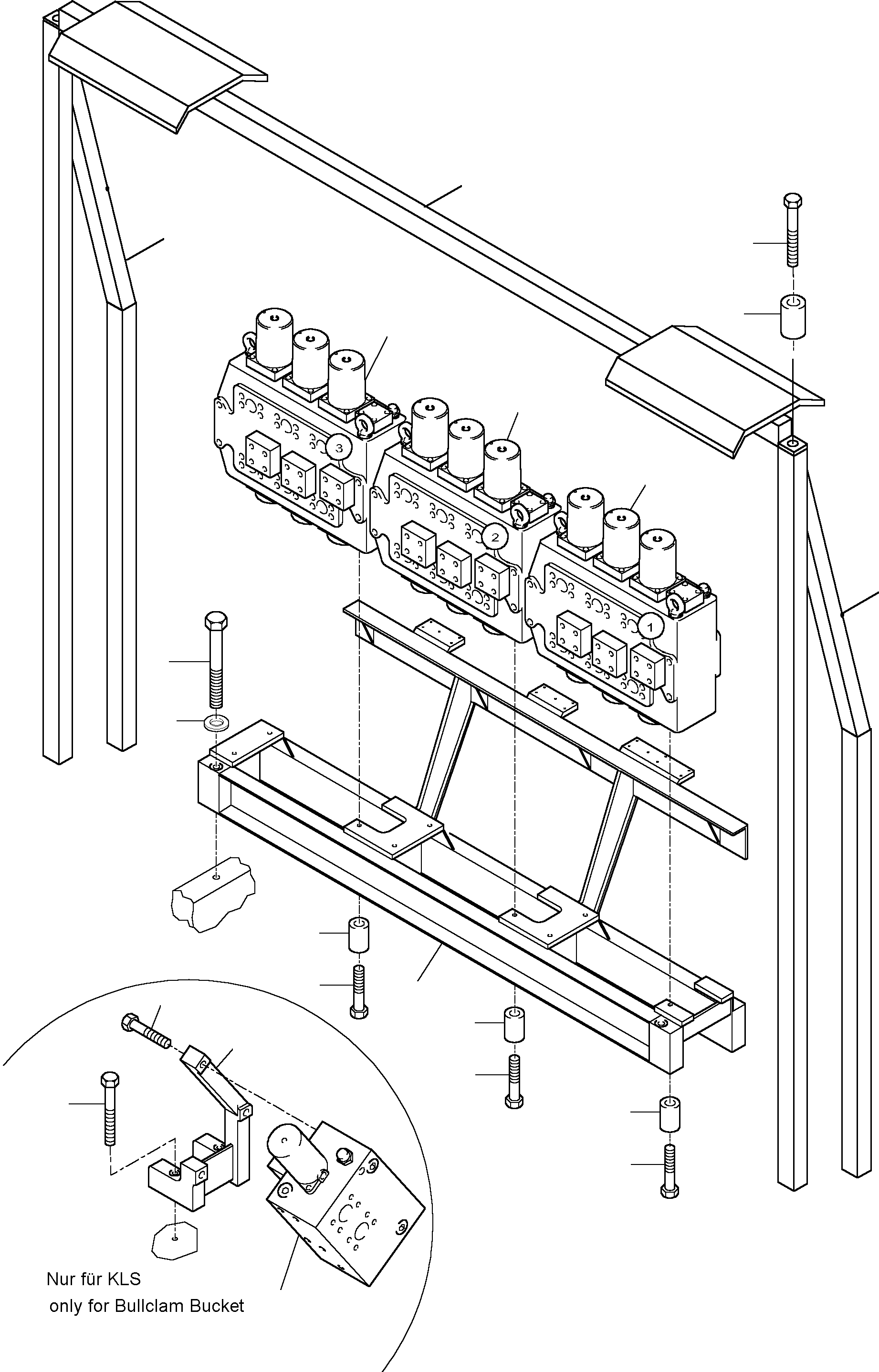

Komatsu parts book diagram for H455-SD S/N 15009: SUPPORT, CONTROL UNIT

01 02 02 02 03 03 03 04 05 06 07 08 09 10 10 11 12 13 14 21 22

	#	Part Number	Partname	Quantity	Options	Reference
	01	631 001 40	Support, control unit	1	InternKon: 637 574 40 / 01
	02	510 732 98	Resilient sleeve	13	InternBDB: 21/40x60 \| InternKon: 637 574 40 / 12
	03	302 573 99	Bolt	13	InternBDB: M20x100 /931 10.9 \| InternKon: 637 574 40 / 14
	04		Control block	1	InternBDB: 655 512 40 \| InternKon: 637 574 40 / 2	991-0111
	05		Control block	1	InternBDB: 655 514 40 \| InternKon: 637 574 40 / 4	991-0113
	06		Control block	1	InternBDB: 655 523 40 \| InternKon: 637 574 40 / 3	991-0115
	07	904 724 40	Support	1	InternBDB: H455S \| InternKon: 637 574 40 / 67
	08	308 873 99	Bolt	2	InternBDB: M16x60 / 10.9 / 931 \| InternKon: 637 574 40 / 68
	09	510 729 98	Resilient sleeve	-2	InternBDB: 17/ 30x25 \| InternKon: 637 574 40 / 69
	10	904 721 40	Side Frame	2
	11	637 570 40	Support, control unit	1	InternKon: 637 573 40 / 2
	12		Control block	1	InternBDB: 655 108 40 \| InternKon: 637 573 40 / 3	991-0107
	13	308 423 99	Bolt	2	InternBDB: M16x120 /931 10.9 \| InternKon: 637 573 40 / 7
	14	308 426 99	Bolt	3	InternBDB: M16x80 /931 10.9 \| InternKon: 637 573 40 / 8
	21	308 414 99	Bolt	4	InternBDB: M20x130 /931 10.9 \| InternKon: 637 560 40 / 7
	22	316 212 99	Washer	4	InternBDB: 21 /6916 \| InternKon: 637 560 40 / 8

Komatsu H455-SD S/N 15009 parts catalog PDF

SUPPORT, CONTROL UNIT (515-1840e) in H455-SD S/N 15009. Diagram image and parts list.
