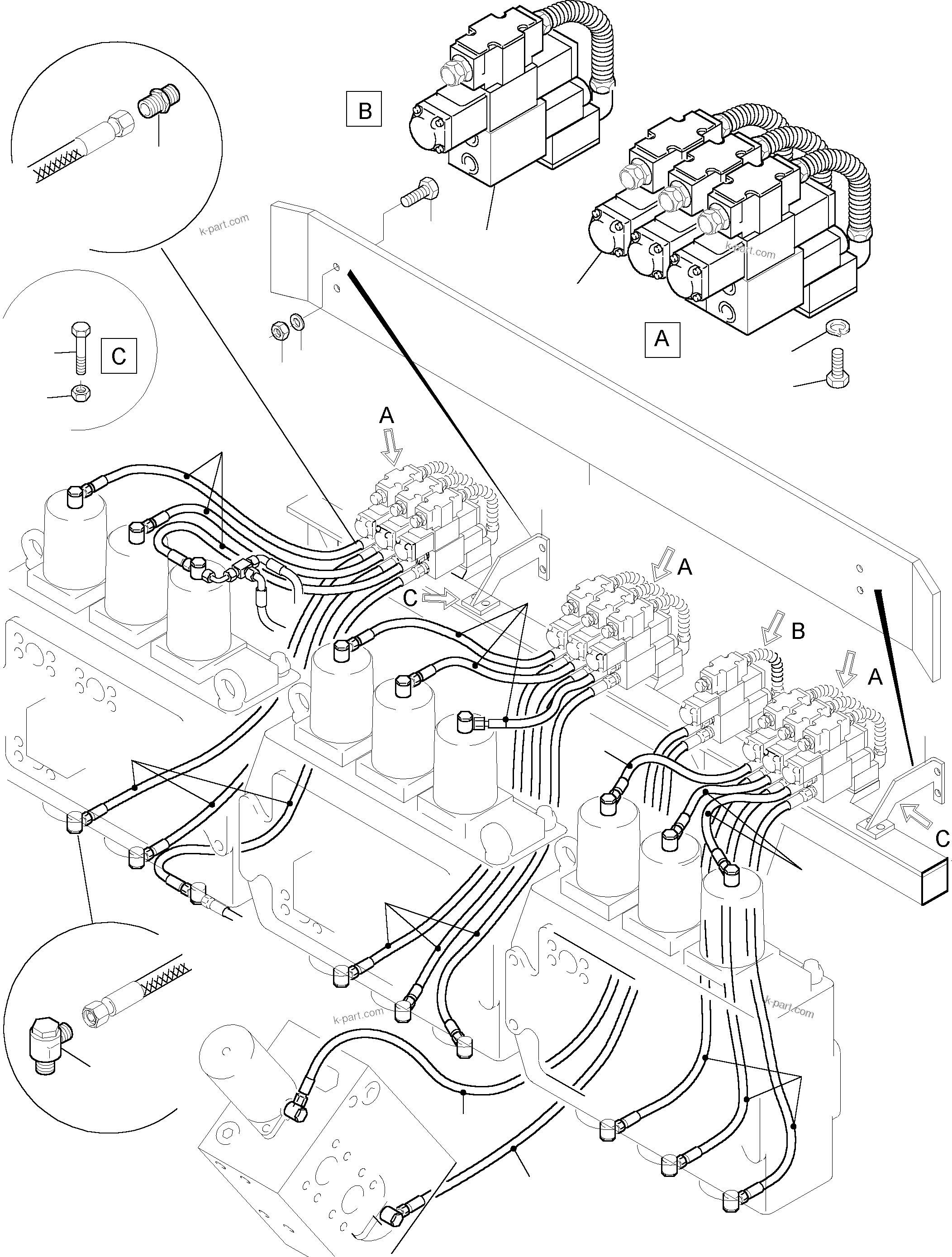

Simple remote control manifold |
1 |
InternBDB: 654 493 40 | InternKon: 637 573 40 / 5
|
991-0022a |
|
|
? |
|
Threefold remote contr. manifold |
3 |
InternBDB: 654 494 40 | InternKon: 637 574 40 / 7
|
991-0022a |
|
|
? |
346 510 99
|
Lock washer |
12 |
InternBDB: 8 /128 | InternKon: 637 574 40 / 17
|
|
|
|
? |
377 750 99
|
Bolt |
12 |
InternBDB: M8x16 /933 | InternKon: 637 574 40 / 16
|
|
|
|
? |
371 459 99
|
Socket |
19 |
InternBDB: L 12 A-G /3901 | InternKon: 637 574 40 / 23
|
|
|
|
? |
007 140 98
|
Union |
8 |
InternBDB: Voss 12-LR | InternKon: 637 574 40 / 28
|
|
|
|
? |
647 860 40
|
Hose assy. DN 10 x 630 |
9 |
InternBDB: DOL 12 /DOL 12 | InternKon: 637 574 40 / 47
|
|
|
|
? |
647 867 40
|
Hose assy.DN 10 x 1540 |
9 |
InternBDB: DOL 12 / DOL 12 | InternKon: 637 574 40 / 46
|
|
|
|
? |
647 866 40
|
Hose assy.DN 10 x 1630 |
1 |
InternBDB: DOL 12 / DOL 12 | InternKon: 637 573 40 / 38
|
|
|
|
? |
647 867 40
|
Hose assy.DN 10 x 1540 |
1 |
InternBDB: DOL 12 / DOL 12 | InternKon: 637 573 40 / 39
|
|
|
|
? |
909 069 40
|
Retainer |
-2 |
|
|
|
|
? |
909 065 40
|
Protection Plate |
1 |
InternKon: 909 076 40 / 2
|
|
|
|
? |
507 037 98
|
Nut |
4 |
InternBDB: M10 / 985 | InternKon: 909 076 40 / 3
|
|
|
|
? |
307 777 99
|
Bolt |
4 |
InternBDB: M10x25 / 933 | InternKon: 909 076 40 / 4
|
|
|
|
? |
334 600 99
|
Nut |
4 |
InternBDB: M12 / 985 | InternKon: 909 076 40 / 6
|
|
|
|
? |
307 805 99
|
Bolt |
4 |
InternBDB: M12x35 / 985 | InternKon: 909 076 40 / 5
|
|
|
|
? |
340 465 99
|
Washer |
4 |
InternBDB: 10,5 | InternKon: 909 076 40 / 7
|
|
