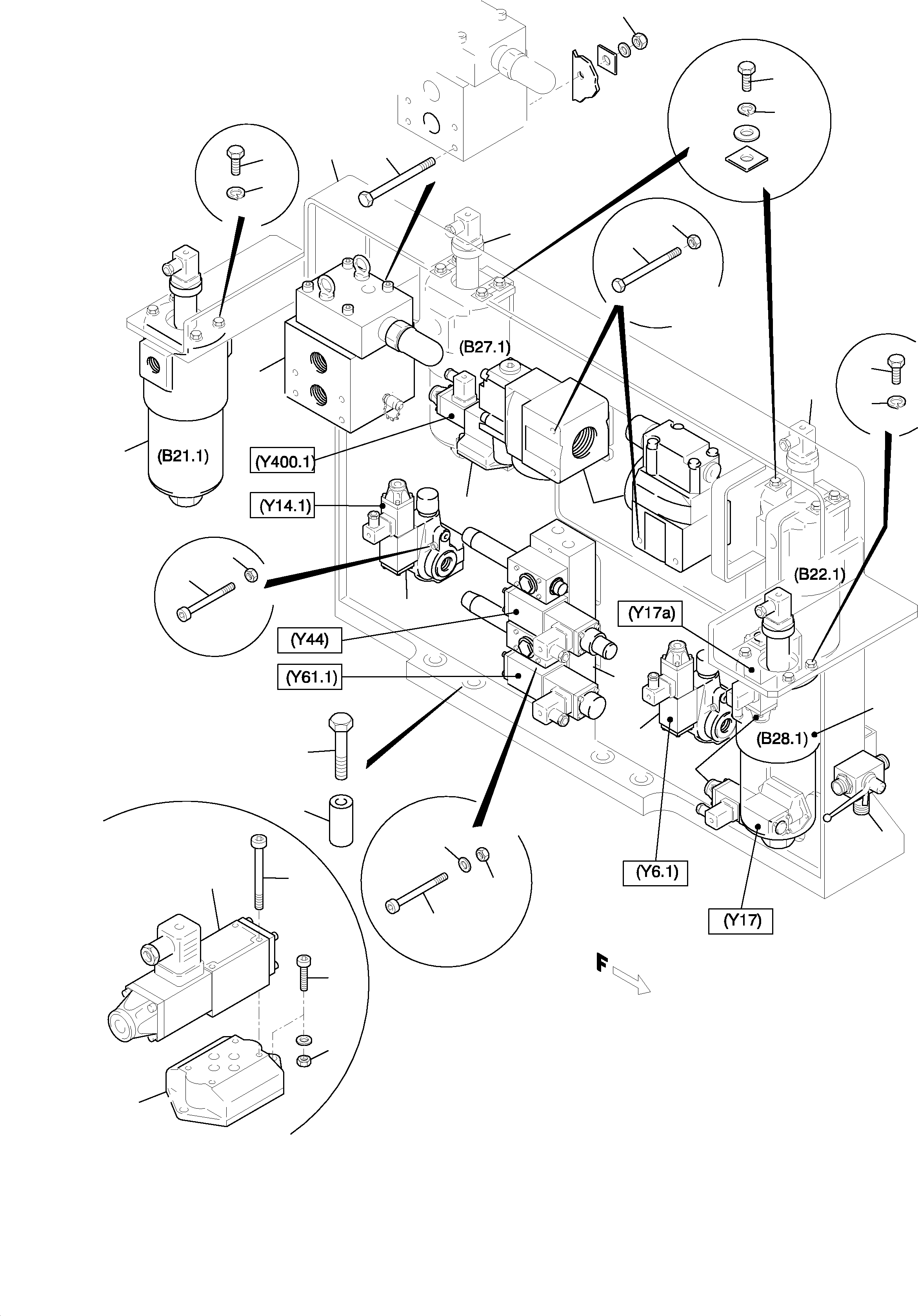

01 |
674 928 40
|
Control- and filter plate assy |
1 |
InternBDB: DKG | InternKon: 674 942 40 / 1
|
|
|
|
02 |
872 245 40
|
Control- and filter plate |
1 |
InternBDB: DKG | InternKon: 674 928 40 / 1
|
|
|
|
03 |
|
Valve block |
1 |
InternBDB: 506 222 40 | InternKon: 674 928 40 / 2
|
112-1831-2 |
|
|
04 |
|
Mutli station manifold blocks |
1 |
InternBDB: 674 941 40 | InternKon: 674 928 40 / 3
|
515-1894a |
|
|
05 |
|
Filter (Gear oil) |
1 |
InternBDB: 592 450 40 | InternKon: 674 928 40 / 4
|
090-5565b |
|
|
06 |
|
Pressure filter (Fan oil) |
1 |
InternBDB: 635 724 40 | InternKon: 674 928 40 / 5
|
991-0040 |
|
|
07 |
|
Pressure filter (Pilot oil) |
1 |
InternBDB: 635 724 40 | InternKon: 674 928 40 / 5
|
991-0040 |
|
|
08 |
|
Pressure filter (Fan water) |
1 |
InternBDB: 635 724 40 | InternKon: 674 928 40 / 5
|
991-0040 |
|
|
09 |
368 254 40
|
Pressure relief valve |
2 |
InternBDB: Rexroth DBW 20 AG 2 | InternKon: 674 928 40 / 6
|
|
|
|
10 |
896 724 40
|
Pressure relief valve |
2 |
InternBDB: Rexroth DB 25-G2-5x/100 | InternKon: 674 928 40 / 7
|
|
|
|
11 |
654 994 40
|
3 way ball cock |
1 |
InternBDB: Pister BK 3 | InternKon: 674 928 40 / 8
|
|
|
|
12 |
256 425 40
|
4/2 way directional spool valve |
3 |
InternBDB: Rexroth 4 WE-06 / C 50 AG | InternKon: 674 928 40 / 9
|
|
|
|
13 |
180 325 40
|
Base plate |
3 |
InternBDB: G 342 / 1 | InternKon: 674 928 40 / 10
|
|
|
|
14 |
308 433 99
|
Bolt |
4 |
InternBDB: M12x150 / 931- 10.9 | InternKon: 674 928 40 / 11
|
|
|
|
15 |
334 682 99
|
Nut |
4 |
InternBDB: M12 / 985 | InternKon: 674 928 40 / 12
|
|
|
|
16 |
320 006 99
|
Bolt |
4 |
InternBDB: M6x80 / 912 8.8 | InternKon: 674 928 40 / 13
|
|
|
|
17 |
507 025 98
|
Nut |
12 |
InternBDB: M6 / 985 8 | InternKon: 674 928 40 / 14
|
|
|
|
18 |
340 506 99
|
Washer |
12 |
InternBDB: A 6,4 / /125 | InternKon: 674 928 40 / 15
|
|
|
|
19 |
307 775 99
|
Bolt |
16 |
InternBDB: M10x20 / 933 8.8 | InternKon: 674 928 40 / 16
|
|
|
|
20 |
346 500 99
|
Lock washer |
16 |
InternBDB: A10 / 128 | InternKon: 674 928 40 / 17
|
|
|
|
21 |
319 426 99
|
Bolt |
4 |
InternBDB: M8X70 / 912 8.8 | InternKon: 674 928 40 / 18
|
|
|
|
22 |
334 599 99
|
Nut |
4 |
InternBDB: M8 / 985 8.0 | InternKon: 674 928 40 / 19
|
|
|
|
23 |
308 585 99
|
Bolt |
4 |
InternBDB: M10x100 / 985 8.0 | InternKon: 674 928 40 / 20
|
|
|
|
24 |
507 037 98
|
Nut |
4 |
InternBDB: M10 / 985 8.0 | InternKon: 674 928 40 / 21
|
|
|
|
26 |
308 444 99
|
Bolt |
8 |
InternBDB: M16x100 / 931 10.9 | InternKon: 872 264 40 / 17
|
|
|
|
27 |
510 733 98
|
Resilient slave |
8 |
InternBDB: 17/ 30X50 | InternKon: 872 264 40 / 18
|
|
|
|
28 |
319 133 99
|
Bolt |
6 |
InternBDB: M6x30 / 933 10.9 | InternKon: 674 928 40 / 23
|
|
|
|
29 |
332 110 99
|
Nut |
6 |
InternBDB: M6 / 934 | InternKon: 674 928 40 / 14
|
|
|
|
30 |
319 174 99
|
Bolt |
6 |
InternBDB: M5x50 / 912 | InternKon: 674 928 40 / 24
|
|
