H455-SD S/N 15009

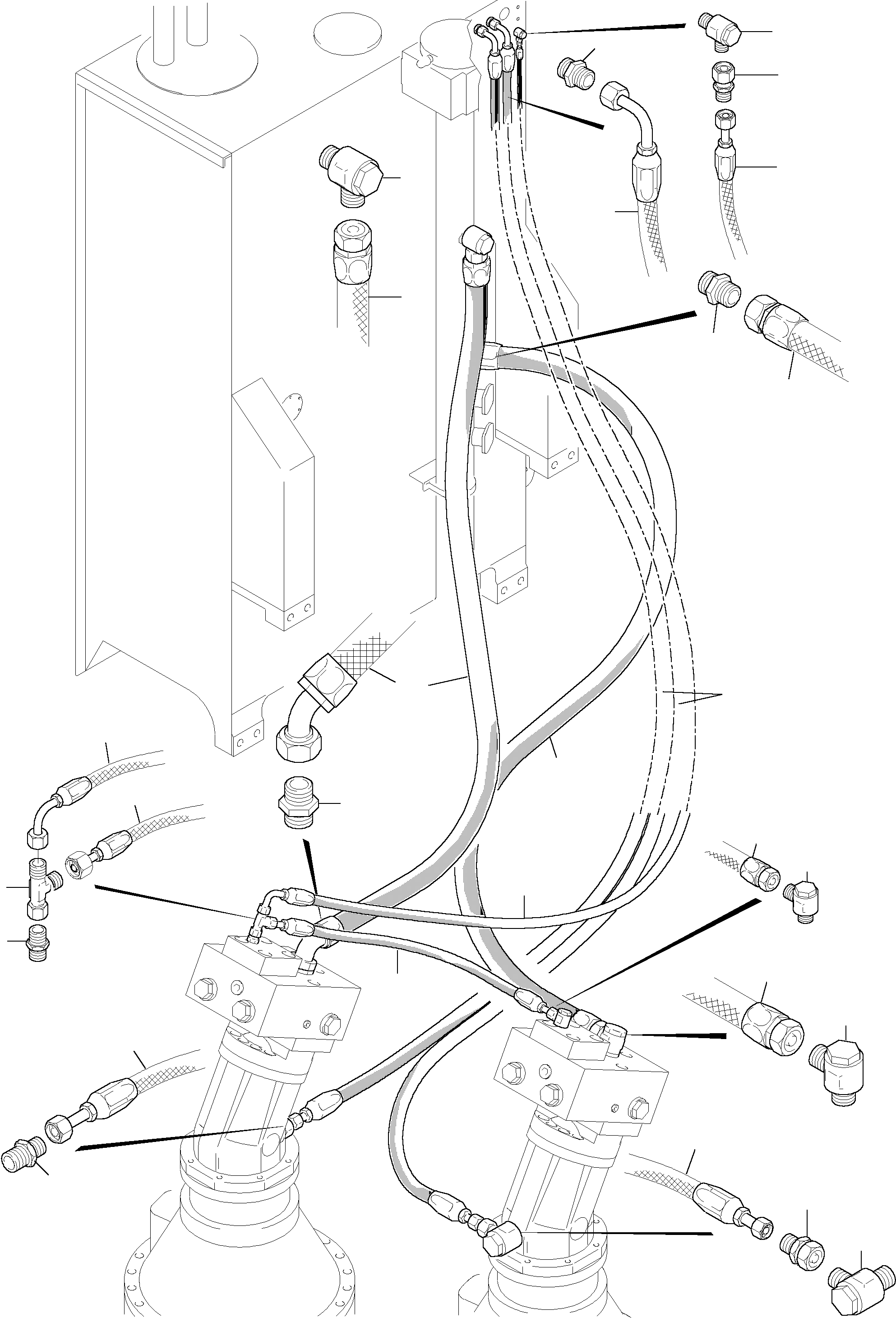

Komatsu parts book diagram for H455-SD S/N 15009: TANK LINES - SLEW GEAR

01 02 03 04 05 05 05 06 06 06 07 08 08 09 09 10 10 11 11 11 12 14 15 15 16 16 16 16

	#	Part Number	Partname	Quantity	Options	Reference
	01	374 416 99	Socket	1	InternBDB: L 10 A-G 1/4 /3901 \| InternKon: 647 801 40 / 49
	02	516 173 98	Socket	1	InternBDB: L 10 /3944 \| InternKon: 647 801 40 / 52
	03	513 694 98	Socket	1	InternBDB: RED 15/10L / 34199440 \| InternKon: 647 801 40 / 57
	04	006 916 98	Union	1	InternBDB: Voss 15-LM \| InternKon: 647 801 40 / 41
	05	643 995 40	Hose DN 08 x 3500	1	InternBDB: 240 DOL 10 / DOL 10 - 90 \| InternKon: 647 801 40 / 26
	06	513 256 98	Hose DN 08 x 980	1	InternBDB: 240 DOL 10 / DOL 10 \| InternKon: 647 801 40 / 31
	07	006 894 98	Union	1	InternBDB: Voss 10-LR \| InternKon: 647 801 40 / 43
	08	374 415 99	Socket	2	InternBDB: L 42 B-M /3901 \| InternKon: 647 801 40 / 50
	09	007 137 98	Union	2	InternBDB: Voss 42-LM \| InternKon: 647 801 40 / 42
	10	516 154 98	Hose assy.DN 40x850	1	InternBDB: SHL 120 DOL 42 /DOL 42-90 \| InternKon: 647 801 40 / 18
	11	516 155 98	Hose assy.DN 40x1000	1	InternBDB: SHL 120 DOL 42 /DOL 42-45 \| InternKon: 647 801 40 / 19
	12	007 135 98	Union	1	InternBDB: Voss 28-LM \| InternKon: 647 801 40 / 44
	14	374 408 99	Socket	2	InternBDB: L 18 B-M /3901 \| InternKon: 647 801 40 / 45
	15	514 290 98	Socket	2	InternBDB: RED 28/18-PL / 34199440 \| InternKon: 647 801 40 / 56
	16	512 323 98	Hose assy.DN 16x2980	2	InternBDB: DOL 18 /DOL 18-90 \| InternKon: 647 801 40 / 20

Komatsu H455-SD S/N 15009 parts catalog PDF

TANK LINES - SLEW GEAR (515-1849b) in H455-SD S/N 15009. Diagram image and parts list.
