H455-SD S/N 15009

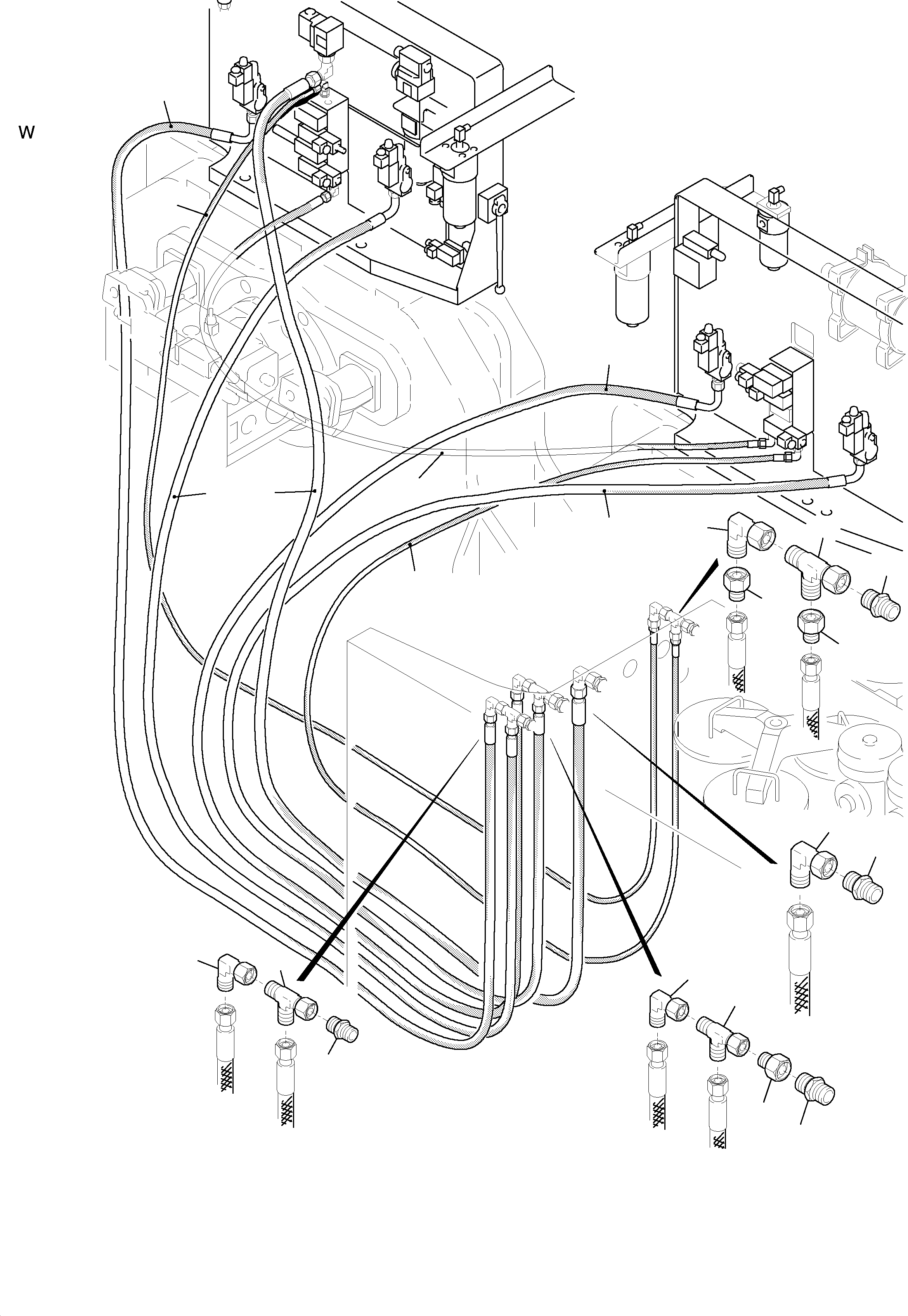

Komatsu parts book diagram for H455-SD S/N 15009: TANK LINES, CONTROL,-AND FILTER PLATES

01 02 03 04 05 06 06 07 08 09 09 10 10 11 11 12 12 13 14 15 16 17

	#	Part Number	Partname	Quantity	Options	Reference
	01	513 844 98	Hose assy. DN 25 x 6600	1	InternBDB: DOL 28 / DOL 28 - 90 \| InternKon: 674 955 40 / 37
	02	510 906 98	Hose assy. DN 25 x 7100	1	InternBDB: DOL 28 / DOL 28 - 90 \| InternKon: 674 955 40 / 39
	03	513 845 98	Hose assy. DN 32 x 8200	1	InternBDB: DOL 35 / DOL 35 \| InternKon: 674 955 40 / 41
	04	513 220 98	Hose assy. DN 25 x 8050	1	InternBDB: DOL 28 / DOL 28 - 90 \| InternKon: 674 955 40 / 40
	05	623 447 40	Hose assy. DN 25 x 8600	1	InternBDB: DOL 28 / DOL 28 - 90 \| InternKon: 674 955 40 / 38
	06	374 422 99	Union	3	InternBDB: L 35-M \| InternKon: 674 955 40 / 64
	07	372 177 99	Union	1	InternBDB: DDL 35
	08	372 925 99	Union	1	InternBDB: KOR 35/28 \| InternKon: 674 955 40 / 65
	09	371 957 99	Union	2	InternBDB: FFL 28 \| InternKon: 674 955 40 / 52
	10	372 176 99	Union	2	InternBDB: DDL 28
	11	372 176 99	Union	2	InternBDB: 28-LM
	12	372 916 99	Union	2	InternBDB: KOR 28/18 \| InternKon: 674 955 40 / 66
	13	372 176 99	Union	1	InternBDB: DDL 28 \| InternKon: 674 955 40 / 58
	14	513 846 98	Hose assy. DN 16 x 6700	1	InternBDB: DOL 18 / DOL 18 \| InternKon: 674 955 40 / 42
	15	513 847 98	Hose assy. DN 16 x 8400	1	InternBDB: DOL 18 / DOL 18 \| InternKon: 674 955 40 / 43
	16	371 957 99	Union	1	InternBDB: FFL 28
	17	592 040 40	Hose assy. DN 22 x 5000	1	InternBDB: DOL 22 / DOL 22 \| InternKon: 674 955 40 / 67

Komatsu H455-SD S/N 15009 parts catalog PDF

TANK LINES, CONTROL,-AND FILTER PLATES (515-1835b) in H455-SD S/N 15009. Diagram image and parts list.
