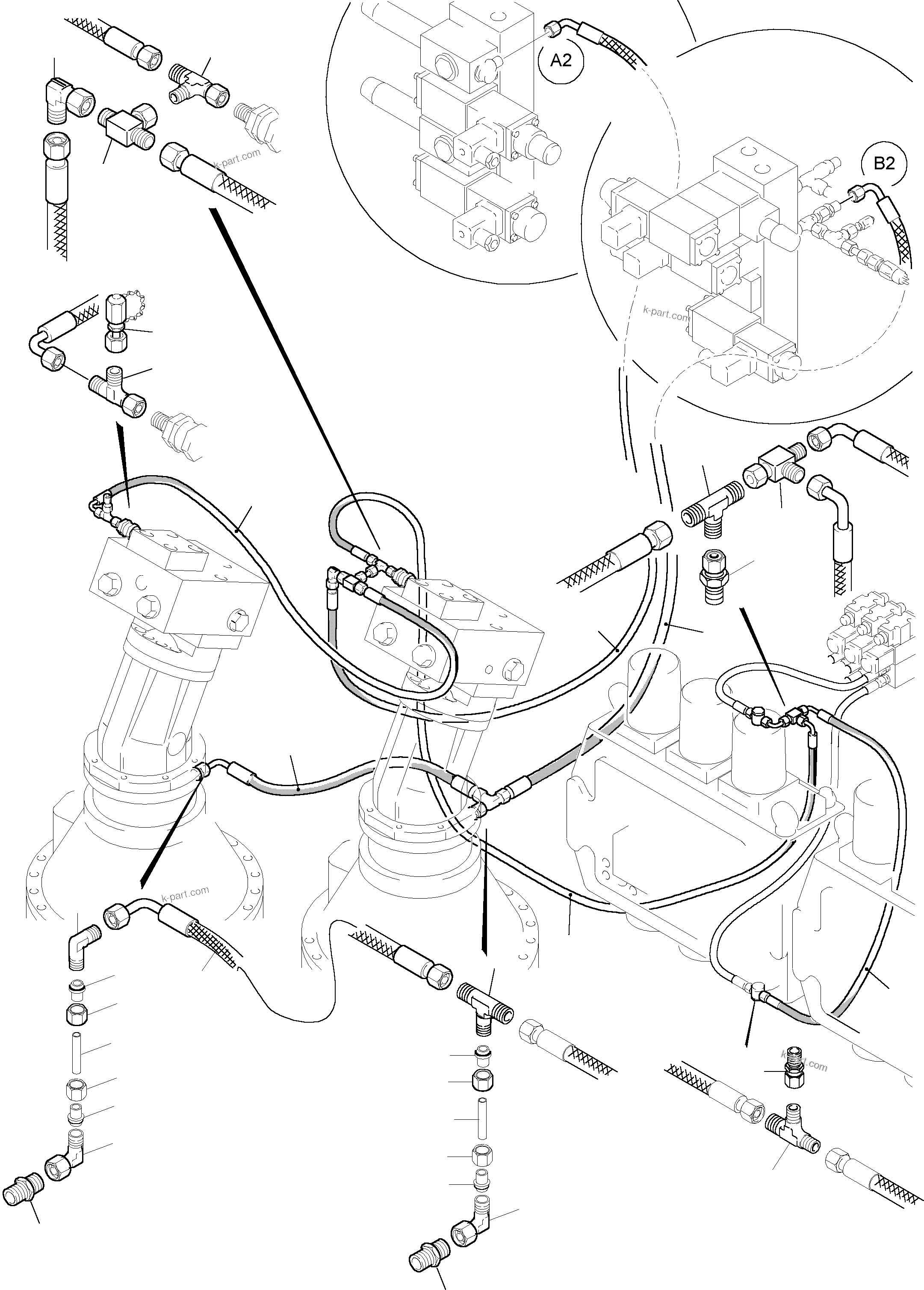

CONTROL - SLEW GEAR | H455-SD S/N 15009 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	643 866 40	Hose assy.DN 10 x 850	1	InternBDB: DOL 12 / DOL 12 \| InternKon: 647 801 40 / 30
?	513 193 98	Hose assy.DN 10 x 2100	1	InternBDB: DOL 12 /DOL 12-90 \| InternKon: 647 801 40 / 86
?	576 299 40	Hose assy.DN 12 x 1300	1	InternBDB: DOL 15 / DOL 15-90 \| InternKon: 647 801 40 / 24
?	592 092 40	Hose assy.DN 12 x 5300	1	InternBDB: DOL 15 / DOL 15 - 90 \| InternKon: 674 955 40 / 29
?	513 463 98	Hose assy.DN 10 x 6300	1	InternBDB: DOL 12 / DOL 12 - 90 \| InternKon: 674 955 40 / 68
?	643 705 40	Hose assy.DN 10x1000	1	InternBDB: DOL 12 /DOL 12-90 \| InternKon: 637 574 40 / 54
?	343 873 40	Shuttle valve	2	InternBDB: 12-L \| InternKon: 637 574 40 / 56
?	215 429 99	Pipe Ш 15 Bulk ware, state length required	-2	InternBDB: 903 935 40 \| InternKon: 637 574 40 / 55
?	516 174 98	Socket	2	InternBDB: L 12 / 3944 \| InternKon: 647 801 40 / 53
?	516 157 98	Socket	1	InternBDB: L 12 / 3942
?	502 752 98	Test socket	1	InternBDB: A 12-L \| InternKon: 647 801 40 / 59
?	374 407 99	Union	3	InternBDB: L 15 / 3901 \| InternKon: 647 801 40 / 48
?	516 158 98	Socket	2	InternBDB: L15 / 3942
?	906 348 40	Olive	4	InternBDB: ES4-L15
?	371 275 99	Nut	4	InternBDB: AL 15 / 3870
?	370 324 99	Union	1	InternBDB: K L 15 /2353
?	372 614 99	Union	1	InternBDB: Q L15 / 2353
?	516 167 98	Socket	1
?	371 459 98	Socket	1	InternBDB: L 12E-G 3/8 / 3901
?	516 174 98	Socket	1	InternBDB: L12 / 3944
?	516 184 98	Socket	1	InternBDB: L12-G / 3945
