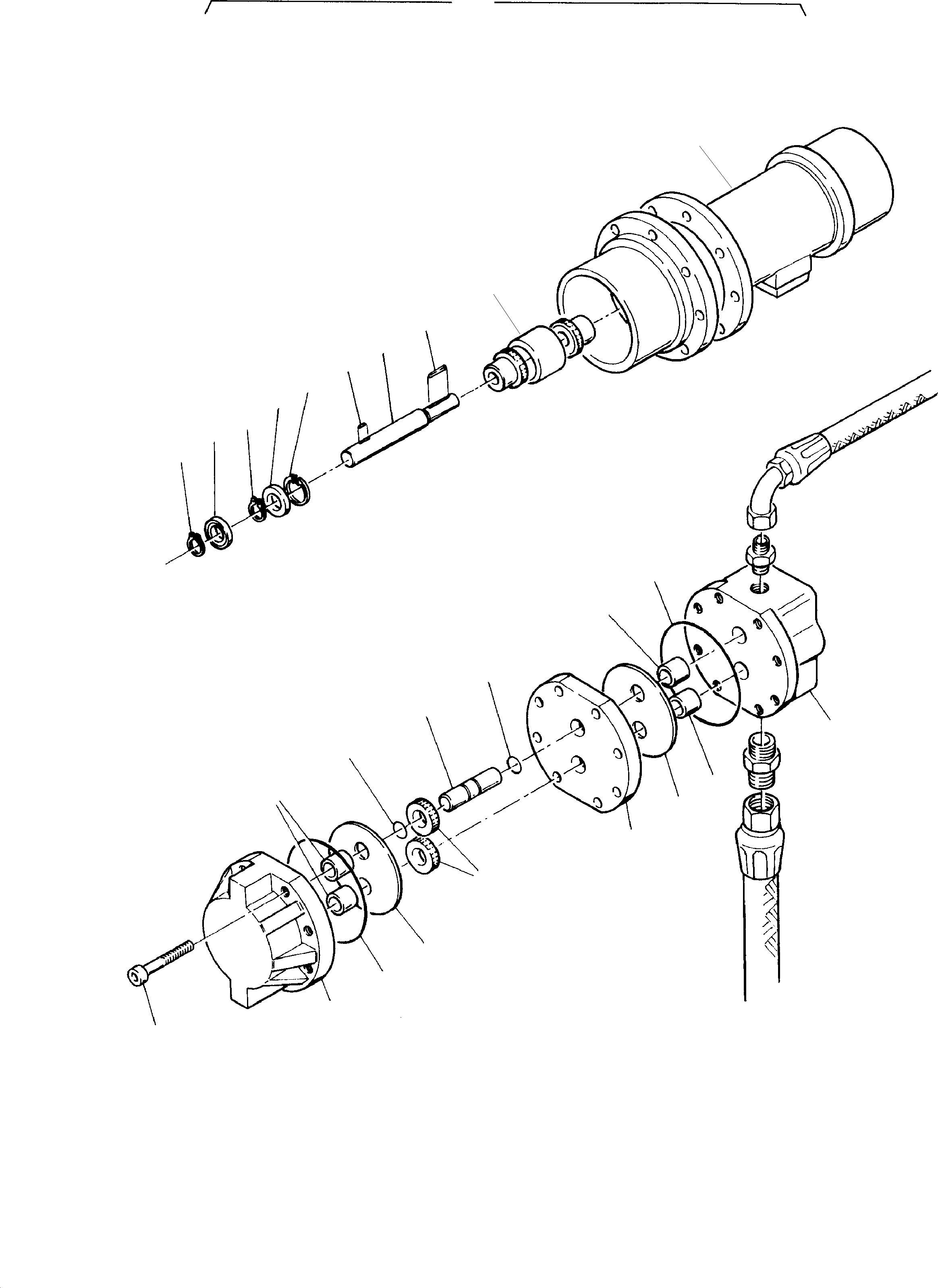

01 |
372 329 40
|
Pump unit, assy. |
1 |
InternBDB: IKL 41.350.1.L. W.G.L-M 3/5 Kom. 02322/86 AT-Nr. 668 949
|
|
|
|
02 |
319 432 99
|
Screw |
8 |
InternBDB: M10x80 /912 | InternKon: 4000.31500.01.02 / 15
|
|
|
|
03 |
754 656
|
Backboard |
1 |
InternKon: 4000.31500.01.02 / 3
|
|
|
|
04 |
504 977 98
|
O-ring |
1 |
InternBDB: 116x3 80Sh | InternKon: 4000.31500.01.02 / 28
|
|
|
|
05 |
973 183
|
Slide bush |
4 |
InternBDB: IHG 2530-DU 25x28x30 | InternKon: 4000.31500.01.02 / 12
|
|
|
|
06 |
754 657
|
Stop washer |
2 |
InternBDB: DU-Brille | InternKon: 4000.31500.01.02 / 16
|
|
|
|
07 |
754 666
|
Snap ring |
2 |
InternBDB: 25x1,5 | InternKon: 4000.31500.01.02 / 7
|
|
|
|
|$$8 |
767 197 73
|
Drive shaft assy.
Fig-no. 08/09/10 |
1 |
|
|
|
|
08 |
754 658
|
Gear |
2 |
InternKon: 4000.31500.01.02 / 6
|
|
|
|
09 |
754 659
|
Shaft |
1 |
InternKon: 4000.31500.01.02 / 5
|
|
|
|
10 |
754 660
|
Drive shaft |
1 |
InternKon: 4000.31500.01.02 / 4
|
|
|
|
11 |
354 273 99
|
Feather key |
2 |
InternBDB: A8x7x25 /6885 | InternKon: 4000.31500.01.02 / 13
|
|
|
|
12 |
754 661
|
Central plate |
1 |
InternKon: 4000.31500.01.02 / 2
|
|
|
|
13 |
354 262 99
|
Feather key |
1 |
InternBDB: A6x6x36 /6685 | InternKon: 4000.31500.01.02 / 14
|
|
|
|
14 |
342 647 99
|
Circlip |
2 |
InternBDB: 47x1,75 /472 | InternKon: 4000.31500.01.02 / 8
|
|
|
|
15 |
504 978 98
|
Shaft seal |
1 |
InternBDB: 25x47x7 BASL | InternKon: 4000.31500.01.02 / 10
|
|
|
|
16 |
342 525 99
|
Circlip |
2 |
InternBDB: 25x1,2 /471 | InternKon: 4000.31500.01.02 / 9
|
|
|
|
17 |
360 505 99
|
Ball bearing |
1 |
InternBDB: 6005 /625 | InternKon: 4000.31500.01.02 / 11
|
|
|
|
18 |
754 662
|
Front plate |
1 |
InternKon: 4000.31500.01.02 / 1
|
|
|
|
19 |
754 663
|
Coupling, assy. |
1 |
|
|
|
|
20 |
767 198 73
|
E-motor |
1 |
InternBDB: 24V/0.75 kW
|
|
