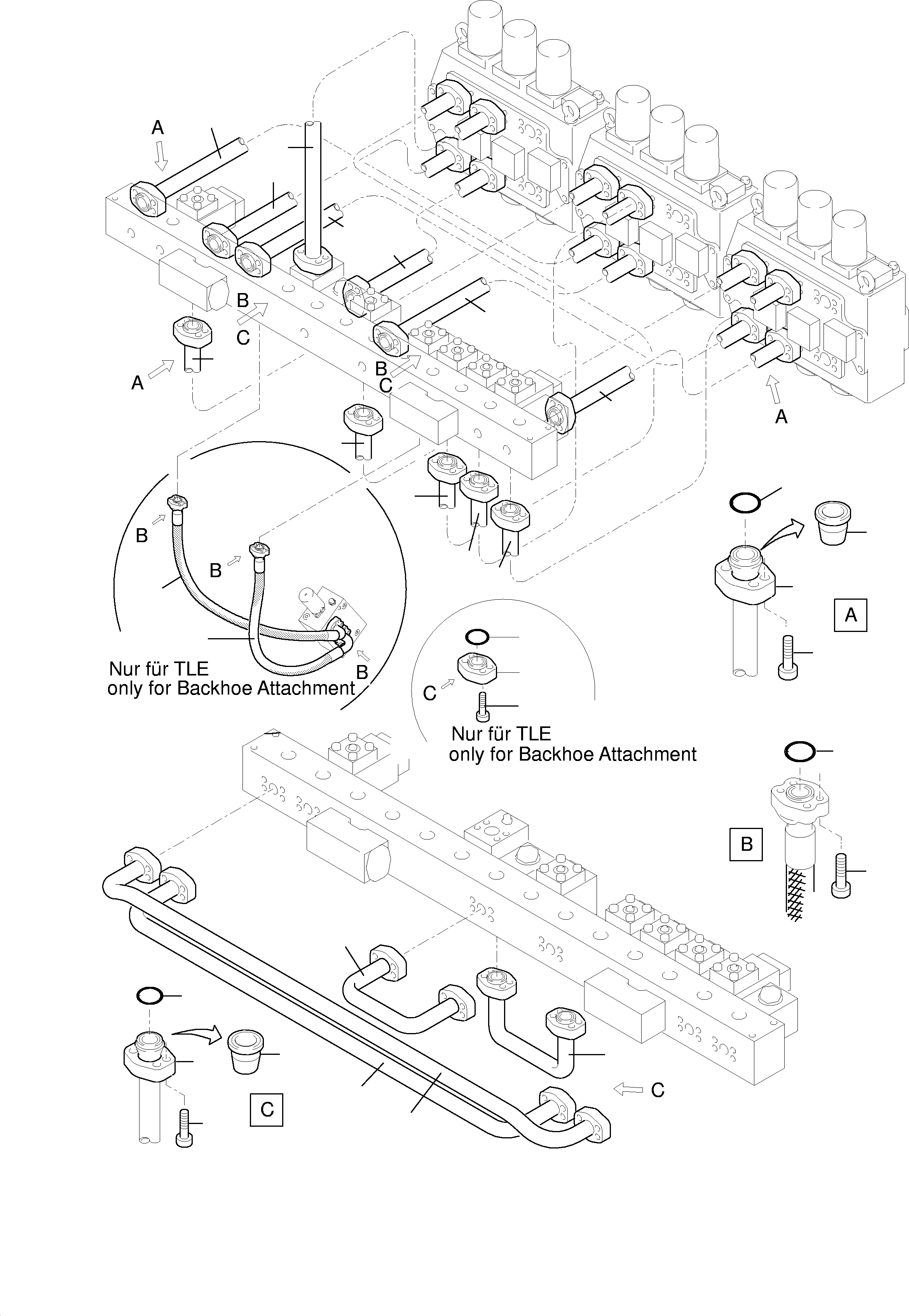

PRESSURE LINES, CONTROL BLOCKS - MANIFOLD | H455-SD S/N 15009

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	763 534 73	Pipe assy.Ш 65	1	InternBDB: 637 584 40 \| InternKon: 574 555 40 / 11
02	763 535 73	Pipe assy.Ш 65	1	InternBDB: 637 590 40 \| InternKon: 574 555 40 / 17
03	763 536 73	Pipe assy.Ш 65	1	InternBDB: 637 589 40 \| InternKon: 574 555 40 / 16
04	763 537 73	Pipe assy.Ш 65	1	InternBDB: 637 582 40 \| InternKon: 574 555 40 / 9
05	763 538 73	Pipe assy.Ш 65	1	InternBDB: 637 588 40 \| InternKon: 574 555 40 / 15
06	763 539 73	Pipe assy.Ш 65	1	InternBDB: 637 580 40 \| InternKon: 574 555 40 / 7
07	763 540 73	Pipe assy.Ш 65	1	InternBDB: 637 578 40 \| InternKon: 574 555 40 / 5
08	763 541 73	Pipe assy.Ш 65	1	InternBDB: 637 585 40 \| InternKon: 574 555 40 / 12
09	763 542 73	Pipe assy.Ш 65	1	InternBDB: 637 581 40 \| InternKon: 574 555 40 / 8
10	763 543 73	Pipe assy.Ш 65	1	InternBDB: 637 591 40 \| InternKon: 574 555 40 / 18
11	763 544 73	Pipe assy.Ш 65	1	InternBDB: 637 583 40 \| InternKon: 574 555 40 / 10
12	763 545 73	Pipe assy.Ш 65	1	InternBDB: 637 579 40 \| InternKon: 574 555 40 / 6
13	763 546 73	Pipe assy.Ш 50	2	InternBDB: 637 594 40 \| InternKon: 574 555 40 / 21
14	763 547 73	Pipe assy.Ш 50	1	InternBDB: 637 593 40 \| InternKon: 574 555 40 / 20
15	763 548 73	Pipe assy.Ш 50	1	InternBDB: 637 592 40 \| InternKon: 574 555 40 / 19
16	504 448 98	Flange	24	InternBDB: FE-6500-32/6 \| InternKon: 574 555 40 / 22
17	504 461 98	Collar ring	24	InternBDB: K-6580-32 \| InternKon: 574 555 40 / 23
18	385 243 40	O-ring	24	InternBDB: 2" \| InternKon: 574 555 40 / 24
19	319 323 99	Bolt	96	InternBDB: M20x90 \| InternKon: 574 555 40 / 25
20	319 289 99	Bolt	32	InternBDB: M16x60 \| InternKon: 574 555 40 / 29
21	500 127 98	Flange	8	InternBDB: FE-5000-24/6 \| InternKon: 574 555 40 / 26
22	501 898 98	Collar ring	8	InternBDB: K-5060-24 \| InternKon: 574 555 40 / 27
23	356 209 40	O-ring	12	InternBDB: 1 1/2" \| InternKon: 574 555 40 / 28
30	653 695 40	Hose assy.DN 40x1615	1	InternBDB: TL \| InternKon: 637 573 40 / 33
31	653 694 40	Hose assy.DN 40x1835	1	InternBDB: TL \| InternKon: 637 573 40 / 34
32	319 288 99	Bolt	16	InternBDB: M16x50 \| InternKon: 637 573 40 / 19
35	385 243 40	Tetra seal	4	InternKon: 890 080 40 / 3
36	506 582 98	Plug flange	4	InternKon: 890 080 40 / 8
37	319 310 99	Bolt	16	InternBDB: M20x50 /912 10.9 \| InternKon: 890 080 40 / 9
