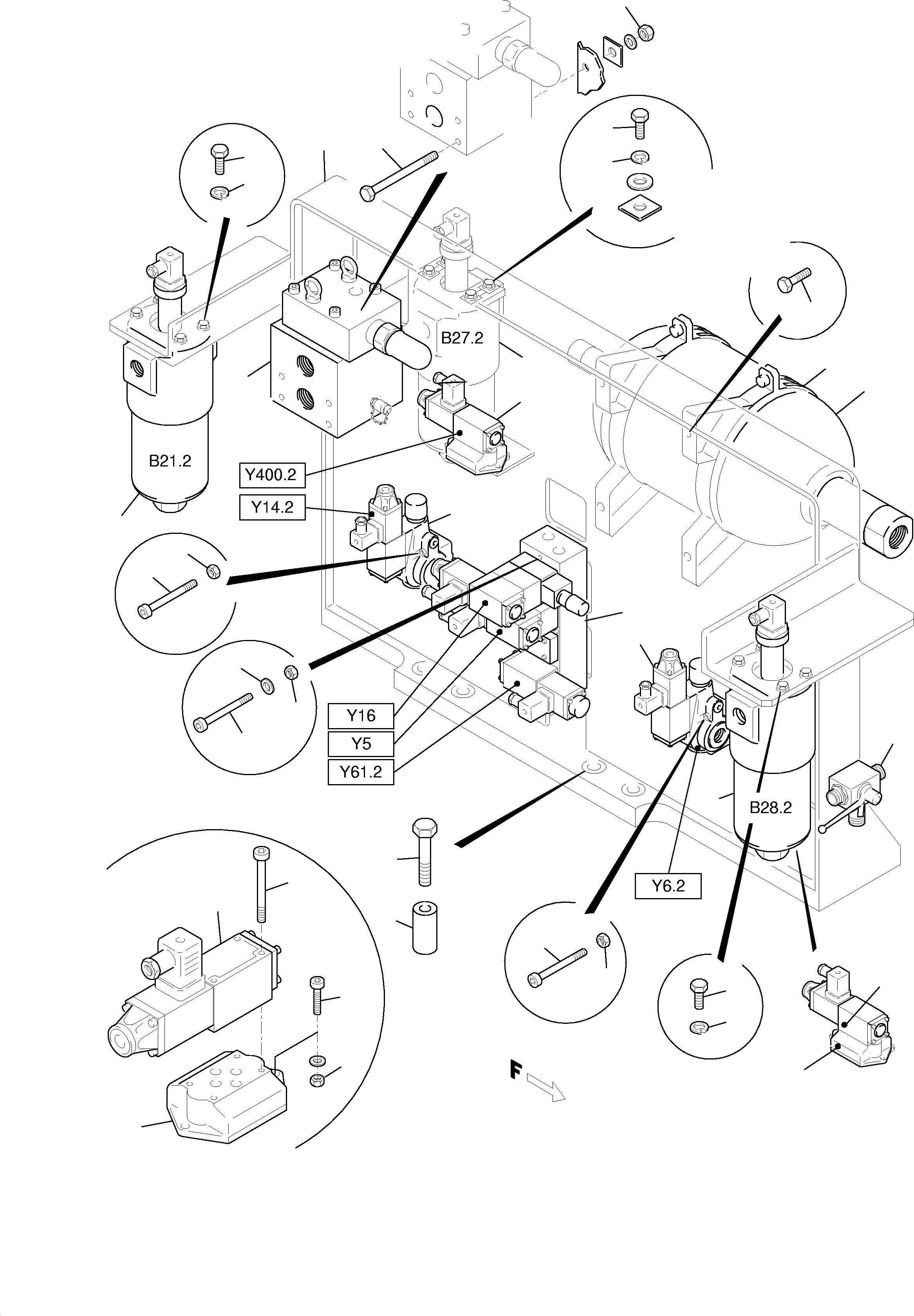

01 |
674 927 40
|
Control- and filter plate assy |
1 |
InternBDB: DKG | InternKon: 674 942 40 / 1
|
|
|
|
02 |
872 235 40
|
Control- and filter plate |
1 |
InternBDB: DKG | InternKon: 674 927 40 / 1
|
|
|
|
03 |
|
Valve block |
1 |
InternBDB: 506 222 40 | InternKon: 674 927 40 / 2
|
112-1831-2 |
|
|
04 |
|
Multi station manifold blocks |
1 |
InternBDB: 674 929 40 | InternKon: 674 927 40 / 3
|
515-1893a |
|
|
05 |
|
Filter ( gear oil ) |
1 |
InternBDB: 592 450 40 | InternKon: 674 927 40 / 4
|
090-5565b |
|
|
06 |
308 444 99
|
Bolt |
8 |
InternBDB: M16x100 / 931 - 10.9 | InternKon: 872 264 40 / 17
|
|
|
|
07 |
510 733 98
|
Resilient sleeve |
8 |
InternBDB: 17 / 30x50 | InternKon: 872 264 40 / 18
|
|
|
|
08 |
654 994 40
|
3 way ball cock |
1 |
InternBDB: Pister BK 3 | InternKon: 674 927 40 / 7
|
|
|
|
09 |
308 433 09
|
Bolt |
4 |
InternBDB: M 12x150 / 931 10.9 | InternKon: 674 927 40 / 8
|
|
|
|
10 |
334 682 99
|
Nut |
8 |
InternBDB: M 12 / 985 -10 | InternKon: 674 927 40 / 9
|
|
|
|
11 |
320 006 99
|
Bolt |
4 |
InternBDB: M 6x80 / 912 8.8 | InternKon: 674 927 40 / 10
|
|
|
|
12 |
507 025 98
|
Nut |
8 |
InternBDB: M 6 / 985 - 8 | InternKon: 674 927 40 / 11
|
|
|
|
13 |
340 506 99
|
Washer |
8 |
InternBDB: A 6.4 / 125 140 HV | InternKon: 674 927 40 / 12
|
|
|
|
14 |
307 775 99
|
Bolt |
12 |
InternBDB: M 10x20 / 933 - 8.8 | InternKon: 674 927 40 / 13
|
|
|
|
15 |
346 500 99
|
Lock washer |
12 |
InternBDB: A 10 / 128 - FST | InternKon: 674 927 40 / 14
|
|
|
|
16 |
319 426 99
|
Bolt |
4 |
InternBDB: M 8x70 / 912 - 8.8 | InternKon: 674 927 40 / 15
|
|
|
|
17 |
334 599 99
|
Nut |
4 |
InternBDB: M 8 / 985 - 8 | InternKon: 674 927 40 / 16
|
|
|
|
19 |
256 132 40
|
Clamp |
2 |
InternBDB: HYDAC HSS 222/229 | InternKon: 674 927 40 / 18
|
|
|
|
20 |
307 600 99
|
Bolt |
4 |
InternBDB: M 12x40 / 933 - 10.9 | InternKon: 674 927 40 / 19
|
|
|
|
21 |
|
Accumulator |
1 |
InternBDB: TT 269 067 40 / NT 239 441 40 | InternKon: 872 254 40 / 15
|
090-0270 |
|
|
22 |
256 425 40
|
4/2 Directional spool valve |
2 |
InternBDB: Rexroth 4WE 06/C50 | InternKon: 674 927 40 / 25
|
|
|
|
23 |
180 325 40
|
Base plate |
2 |
InternBDB: G 342 | InternKon: 674 927 40 / 26
|
|
|
|
24 |
|
Filter (Fan water) |
1 |
InternBDB: 635 724 40 | InternKon: 674 927 40 / 5
|
991-0040 |
|
|
25 |
|
Filter (Fan oil) |
1 |
InternBDB: 635 724 40 | InternKon: 674 927 40 / 5
|
991-0040 |
|
|
26 |
368 254 40
|
Pressure relief valve |
2 |
InternBDB: Rexroth DBW 20 AG2-42 / 315 | InternKon: 674 927 40 / 6
|
|
|
|
27 |
307 732 99
|
Bolt |
4 |
InternBDB: M 6x25 / 933 | InternKon: 674 927 40 / 65
|
|
|
|
28 |
507 025 98
|
Nut |
4 |
InternBDB: M 6 / 934 | InternKon: 674 927 40 / 11
|
|
|
|
29 |
319 174 99
|
Bolt |
4 |
InternBDB: M 5x50 / 912 | InternKon: 674 927 40 / 64
|
|
