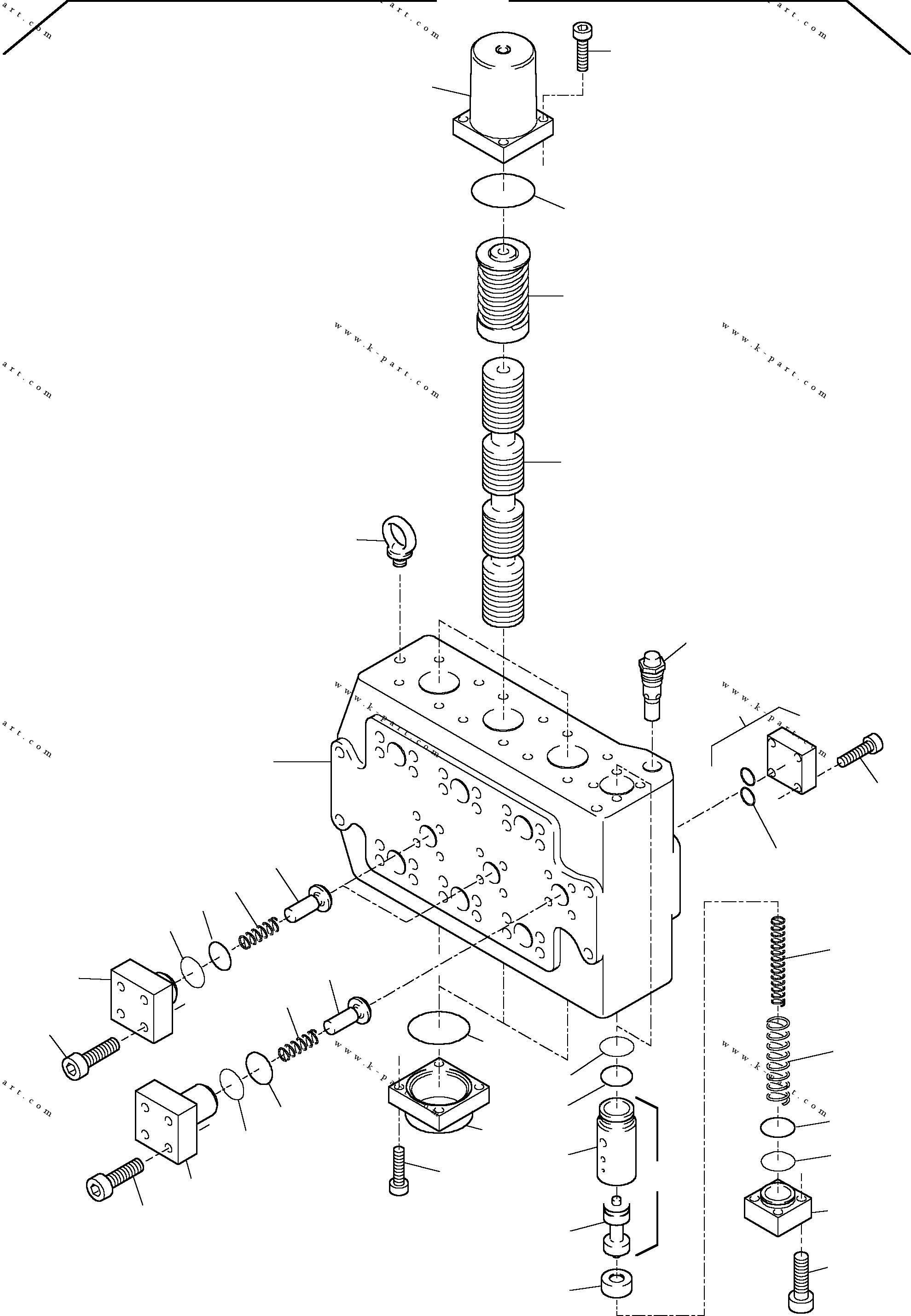

01 |
655 514 40
|
Control block assy. |
1 |
InternBDB: Rexroth MO-3423-01 Nr. 925 255 AT-Nr. 710 748 73
|
|
|
|
02 |
|
Pressure relief valve |
1 |
InternBDB: 461 498 40
|
090-0404 |
|
|
03 |
|
Housing
These parts are not sold
separately |
1 |
InternBDB: 821 222 | InternKon: H 455 / H 485 / 11
|
|
|
|
05 |
767 751 73
|
Cover |
3 |
InternBDB: 862 931 | InternKon: H 455 / H 485 / 21
|
|
|
|
06 |
319 275 99
|
Bolt |
24 |
InternBDB: M12x50 /10.9 / 912 | InternKon: H 455 / H 485 / 23
|
|
|
|
07 |
006 852 98
|
O-ring |
6 |
InternBDB: 014 447 / 110,72x3,53 | InternKon: H 455 / H 485 / 24
|
|
|
|
08 |
763 182 73
|
Spring package |
3 |
InternBDB: 545 420 | InternKon: H 455 / H 485 / 18
|
|
|
|
10 |
767 749 73
|
Piston
For replacement state
serial-no. of block |
3 |
InternBDB: 826 500 | InternKon: H 455 / H 485 / 13
|
|
|
|
12 |
313 504 99
|
Eyebolt |
2 |
InternBDB: M 20 /580 | InternKon: H 455 / H 485 / 53
|
|
|
|
13 |
754 576
|
Sealing plate |
6 |
InternBDB: 300 549 | InternKon: H 455 / H 485 / 50
|
|
|
|
14 |
756 344 73
|
Seal |
12 |
InternBDB: 003 340
|
|
|
|
15 |
319 159 99
|
Bolt |
24 |
InternBDB: M12x50 /10.9 - 912 | InternKon: H 455 / H 485 / 6
|
|
|
|
16 |
763 186 73
|
Taper |
3 |
InternBDB: 814 934 | InternKon: H 455 / H 485 / 27
|
|
|
|
17 |
763 187 73
|
Compression spring |
3 |
InternBDB: 002 079 | InternKon: H 455 / H 485 / 17
|
|
|
|
18 |
763 188 73
|
Support ring |
5 |
InternBDB: 002 148 | InternKon: H 455 / H 485 / 33
|
|
|
|
19 |
502 900 98
|
O-ring |
5 |
InternBDB: 008 940 63,09x3,53 | InternKon: H 455 / H 485 / 32
|
|
|
|
20 |
763 189 73
|
Cover |
2 |
InternBDB: 821 229 | InternKon: H 455 / H 485 / 29
|
|
|
|
21 |
763 190 73
|
Cover |
1 |
InternBDB: 821 230 | InternKon: H 455 / H 485 / 30
|
|
|
|
22 |
763 191 73
|
Cover |
2 |
InternBDB: 821 226 | InternKon: H 455 / H 485 / 40
|
|
|
|
23 |
319 384 98
|
Bolt |
20 |
InternBDB: M20x70 /912 | InternKon: H 455 / H 485 / 31
|
|
|
|
24 |
763 192 73
|
Cover |
3 |
InternBDB: 821 228 | InternKon: H 455 / H 485 / 22
|
|
|
|
25 |
007 263 98
|
O-ring |
2 |
InternBDB: 004 478 60,00x3,00 | InternKon: H 455 / H 485 / 41
|
|
|
|
26 |
997 791
|
Support ring |
2 |
InternBDB: 011 102 | InternKon: H 455 / H 485 / 42
|
|
|
|
27 |
767 750 73
|
Piston-Bushing-Set
consist of Fig-No. 28 a. 29 |
2 |
InternBDB: 843 110 | InternKon: H 455 / H 485 / 35
|
|
|
|
28 |
|
Bushing
These parts are not sold
separately |
2 |
InternBDB: 826 908
|
|
|
|
29 |
|
Piston
These parts are not sold
separately |
2 |
InternBDB: 833 350
|
|
|
|
30 |
754 588
|
Spring plate |
2 |
InternBDB: 157 852 | InternKon: H 455 / H 485 / 37
|
|
|
|
31 |
994 838
|
Compression spring |
2 |
InternBDB: 011 104 | InternKon: H 455 / H 485 / 38
|
|
|
|
32 |
994 837
|
Compression spring |
2 |
InternBDB: 011 105 | InternKon: H 455 / H 485 / 39
|
|
