H455-SD S/N 15009

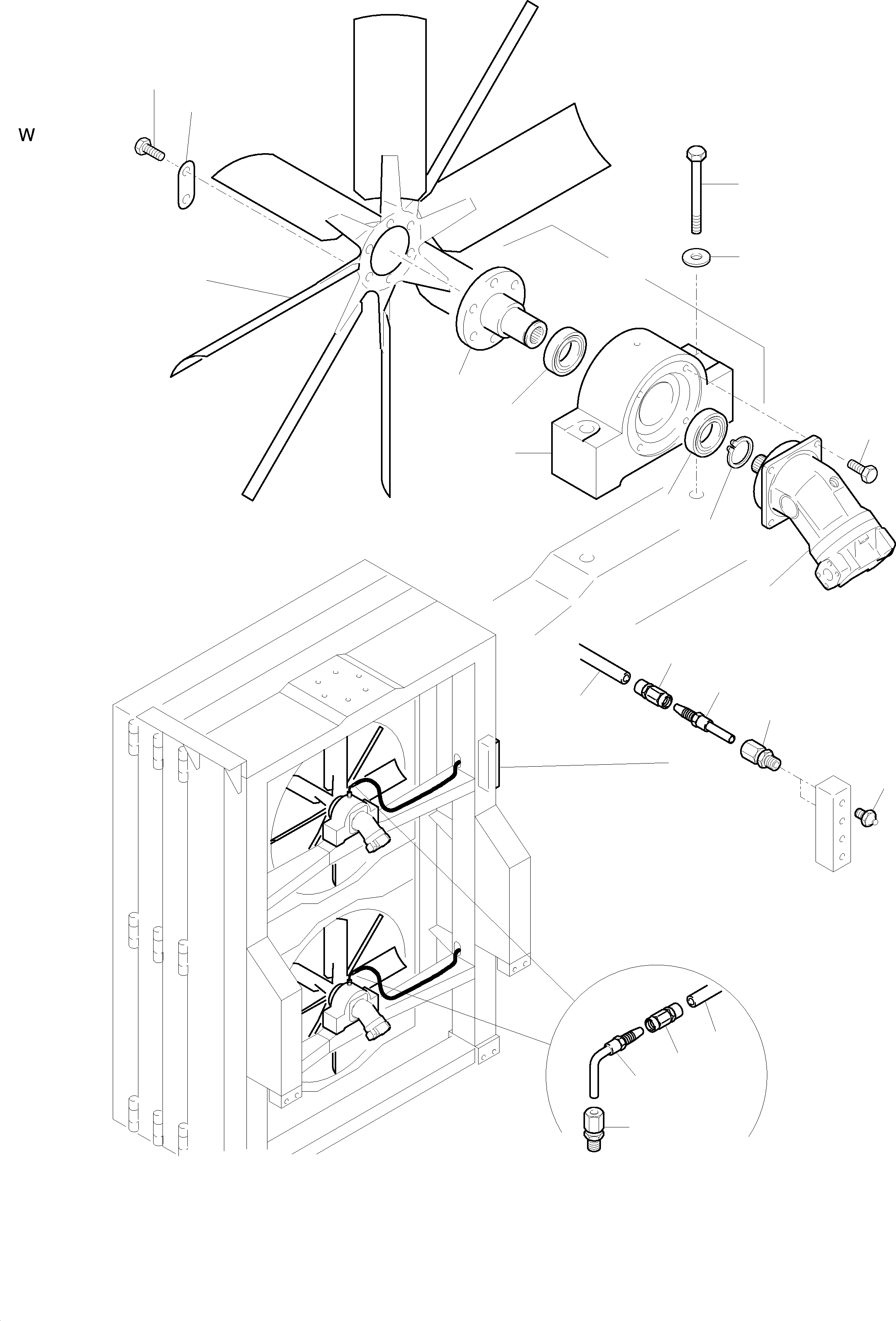

Komatsu parts book diagram for H455-SD S/N 15009: OIL COOLER - FAN DRIVE

01 02 03 04 05 06 07 08 08 09 10 11 12 13 14 15 15 16 17 18 19 19

	#	Part Number	Partname	Quantity	Options	Reference
	01	307 869 99	Bolt	8	InternBDB: M12x35 \| InternKon: 574 500 40 / 23
	02	409 978 40	Locking plate	4	InternKon: 574 500 40 / 16
	03	461 548 40	Fan	2	InternBDB: 44" \| InternKon: 574 500 40 / 12
	04	372 351 40	Fan mounting assy.	2	InternKon: 574 500 40 / 10
	05	395 511 40	Bearing retainer	2	InternKon: 372 351 40 / 1
	06	606 673 40	Shaft	2	InternKon: 372 351 40 / 2
	07	342 555 99	Circlip	2	InternKon: 372 351 40 / 3
	08	368 252 99	Ball bearing	4	InternBDB: 6212 RS /625 \| InternKon: 372 351 40 / 4
	09	308 337 99	Bolt	4	InternBDB: M24x180 \| InternKon: 574 500 40 / 24
	10	316 213 99	Washer	4	InternBDB: Ш 25 \| InternKon: 574 500 40 / 28
	11		Fan motor	2	InternBDB: 358 666 40 \| InternKon: 574 500 40 / 11	090-1368
	12	307 806 99	Bolt	8	InternBDB: M12x40 \| InternKon: 574 500 40 / 21
	13	370 500 99	Union	2	InternBDB: CL 6 \| InternKon: 574 500 40 / 42
	14	515 029 40	Hose fittings	2	InternKon: 574 500 40 / 43
	15	515 028 40	Hose fittings	4	InternKon: 574 500 40 / 44
	16	515 027 40	Hose fittings	2	InternKon: 574 500 40 / 46
	17	004 860 98	Grease nipple	2	InternBDB: AR 1/4 \| InternKon: 574 500 40 / 47
	18	372 456 99	Union	2	InternBDB: GE 6 SR 1/4" \| InternKon: 574 500 40 / 48
	19	576 160 40	Hose DN 4 Bulk ware, state length required	-2	InternKon: 574 500 40 / 45

Komatsu H455-SD S/N 15009 parts catalog PDF

OIL COOLER - FAN DRIVE (515-1812a) in H455-SD S/N 15009. Diagram image and parts list.
