01 |
674 941 40
|

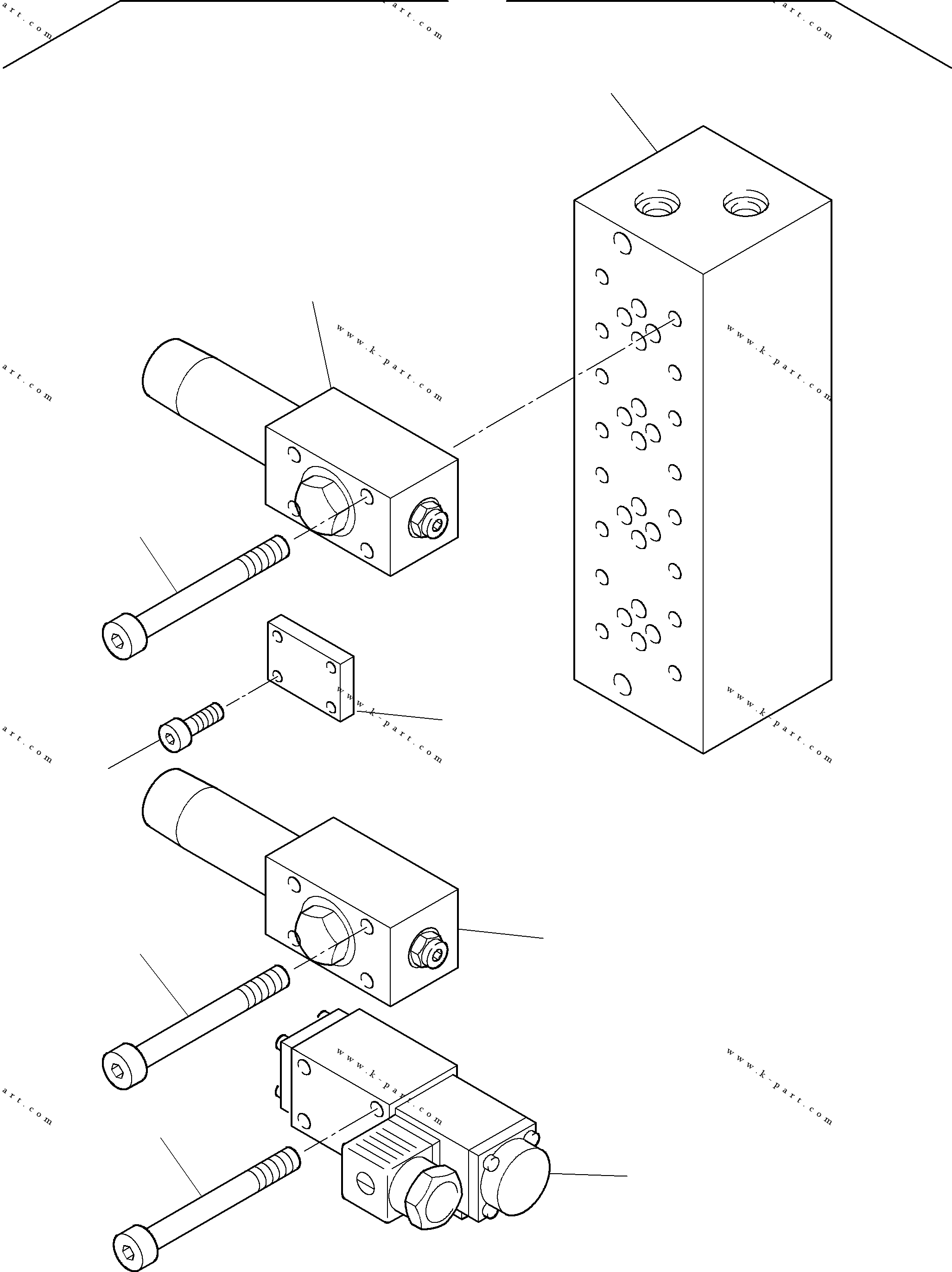

Multi station manifold block assy. |
1 |
|
|
|
|
02 |
324 671 40
|
Multi station manifold block |
1 |
InternBDB: Rexroth 4 HSR 06-2X /01 D | InternKon: 674 941 40 / 1
|
|
|
|
03 |
323 448 40
|
Pressure reducing valve |
2 |
InternBDB: Rexroth DR 6 DP 2-5X /25 Y | InternKon: 674 941 40 / 2
|
|
|
|
04 |
490 080 40
|
Plate |
1 |
InternBDB: Rexroth 316 232
|
|
|
|
05 |
515 119 40
|
Pressure control valve |
1 |
InternBDB: Rexroth STD-0095 | InternKon: 674 941 40 / 4
|
|
|
|
06 |
319 174 99
|
Bolt |
8 |
InternBDB: M5x50 | InternKon: 674 941 40 / 5
|
|
|
|
20 |
319 553 99
|
Screw |
4 |
InternBDB: M5x60 /912
|
|
|
|
21 |
763 692 73
|
Pin |
2 |
InternBDB: 164 330
|
|
|
|
22 |
319 552 99
|
Screw |
4 |
InternBDB: M5x12 /912 8.8
|
|
|
|
23 |
515 210 40
|
Valve plug |
4 |
InternBDB: Murr MSUD-1U24-15-B 246 340
|
|
|
|
24 |
348 648 40
|
Seal |
2 |
InternBDB: Hirschmann GDM 3-17
|
|
|
|
25 |
763 687 73
|
Cover |
1 |
InternBDB: 318 095
|
|
|
|
26 |
763 688 73
|
Compression spring |
2 |
InternBDB: 013 029
|
|
|
|
27 |
763 689 73
|
Spring plate |
2 |
InternBDB: 170 977
|
|
|
|
28 |
763 690 73
|
Shim ring |
1 |
InternBDB: 006 951
|
|
|
|
29 |
763 691 73
|
Piston |
1 |
InternBDB: 170 990
|
|
|
|
30 |
971 231
|
O-ring |
6 |
|
|
|
|
31 |
500 287 98
|
O-ring |
32 |
InternBDB: 9,25x1,78
|
|
|
|
32 |
|
Adjustment |
1 |
InternBDB: 325 215
|
|
|
|
33 |
|
Compression spring |
1 |
InternBDB: 015 804
|
|
|
|
34 |
|
Spring plate |
1 |
InternBDB: 695 195
|
|
|
|
35 |
|
Housing |
1 |
InternBDB: 682 809
|
|
|
|
36 |
|
Piston |
1 |
InternBDB: 171 469
|
|
|
|
37 |
|
Jet |
1 |
InternBDB: 175 523
|
|
|
|
38 |
|
Cartridge assy. |
1 |
InternBDB: 326 812
|
|
|
|
39 |
|
Plug |
1 |
InternBDB: 003 444
|
|
|
|
40 |
504 260 98
|
O-ring |
1 |
InternBDB: 9,25x1,78 /007 111
|
|
|
|
41 |
|
Valve seat |
1 |
InternBDB: 684 925
|
|
|
|
42 |
|
Ball |
1 |
InternBDB: 004 975
|
|
|
|
43 |
|
Spring plate |
1 |
InternBDB: 162.318
|
|
|
|
44 |
|
Compression spring |
1 |
InternBDB: 006 090
|
|
|
|
45 |
767 080 73
|
O-ring |
1 |
InternBDB: 15,6x1,78 /009 091
|
|
|
|
46 |
973 707 73
|
Support ring |
1 |
InternBDB: 14,73x1,35 /012 124
|
|
|
|
47 |
757 389 73
|
O-ring |
4 |
InternBDB: 9,81x1,5x1,78 /017 453
|
|
|
|
48 |
|
Plug |
1 |
InternBDB: 684 924
|
|
|
|
49 |
319 125 99
|
Screw |
4 |
InternBDB: M5x30 /912 8.8
|
|
