H455-SD S/N 15009

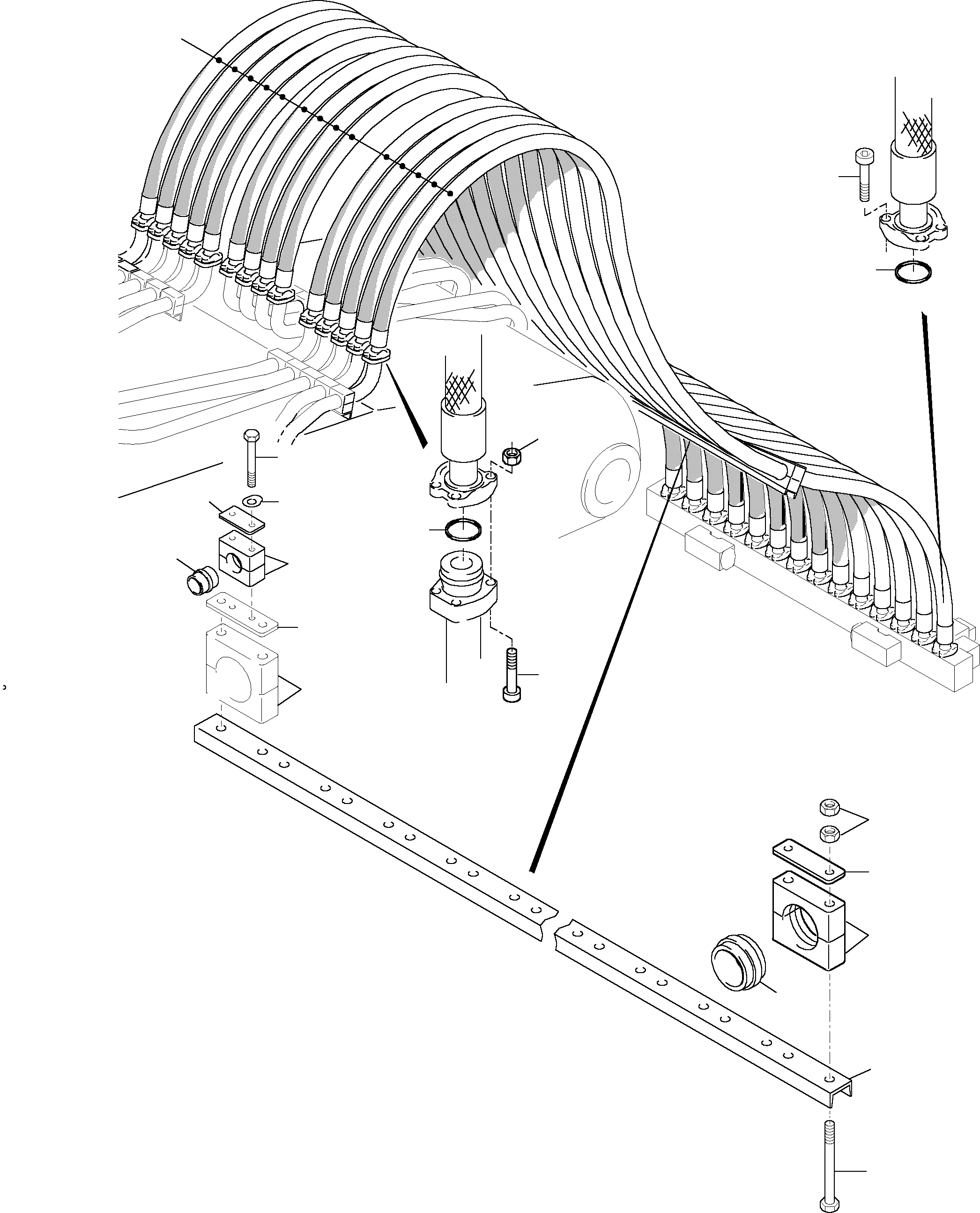

Komatsu parts book diagram for H455-SD S/N 15009: HOSES ASSY. - MANIFOLD- BOOM

01 02 02 03 03 04 05 05 06 06 07 08 09 10 11 12 13 14 15

	#	Part Number	Partname	Quantity	Options	Reference
	01	512 544 98	Hose assy. DN 50x4500	14	InternBDB: 350 FS 2 FS 2 \| InternKon: 647 801 40 / 41
	02	385 243 40	Flange seal	28	InternBDB: 2 NBR 90 \| InternKon: 647 801 40 / 12
	03	319 314 99	Bolt	112	InternBDB: M20x70 /912 10.9 \| InternKon: 647 801 40 / 18
	04	647 879 40	Retainer	1	InternKon: 647 880 40 / 1
	05	504 853 98	Half clamp	28	InternBDB: S-5-E \| InternKon: 647 880 40 / 3
	06	500 398 98	Plate	14	InternBDB: S-DP-A-5 \| InternKon: 647 880 40 / 4
	07	504 854 98	Insert	14	InternBDB: S-5-72 \| InternKon: 647 880 40 / 5
	08	502 618 98	Half clamp	2	InternBDB: S-3-E \| InternKon: 647 880 40 / 6
	09	534 004 99	Plate	1	InternBDB: S-DP-A-3 \| InternKon: 647 880 40 / 7
	10	504 926 98	Insert	1	InternBDB: S-3-32 \| InternKon: 647 880 40 / 8
	11	304 357 99	Bolt	28	InternBDB: M16x160 /931 10.9 \| InternKon: 647 880 40 / 9
	12	334 601 99	Nut	28	InternBDB: M 16 /985 \| InternKon: 647 880 40 / 10
	13	308 584 99	Bolt	2	InternBDB: M10x90 /931 8.8 \| InternKon: 647 880 40 / 11
	14	507 037 98	Nut	2	InternBDB: M 10 /985 8 \| InternKon: 647 880 40 / 12
	15	504 662 98	Nut	56	InternBDB: M 20 / 934 / 10

Komatsu H455-SD S/N 15009 parts catalog PDF

HOSES ASSY. - MANIFOLD- BOOM (515-1856a) in H455-SD S/N 15009. Diagram image and parts list.
