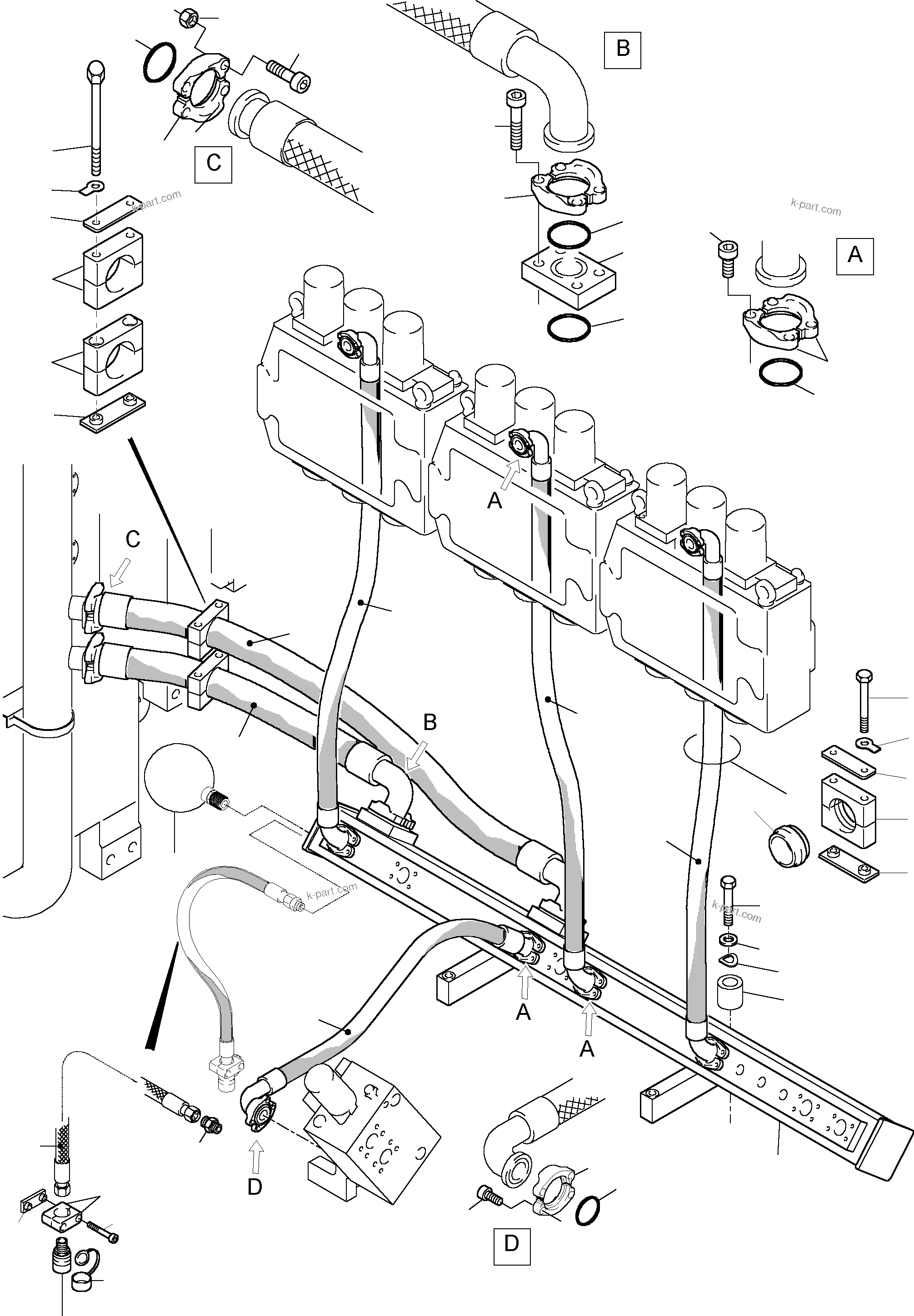

RETURN LINES, CONTROLBLOCKS, BULLCLAM BUCKET | H455-SD S/N 15009

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

H455-SD S/N 15009

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	513 376 98	Hose assy. DN 50 x 990	3	InternBDB: FL 2-45 / FL 2-90 \| InternKon: 574 555 40 / 36
?	385 243 40	Flange seal	7	InternBDB: 2 NBR 90 \| InternKon: 574 555 40 / 24
?	145 823 40	Half flange	14	InternBDB: 50 /210 \| InternKon: 574 555 40 / 30
?	319 272 99	Bolt	32	InternBDB: M12x30 /912 10.9 \| InternKon: 574 555 40 / 31
?	081 495 40	Quick disconnect coupling	1	InternBDB: 61-6511-620-022 \| InternKon: 647 801 40 / 98
?	081 496 40	Protection cap	1	InternBDB: 63-6591-620-051 \| InternKon: 647 801 40 / 99
?	340 086 99	Seal ring	1	InternBDB: A30x38 /7603 \| InternKon: 647 801 40 / 42
?	513 396 98	Hose assy. DN 50 x 740	1	InternBDB: FL 2 / Fl 2 1/2-90 \| InternKon: 637 573 40 / 36
?	513 612 98	Hose assy. DN 70 x 1360	1	InternBDB: FL 3 / FL 3-90 \| InternKon: 647 801 40 / 16
?	513 613 98	Hose assy. DN 70 x 2070	1	InternBDB: FL 3 / FL 3-90 \| InternKon: 647 801 40 / 17
?	501 543 98	O-ring	6	InternBDB: 85,32x3,53 B NB 80 \| InternKon: 647 801 40 / 32
?	678 267	Half flange	8	InternBDB: 75 /210
?	308 422 99	Bolt	8	InternBDB: M16x150 /933 8.8
?	307 826 99	Bolt	8	InternBDB: M16x50 /933 8.8 \| InternKon: 647 801 40 / 35
?	334 601 99	Nut	8	InternBDB: M 16 /985 8 \| InternKon: 647 801 40 / 36
?	145 824 40	Half flange	2	InternBDB: 63 / 210
?	007 697 98	O-ring	1	InternBDB: 69.4 x 3,53
?	903 907 40	Manifold	1	InternKon: 574 555 40 / 3
?	502 538 98	Bolt	4	InternBDB: M20x150 / 10.9 \| InternKon: 653 660 40 / 44
?	316 621 99	Washer	4	InternBDB: Ш 21
?	513 867 98	Hose assy. DN 20x1800	1	InternBDB: DOL 22 / DOL 22 \| InternKon: 647 801 40 / 96
?	374 409 99	Union	1	InternBDB: L22 B-M / 390197
?	674 990 40	plate	2
?	509 064 98	Half clamp	8	InternBDB: S-5-E \| InternKon: 647 801 40 / 63
?	500 398 98	Plate	4	InternBDB: S-DP-A-5 \| InternKon: 647 801 40 / 64
?	505 212 98	Insert	4	InternBDB: S-5-68 \| InternKon: 647 801 40 / 65
?	500 399 98	Weld on plate	4	InternBDB: S-DP-A-5 \| InternKon: 647 801 40 / 66
?	343 008 99	Washer	8	InternBDB: 17 /93 \| InternKon: 647 801 40 / 68
?	308 641 99	Bolt	8	InternBDB: M16x130 /931 8.8 \| InternKon: 647 801 40 / 67
?	511 718 98	Half clamp	8	InternBDB: S-6-E \| InternKon: 647 801 40 / 81
?	511 196 98	Plate	4	InternBDB: S-DP-A-6 \| InternKon: 647 801 40 / 82
?	511 194 98	Weld on plate	4	InternBDB: S-DP-A-5 \| InternKon: 647 801 40 / 83
?	343 010 99	Washer	8	InternBDB: Ш 21 /93 \| InternKon: 647 801 40 / 85
?	308 679 99	Bolt	8	InternBDB: M20x190 /931 8.8 \| InternKon: 647 801 40 / 84
?	509 058 98	Half clamp	8	InternBDB: L-3-G-23 \| InternKon: 647 801 40 / 77
?	533 992 98	Weld on plate	4	InternBDB: L-AP-K3 \| InternKon: 647 801 40 / 79
?	319 133 99	Bolt	4	InternBDB: M6x30 /912 8.8 \| InternKon: 647 801 40 / 80
?	898 106 40	Pulsation absorber	1
?	515 713 98	Elastic Washer	4	InternBDB: 17 /93 \| InternKon: 647 801 40 / 53
?	899 929 40	Sleeve	4	InternKon: 647 801 40 / 62
